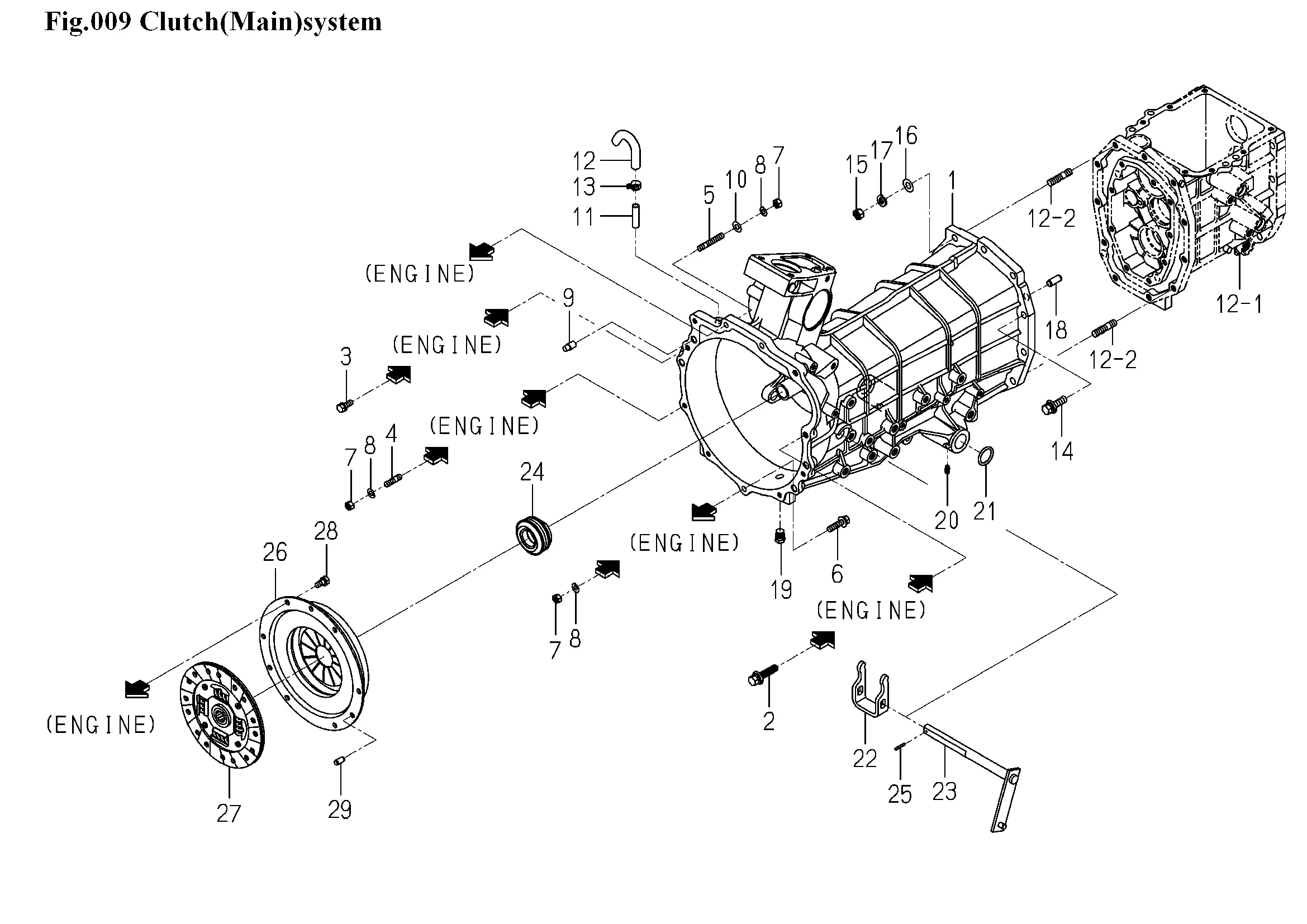

Kupplungshehäuse, Kupplung
Ersatzteile (29 Teile)
1
HOUSING/CLUTCH
2
V211-661-004-50
3
V211-560-802-00
4
STUD/M8X20/7T
5
V251-340-804-00
6
V211-660-803-50
7
NUT/M8/7T
8
WASHER,SP/M8
9
PIN,KNOCK
10
WASHER,PL/M8
11
PIPE,BREATHER
12
1716-501-006-10
13
J062-138-148-00
14
BOLT,SP/M10X35/7T
15
V304-460-010-00
16
V411-260-010-00
17
WASHER,SP/M10
18
PIN,ST,B/10X24
19
PLUG/SCREW/SEAL
20
NIPPLE,GREASE
21
O-RING/1A,P25
22
FORK
23
ARM/CLUTCH COMP
24
RBB/CLUTCH/RELEASE
25
PIN,SPRING/3X20 W
26
COVER/CLUTCH/18 COMP
27
DISC/CLUTCH/180 COMP
28
V211-260-801-60
29
PIN,ST,B/8X16
