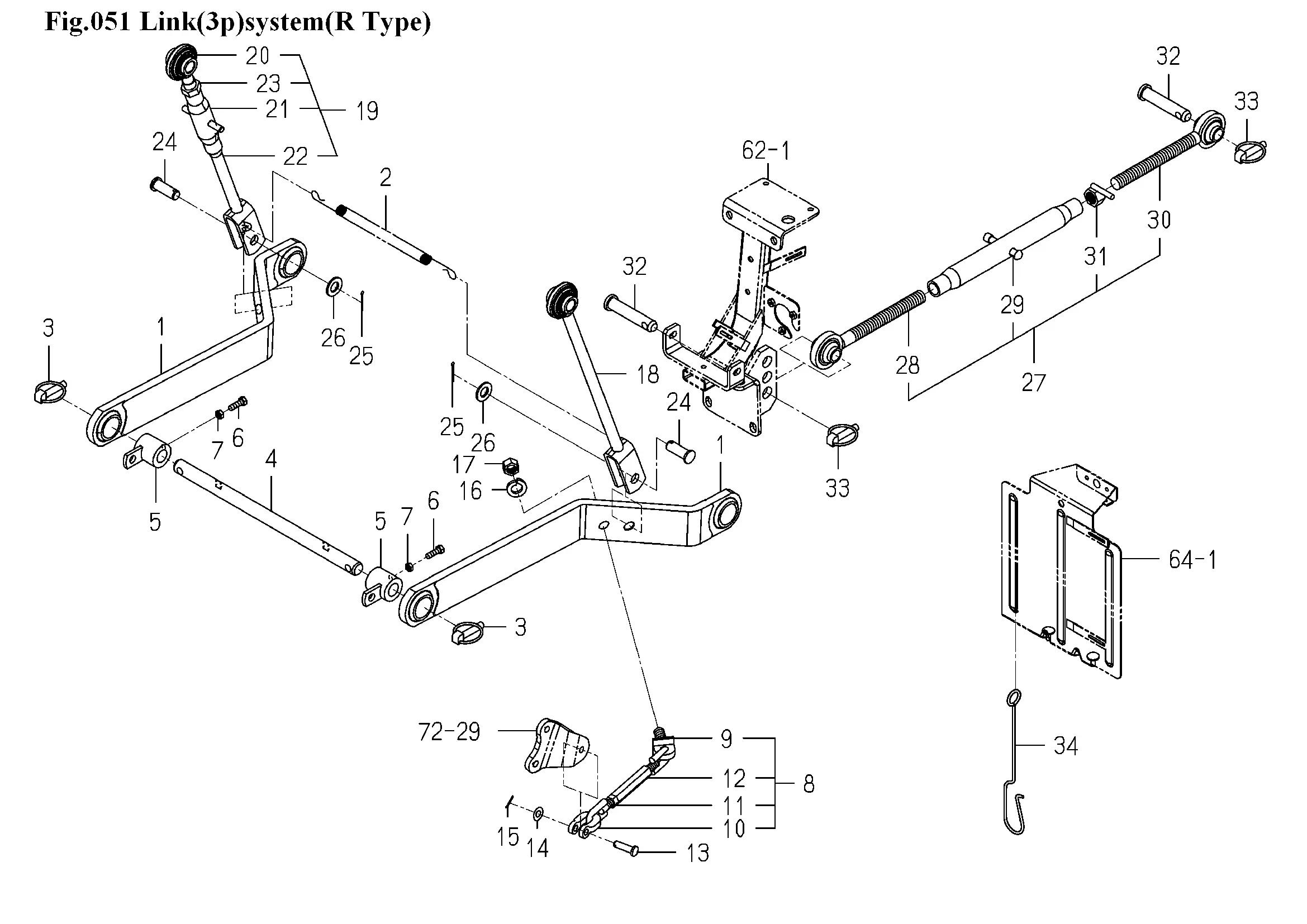

Heckaushebung
Ersatzteile (34 Teile)
1
LINK/LOWER COMP
2
SPRING
3
LINKPIN
4
PIN/22X404
5
HUB/SPACER COMP
6
V201-360-802-50
7
V305-260-008-00
8
CHAIN/CHECK ASSY
9
1776-514-510-10
10
1776-514-530-10
11
1776-514-501-00
12
BUCKLE/TURN/M12
13
PIN/10X32
14
V411-260-010-00
15
PIN,SPLIT/2.5X20
16
WASHER,SP/M16
17
V334-460-016-00
18
ROD/LIFT/LH COMP
19
ROD/LIFT/RH ASSY
20
ROD/LIFT/RH/B COMP
21
BACKLE/TURN COMP
22
1776-514-270-00
23
1776-514-241-00
24
PIN/16X44
25
PIN,SPLIT/4X30XSUS
26
V411-260-016-00
27
LINK/TOP ASSY
28
LINK/TOP/LH COMP
29
BACKLE/TURN COMP
30
LINK/TOP/RH COMP
31
1776-514-350-00
32
PIN/19X94
33
LINKPIN
34
HOOK,TOP LINK
