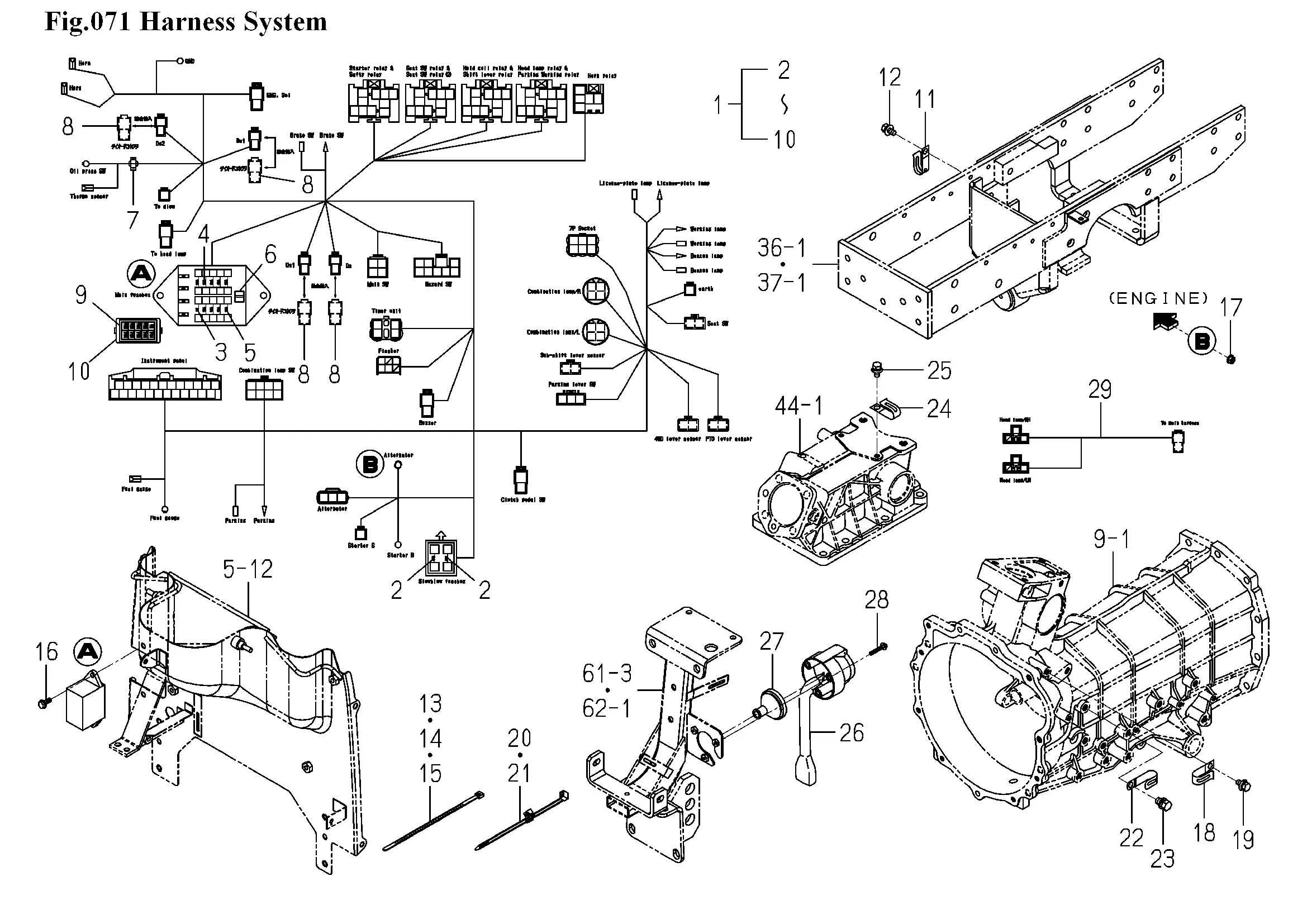

Kabelbaum
Ersatzteile (29 Teile)
1
HARNESS/MAIN/F3 ASSY
2
FUSE/SLOW BLOW/40A
3
FUSE/BLADE/32V05A
4
FUSE/BLADE/32V10A
5
FUSE/BLADE/32V15A
6
TOOL/FUSE
7
1809-690-205-00
8
DIODE/3A
9
1776-690-401-00
10
COVER/FUSEBOX
11
HOLDER/JE/9-9
12
BOLT,SP/M8X16
13
1342-402-006-00
14
BAND,WIRE/140
15
BAND,WIRE/140
16
FLANGEBOLT/M6X16
17
NUT/FLANGE/M6
18
HOLDER/JE/9-9
19
BOLT,SP/M8X16
20
1560-666-004-00
21
1560-666-004-00
22
CLAMP,HARNESS
23
V211-261-001-60
24
HOLDER/JE/9-9
25
BOLT,SP/M8X16
26
1807-652-510-00
27
1650-654-036-00
28
V120-265-003-00
29
1776-690-410-10
