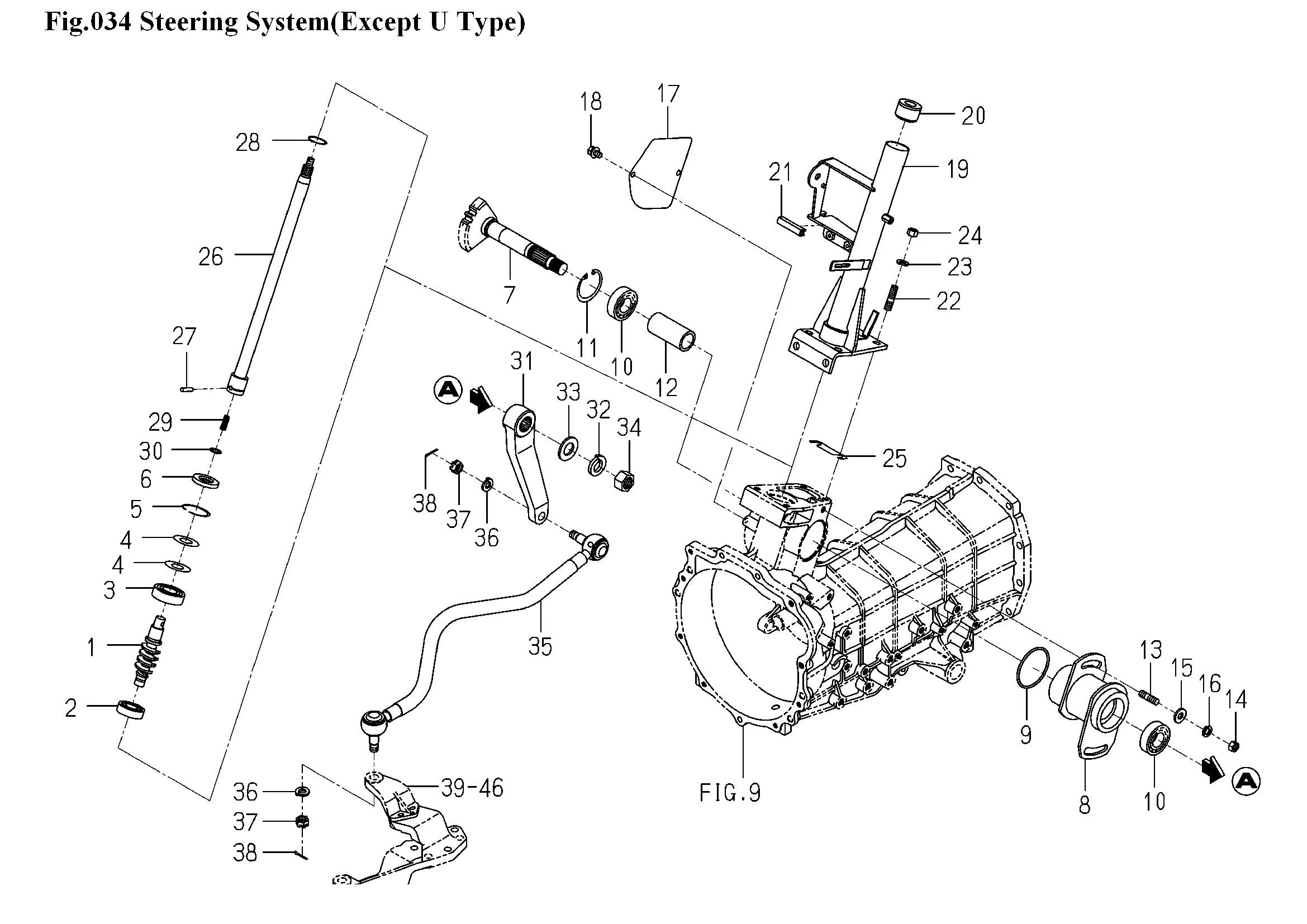

Lenkung
Ersatzteile (38 Teile)
1
1776-406-004-40
2
BEARING,RB/7202
3
BEARING,RB/7004
4
SHIM/20X42X01
5
RING,SNAP/42 C
6
SEAL,OIL/VC20426
7
GEAR/HELICAL/28 COMP
8
1776-406-210-10
9
O-RING/1B,G65
10
BEARING/BALL
11
RING,SNAP/52 C
12
1776-406-003-10
13
V252-341-002-00
14
V304-460-010-00
15
1337-721-002-00
16
WASHER,SP/M10
17
1776-406-271-10
18
BOLT,SP/M8X16
19
1776-406-280-10
20
1429-406-205-10
21
PAD/50
22
STUD/M10X25/7T
23
WASHER,SP/M10
24
V304-460-010-00
25
1776-406-008-00
26
SHAFT/STEERING COMP
27
PIN/PARALLEL/06X24
28
RING,SNAP/28 C
29
SPRING/HC022
30
O-RING/1A,S16
31
ARM/PITMAN
32
WASHER,SP/M20
33
WASHER,PL/M20
34
V304-460-020-00
35
ROD/DRAG COMP
36
WASHER,SP/M12
37
NUT,CASTLE/M12 P1.25
38
V500-163-002-00
