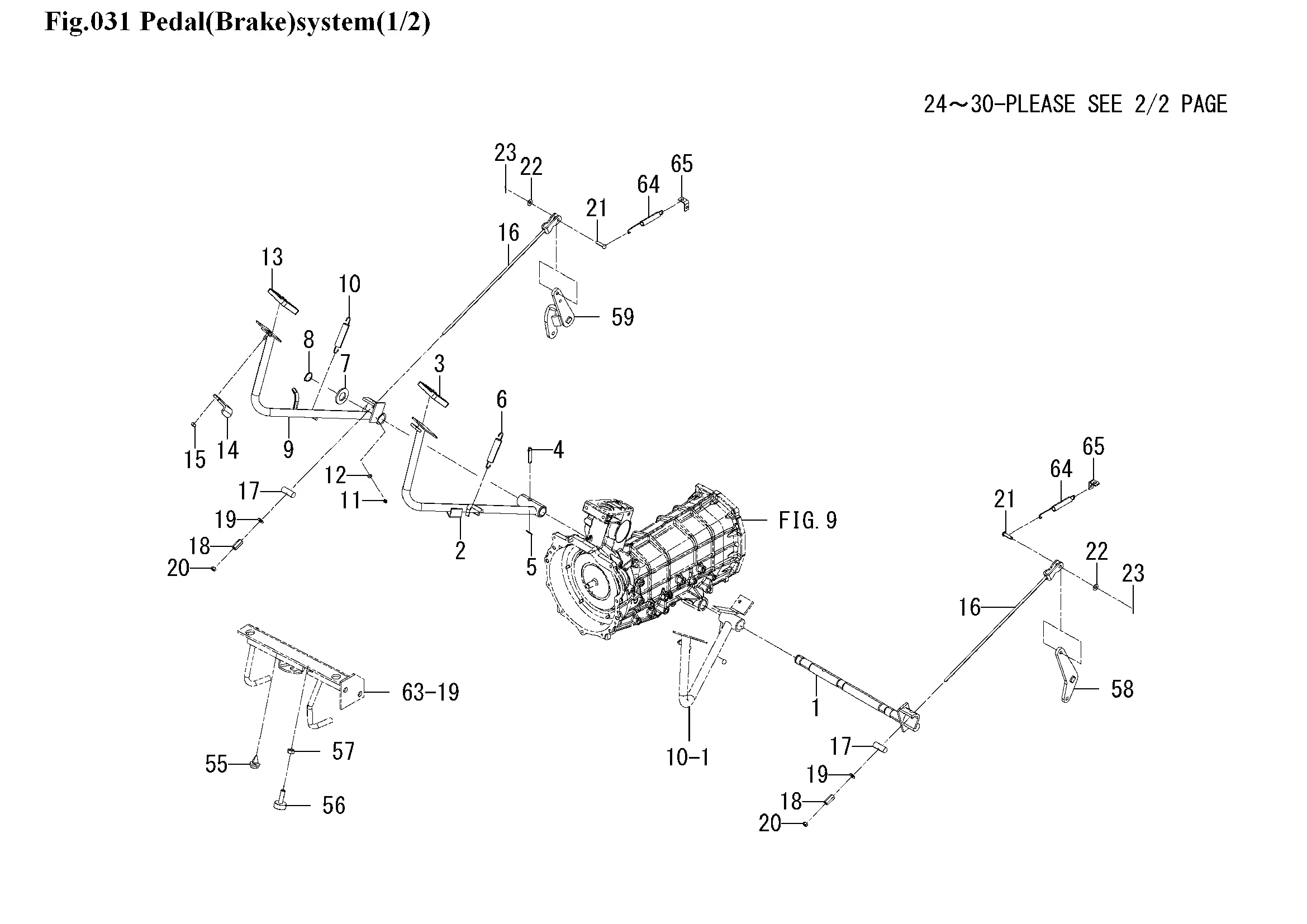

Pedal, Bremse
Ersatzteile (65 Teile)
1
1776-312-420-10
2
1776-312-410-10
3
PAD
4
1776-312-032-00
5
PIN,SPLIT/2.5X20
6
SPRING/HE106
7
WASHER,PL/M24
8
RING,SNAP/25 C
9
1776-312-220-10
10
SPRING/HE106
11
NIPPLE,GREASE
12
V401-160-006-00
13
PAD
14
1776-312-013-10
15
1719-312-001-00
16
1776-312-300-10
17
1776-312-006-00
18
3820-412-051-00
19
WASHER,PL/M8
20
NUT/M8
21
PIN,YOKE A
22
WASHER,PL/M8
23
PIN,SPLIT/2X20
24
1740-313-300-10
25
ROD
26
SPRING
27
BUTTON
28
GRIP/ORANGE
29
BOLT,SP/M8X20
30
1776-312-500-10
31
FLANGEBOLT/M8X16
32
1776-312-490-00
33
ROD/70 COMP
34
TURNBUCKLE/M8
35
NUT/M8
36
NUT/LH/M08
37
PIN/08X19
38
WASHER,PL/M8
39
PIN,SPLIT/2X20
40
1776-312-041-10
41
1776-312-440-10
42
BUSH
43
NIPPLE,GREASE
44
V401-160-006-00
45
1776-312-460-10
46
PIN,TAPER/8X50
47
1738-312-005-10
48
1738-312-006-10
49
ROD/M12X66
50
NUT/M12
51
2146-360-014-00
52
PIN/10X25
53
V411-260-010-00
54
PIN,SPLIT/2.5X20
55
RUBBER,CUSHION
56
INSULATOR
57
NUT/M8
58
1776-312-031-00
59
1776-312-520-10
60
NUT/M12
61
WASHER,SP/M12
62
V411-260-012-00
63
COLLAR/22X32X35
64
SPRING/HE110
65
1738-312-009-00
