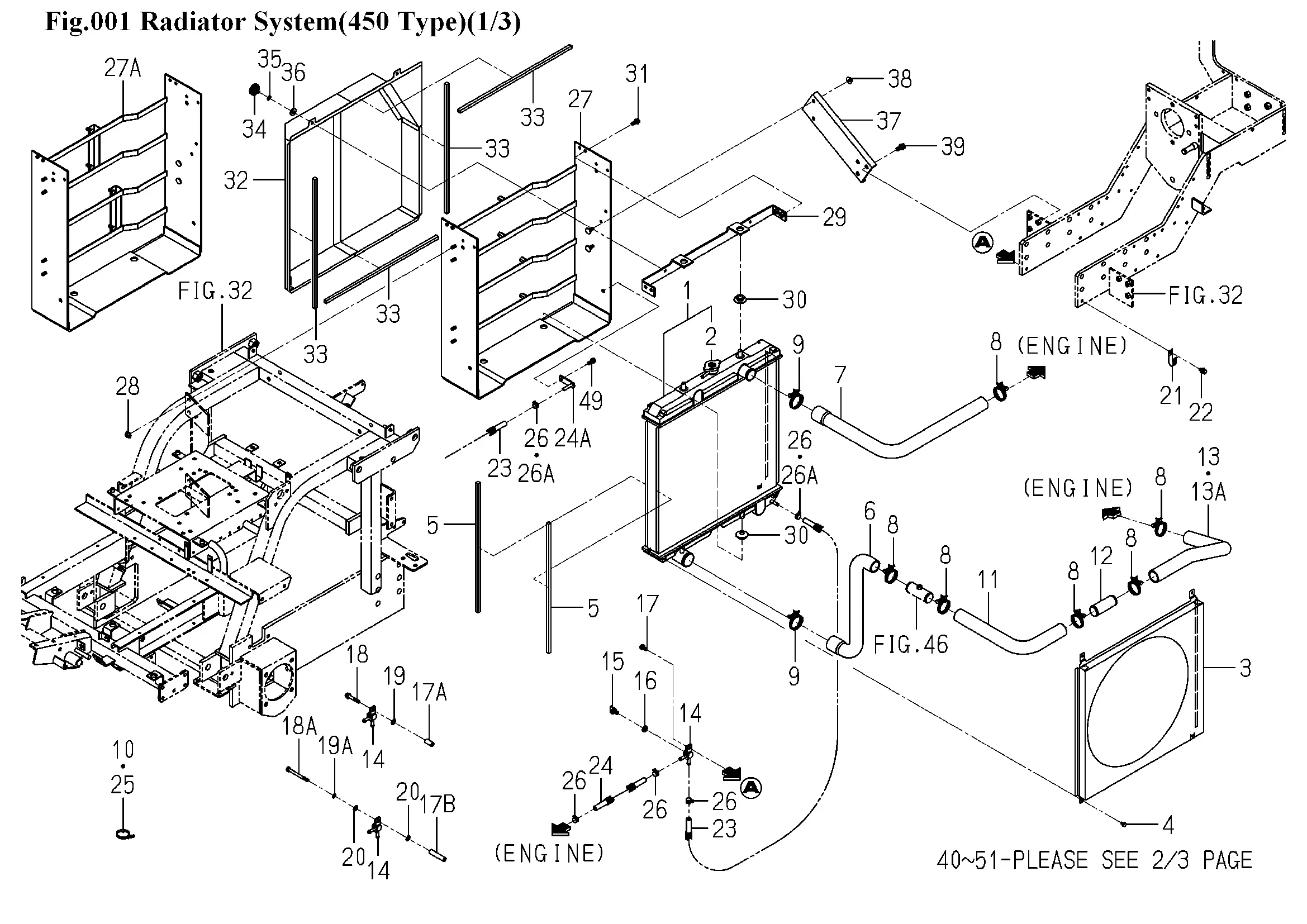

Kühler
Ersatzteile (94 Teile)
1
Kühler
2
CAP
3
1809-102-002-00
4
FLANGEBOLT/M6X12
5
INSULATOR
6
Auslassschlauch, Kühler
7
Einlassschlauch, Kühler
8
CLAMP/WIRE/36-44
9
CLAMP/WIRE/40-48
10
1342-402-006-00
11
Auslassschlauch, Kühler
12
PIPE
13
Auslassschlauch, Kühler
13A
1809-102-012-10
14
CONNECTOR
15
1424-101-203-00
16
PACKING
17
FLANGEBOLT/M8X16
17A
Buchse 09X13X28
17B
1771-404-001-10
18
V211-660-805-00
18A
V201-260-808-50
19
WASHER,PL/M8
19A
WASHER,SP/M8
20
WASHER,PL/M8
21
HOLDER/JE/9-9
22
BOLT(SP/M8X16)
23
HOSE/290 ASSY
24
1809-102-019-00
24A
1809-102-330-00
25
BAND,WIRE/140
26
CLIP/HOSE/14.7-15.9
26A
CLIP/HOSE/14.7-15.9
27
1809-102-210-20
27A
1809-102-210-30
28
V363-260-008-00
29
1809-102-240-00
30
BUSH,LEVER
31
V231-360-802-00
32
Kühlerabdeckung
33
INSULATOR
34
3623-820-013-10
35
WASHER,SP/M8
36
WASHER/24X9X3.2
37
1809-102-003-00
38
V363-260-008-00
39
V231-361-002-00
40
RESERVETANK ASSY
41
CAP
42
PACKING
43
1690-102-214-00
44
1690-102-215-00
45
1690-102-216-00
46
HOSE/RUBBER
47
BAND,WIRE/140
48
1809-102-220-00
48A
1809-102-220-10
49
V231-360-802-00
50
FAN/COOLING
51
SPACER,FAN
52
FLANGEBOLT/M6X30
53
SHAFT/FAN
54
BEARING/BALL
55
COLLOR/25X34X03
56
RING,SNAP/52 C
57
NUT,ADAPTER/AN05
58
WASHER,ADAPTER/AW05
59
FLANGEBOLT/M10X30
60
V304-460-010-00
61
WASHER,SP/M10
62
METAL/FAN
63
FLANGEBOLT/M8X25
64
NUT/M8/7T
65
WASHER,SP/M8
66
COOLER/OIL
67
COOLER/OIL ASSY
68
FLANGEBOLT/M8X16
68A
BOLT,SP/M8X20
68B
Kombimutter-M8
69
Hydraulikschlauch
70
HOSE/14X22X1200
71
HOSE/DRAIN/MOTER
72
3814-350-002-00
73
J061-116-025-00
74
1800-508-042-00
75
1809-102-022-00
76
V211-360-801-20
77
1809-102-025-00
77A
1809-102-025-10
78
1741-102-002-00
78A
INSULATOR
79
1809-102-026-00
79A
INSULATOR
80
SEAL/45X50X80
