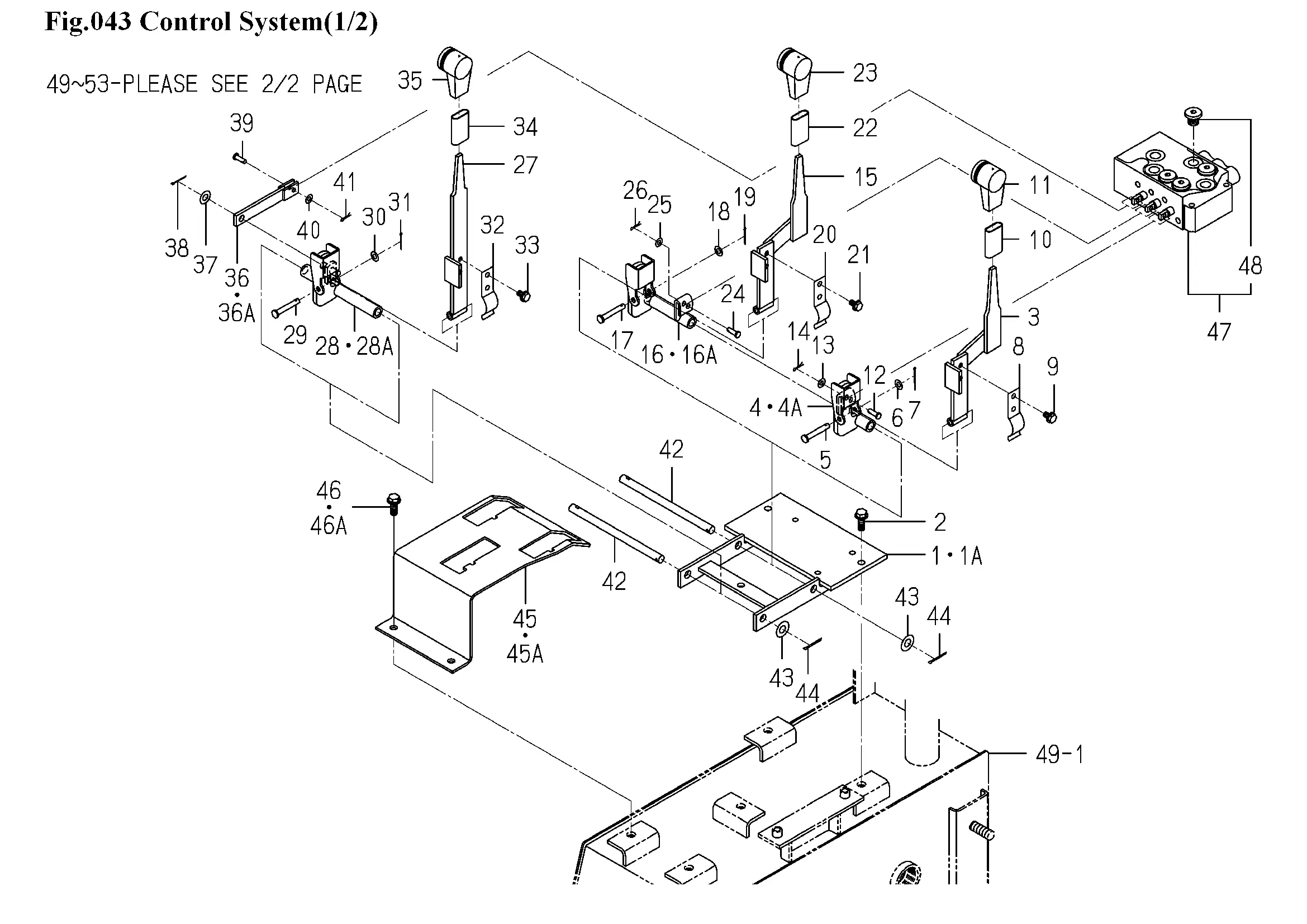

Hebel, Hydr. Steuergerät
Ersatzteile (81 Teile)
1
1809-503-210-00
1A
BRACKET/VALVE COMP
2
V231-360-802-00
3
LEVER/COLLECTOR COMP
4
1809-503-230-00
4A
ARM/LIFT/COLLECTOR
5
PIN/6X42
6
V411-260-006-00
7
PIN,SPLIT/2X20
8
SPRING/PLATE
9
FLANGEBOLT/M6X10
10
INSULATOR/LEVER/PTO
11
GRIP
12
PIN/05X17
13
V411-260-005-00
14
PIN/SNAP
15
LEVER/COLLECTOR COMP
16
1809-503-240-00
16A
ARM/DUMP/COLLECTOR
17
PIN/6X42
18
V411-260-006-00
19
PIN,SPLIT/2X20
20
SPRING/PLATE
21
FLANGEBOLT/M6X10
22
INSULATOR/LEVER/PTO
23
GRIP
24
PIN/05X17
25
V411-260-005-00
26
PIN/SNAP
27
1809-503-220-00
28
1809-503-250-00
28A
ARM/LIFT COMP
29
PIN/6X42
30
V411-260-006-00
31
PIN,SPLIT/2X20
32
SPRING/PLATE
33
FLANGEBOLT/M6X10
34
INSULATOR/LEVER/PTO
35
GRIP
36
1809-503-270-00
36A
1809-503-270-10
37
WASHER,PL/M8
38
PIN,SPLIT/2X20
39
PIN/05X17
40
V411-260-005-00
41
PIN/SNAP
42
PIN/10X148
43
V411-260-010-00
44
V500-162-502-50
45
1809-503-002-10
45A
PLATE/GUIDE/LEVER
46
V231-360-802-00
46A
V211-660-802-00
47
1728-508-280-10
48
PLUG(PF1/4)
49
V210-360-603-50
50
V301-260-006-00
51
V210-360-602-00
52
HOSE/PS-P ASSY
53
ADAPTER/L/G1/4 ASSY
54
O-RING/1B,P11
55
ADAPTER/G1/4 ASSY
56
O-RING/1B,P11
57
8561-501-010-00
58
ELBOW/90DEG/L ASSY
59
O-RING/1B,P11
60
ADAPTER/L/G1/4 ASSY
61
O-RING/1B,P11
62
HOSE/VT-TE ASSY
63
ADAPTER/T
64
HOSE/TE-MT ASSY
65
HOSE/TE-MC ASSY
66
ADAPTER/G3/8 ASSY
67
ADAPTER/G3/8
68
ADAPTER/G3/8ASSY
69
O-RING/1B,P14
70
ADAPTER/1/4X3/8 ASSY
71
O-RING/1B,P14
72
ELBOW/90DEG ASSY
73
O-RING/1B,P14
74
HOSE/HYDRO/1500 ASSY
