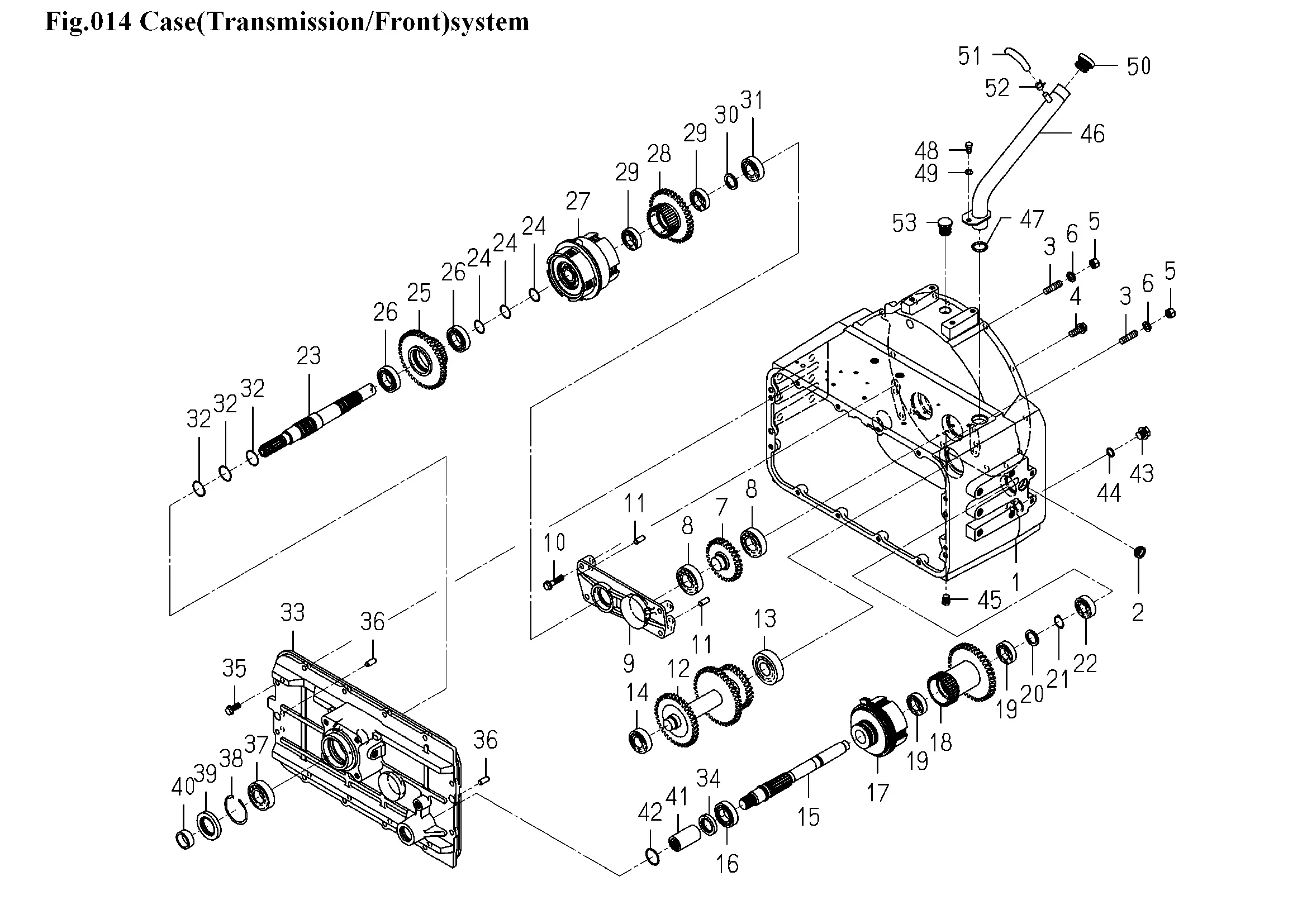

Getriebegehäuse
Ersatzteile (53 Teile)
1
CASE/TRANSMISSION
2
GAUGE/LEBEL
3
STUD/M12X25/7T
4
BOLT/S
5
V304-460-012-00
6
WASHER,SP/M12
7
GEAR/HELICAL/28
8
BEARING,RB/6206
9
1809-201-003-00
10
V231-361-004-00
11
PIN,ST,B/10X24
12
1809-201-210-00
13
BEARING,RB/6306
14
BEARING,RB/6205
15
SHAFT/PTO/SIDE
16
BEARING/BALL
17
CLUTCH/MOWER ASSY
18
GEAR/HELICAL/39
19
BEARING/BALL
20
COLLAR/26X35X03
21
RING/SNAP/CS25
22
V600-110-620-40
23
SHAFT/CENTER COMP
24
RING/30
25
GEAR/HELICAL/40
26
BEARING/BALL
27
CLUTCH/BLOWER ASSY
28
GEAR/HELICAL/36
29
BEARING/BALL
30
COLLAR/26X35X03
31
BEARING,RB/6205
32
RING/SEAL/35X02
33
COVER/MISSION/PTO
34
SEAL,OIL/TC30508
35
V231-361-002-50
36
PIN,ST,B/10X24
37
BEARING,RB/6206
38
RING,SNAP/R62
39
SEAL/OIL
40
SLEEVE
41
COUPLING/23X34X60
42
O-RING/1A,S34
43
PLUG,DRAIN
44
O-RING/1A,P16
45
PLUG/SCREW/SEAL
46
PIPE/FILLER/OIL COMP
47
O-RING/1A,P26
48
V201-260-801-6B
49
WASHER,SP/M8
50
CAP/OIL(30)
51
1716-501-006-10
52
J062-138-148-00
53
7963-208-004-00
