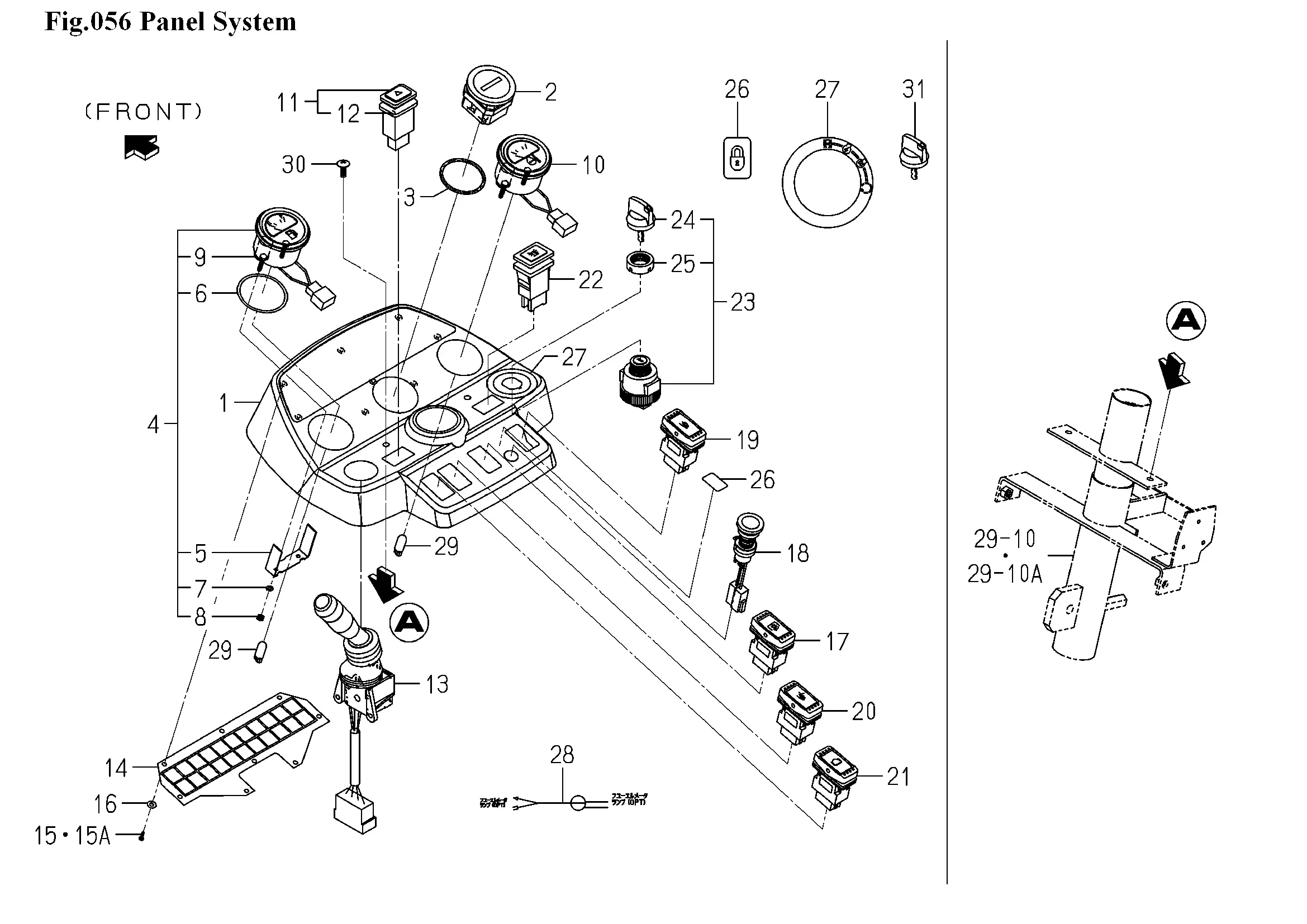

Instrumententafel, Schalter
Ersatzteile (33 Teile)
1
PANEL/SWITCH COMP
2
METER/HOUR ASSY
3
O-RING/1A,S50
4
METER/FUEL ASSY
5
1703-670-322-00
6
INSULATOR
7
1703-670-324-00
8
1703-670-325-00
9
1703-670-326-00
10
Anzeige, Temperatur
11
SWITCH/HAZARD ASSY
12
BULB/LAMP/14V60MA
13
1772-652-220-10
14
LAMP/MONITOR ASSY
15
V195-164-008-10
15A
SCREW/TAPPING
16
WASHER,PL/M4
17
SWITCH/PTO ASSY
18
SWITCH/LOCK ASSY
19
SWITCH/BLOWER ASSY
20
SWITCH/LOWSPEED ASSY
21
SWITCH/LOWFULL ASSY
22
SWITCH/BEACON ASSY
23
SWITCH/MAIN ASSY
24
KEY
25
NUT/RING
26
1809-670-201-00
27
LABEL/CONTROL/START/
28
1770-621-530-00
29
BULB/12V3.4W
30
SCREW/TRUSS/M06X16
31
KEY
ob
Display, Instrumententafel
