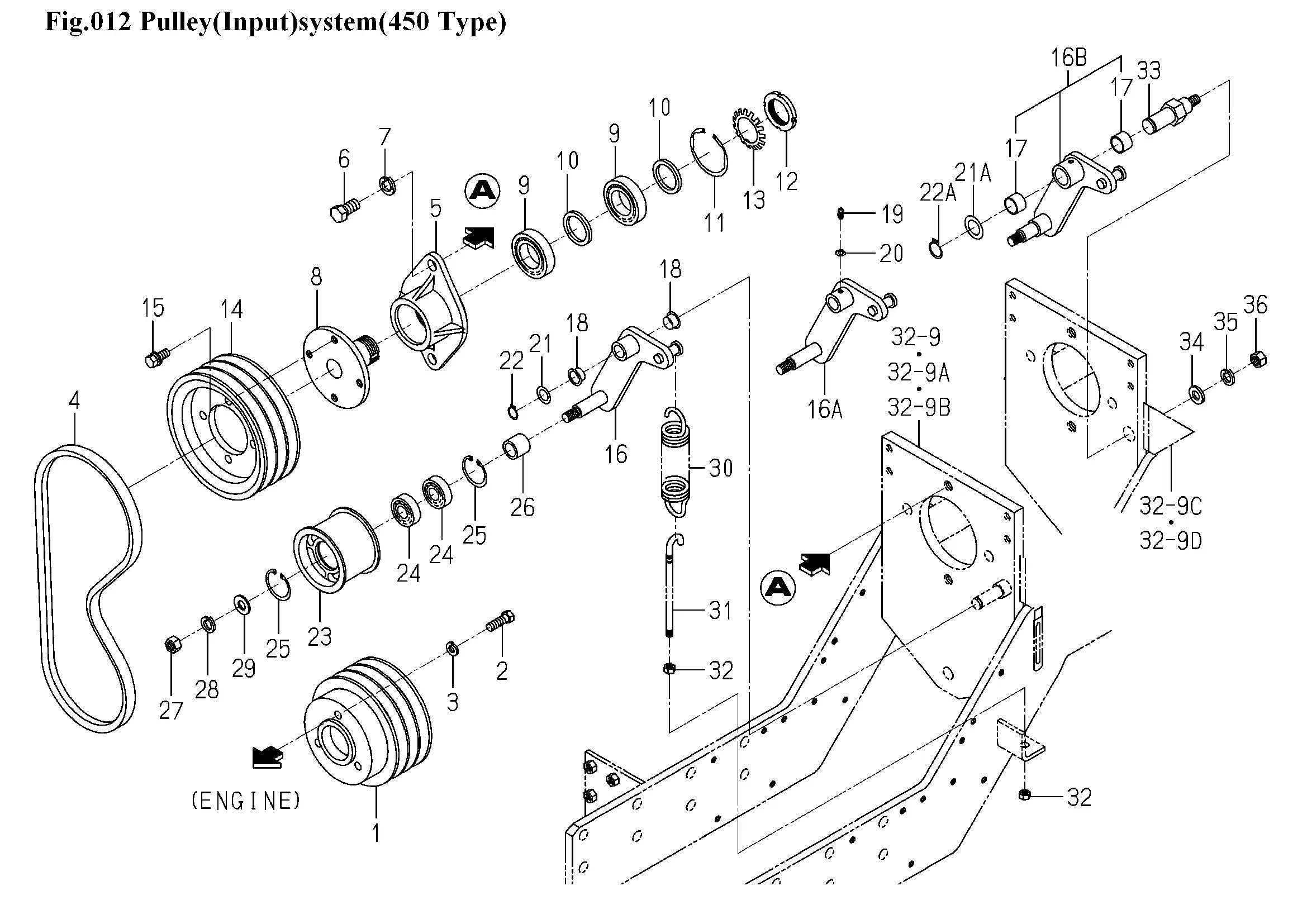

Antrieb, Spannarm
Ersatzteile (36 Teile)
1
PULLEY/V3B145
2
BOLT/M10X30/7T,P1.25
3
WASHER,SP/M10
4
BELT/VB041
5
Lagerbock
6
BOLT/M14X25/7T
7
WASHER,SP/M14
8
Flansch,Hydrostatantrieb
9
V600-150-600-70
10
COLLOR/35X46X05
11
RING,SNAP/R62
12
NUT,ADAPTER/AN07
13
WASHER,ADAPTER/AW07
14
PULLEY/V3B168
15
BOLT,S/M10X25/7T
16B
Spannarm, Antrieb,SF450
17
BUSH/20X23X15
18
BUSH/15X17X11
19
NIPPLE,GREASE
20
V401-160-006-00
21A
WASHER/20X32X01
22A
RING,SNAP/20 C
23
PULLEY/FT80X57
24
BEARING/BALL
25
RING,SNAP/40 C
26
Buchse 18x25x23
27
V304-460-012-00
28
WASHER,SP/M12
29
V411-260-012-00
30
SPRING/HE156
31
SCREW/M8X150
32
NUT/M8
33
Bolzen
34
WASHER,SUPPORT
35
WASHER,SP/M12
36
V304-460-012-00
