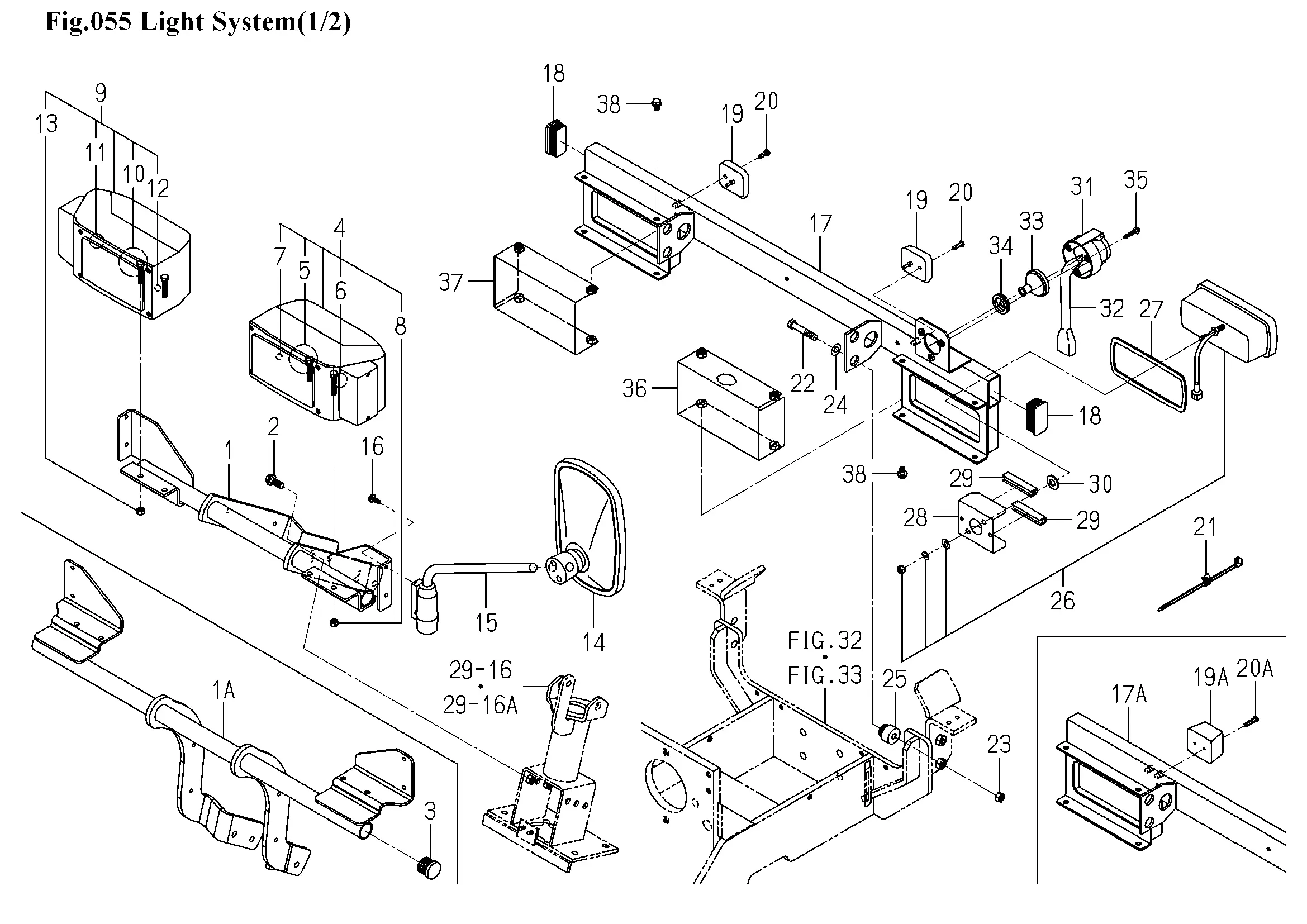

Beleuchtung
Ersatzteile (64 Teile)
1
Lampenhalter
1A
STAY/LAMP/FRONT COMP
2
V231-361-002-50
3
CAP/PIPE
4
LAMP/HEAD/LH ASSY
5
1774-650-212-00
6
1772-654-216-00
7
1809-650-232-00
8
1809-650-233-00
9
LAMP/HEAD/RH ASSY
10
1774-650-212-00
11
1772-654-216-00
12
1809-650-232-00
13
1809-650-233-00
14
MIRROR ASSY
15
ARM/MIRROR ASSY
16
FLANGEBOLT/M6X16
17
1809-650-410-10
17A
BUMPER/REAR COMP
18
COVER/PIPE
19
Gummipuffer
19A
STOPPER/B
20
Schraube
20A
V111-176-002-50
21
1560-666-004-00
22
BOLT/M10X55
23
NUT/M10
24
V411-260-010-00
25
GROMMET/10X30X5
26
LAMP/COMBINATION/REA
27
INSULATOR/LAMP
28
PLATE/U/70X85
29
TRIM/70
30
V411-260-012-00
31
PLUG/7P
32
HARNESS/SOCKET ASSY
33
1650-654-036-00
34
1588-606-003-00
35
V120-265-003-00
36
Abdeckung, li.
37
COVER/LIGHT/REAR/RH
38
V231-360-801-20
39
LAMP/NUMBERPLAT SET
40
1674-654-271-00
41
HARNESS/LAMP
42
V411-260-005-00
43
STAY/NUMBERPLATE
44
GROMMET/9
45
NUT/M8
46
WASHER,PL/M8
47
V201-260-802-50
48
HITCH/FRONT COMP
49
V201-361-203-50
50
WASHER,SP/M12
51
PIN/30X120 COMP
52
INSULATOR
53
LINKPIN
54
CABLE
55
V231-360-803-00
56
V363-260-008-00
57
1809-690-280-00
58
Kombimutter-M8
59
1772-652-220-10
60
1772-652-001-00
