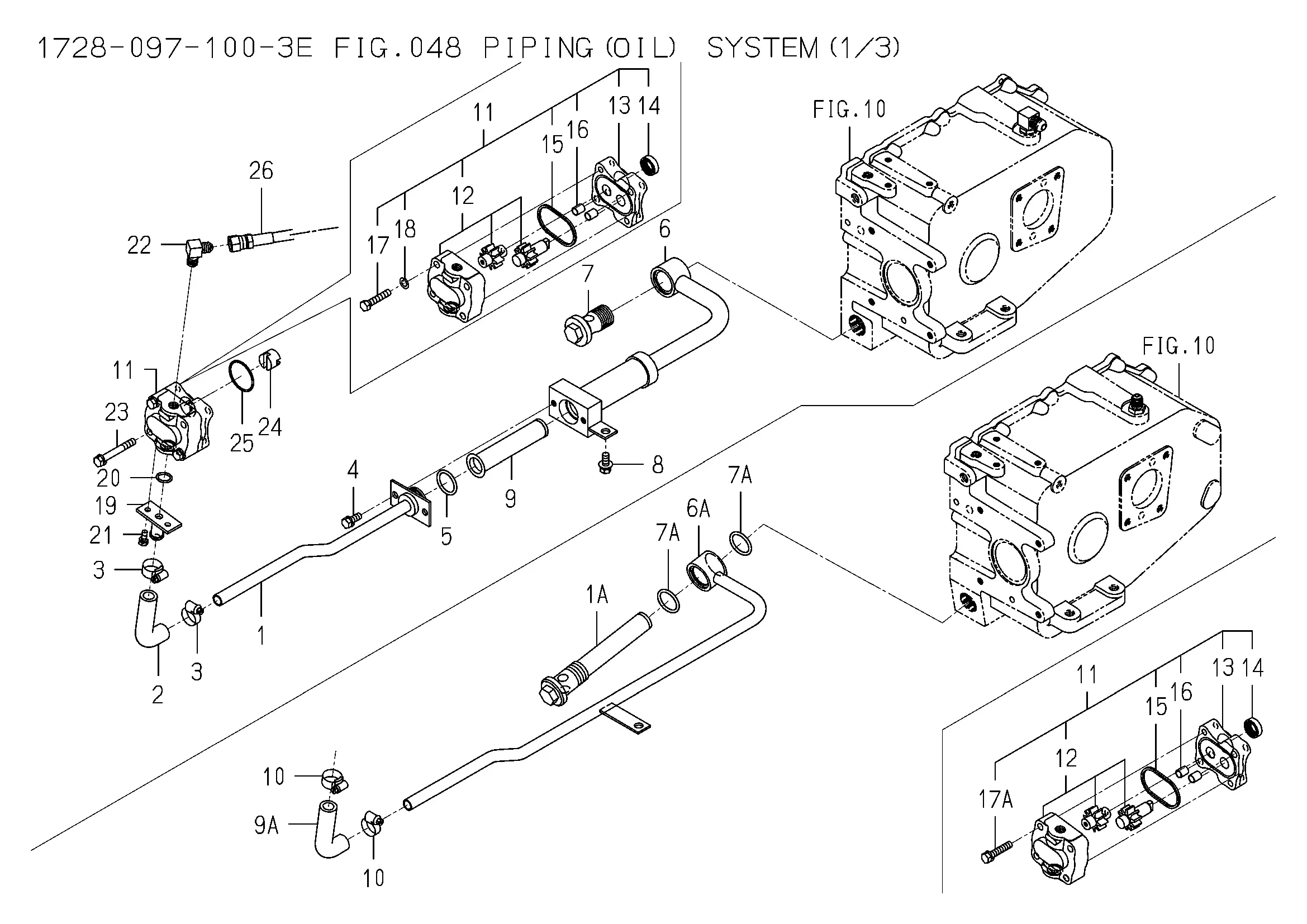

Hydraulikleitungen, -Filter
Ersatzteile (82 Teile)
1
Hydraulikleitung
1A
Filter, Hydraulikleitung
2
HOSE/14X22X82
3
J061-114-024-00
4
BOLT,S/M8X20
5
O-RING/1A,P28
6
Ansaugrohr
6A
PIPE/SUCTION COMP
7
Hohlschraube
7A
O-RING/1A,P28
8
BOLT,SP/M8X20
9
Saugfilter
9A
HOSE/14X22X82
10
J061-114-024-00
11
PUMP/GEAR ASSY
12
PUMP/GEAR SET
13
K130-003-003-00
14
SEAL,OIL/TC15257
15
O-RING/1A,S56
16
KNOK
17
V201-260-804-00
17A
V211-260-804-00
18
WASHER,SP/M8
19
SUCTION/OUT COMP
20
O-RING/1A,P16
21
V210-260-601-60
22
ADAPTER/L/G1/4XR1/4
23
V211-260-806-00
24
CONNECTOR
25
O-RING/1A,S40
26
HOSE/HYDRO/950 ASSY
27
Steuerventil
28
Halter, Ventil
29
V210-360-603-50
30
V210-360-602-00
31
V301-260-006-00
32
Adapter, 45°
32A
ADAPTER/G1/4 ASSY
33
O-RING/1B,P11
34
ADAPTER/L/PF1/4 ASSY
34A
3817-374-340-00
35
O-RING/1B,P11
36
ADAPTER/G1/4 ASSY
37
O-RING/1B,P11
38
Stopfen
39
V211-261-002-50
40
Schalthebel
41
Schalthebel
42
Hebel, Hy.-Steuerventil
42A
Schalthebel
43
GRIP/SUB
44
Stellring
44A
TUBE/15
45
Stift
45A
1728-508-001-10
46
V411-260-005-00
47
PIN/SNAP
48
PIN/05X17
49
V411-260-005-00
50
PIN/SNAP
51
1728-508-320-00
51A
Schlauch, 1450
52
HOSE/HYDRO/950 ASSY
53
1728-508-350-00
54
Leitung
54A
Leitung
55
FILTER/RETURN ASSY
56
Hydraulikfilter
57
V211-260-801-60
57A
BOLT,SP/M8X16
58
ADAPTOR/G3/8XM16ASSY
59
O-RING/1B,P14
60
ADAPTER/G3/8 ASSY
61
O-RING/1B,P14
62
Hydraulikleitung
62A
1728-508-410-10
63
Leitung
63A
1728-508-420-10
64
ADAPTER/M16XG1/4 CP
65
BOLT,S/M10X20
66
1728-508-450-00
67
BOLT,S/M8X20
