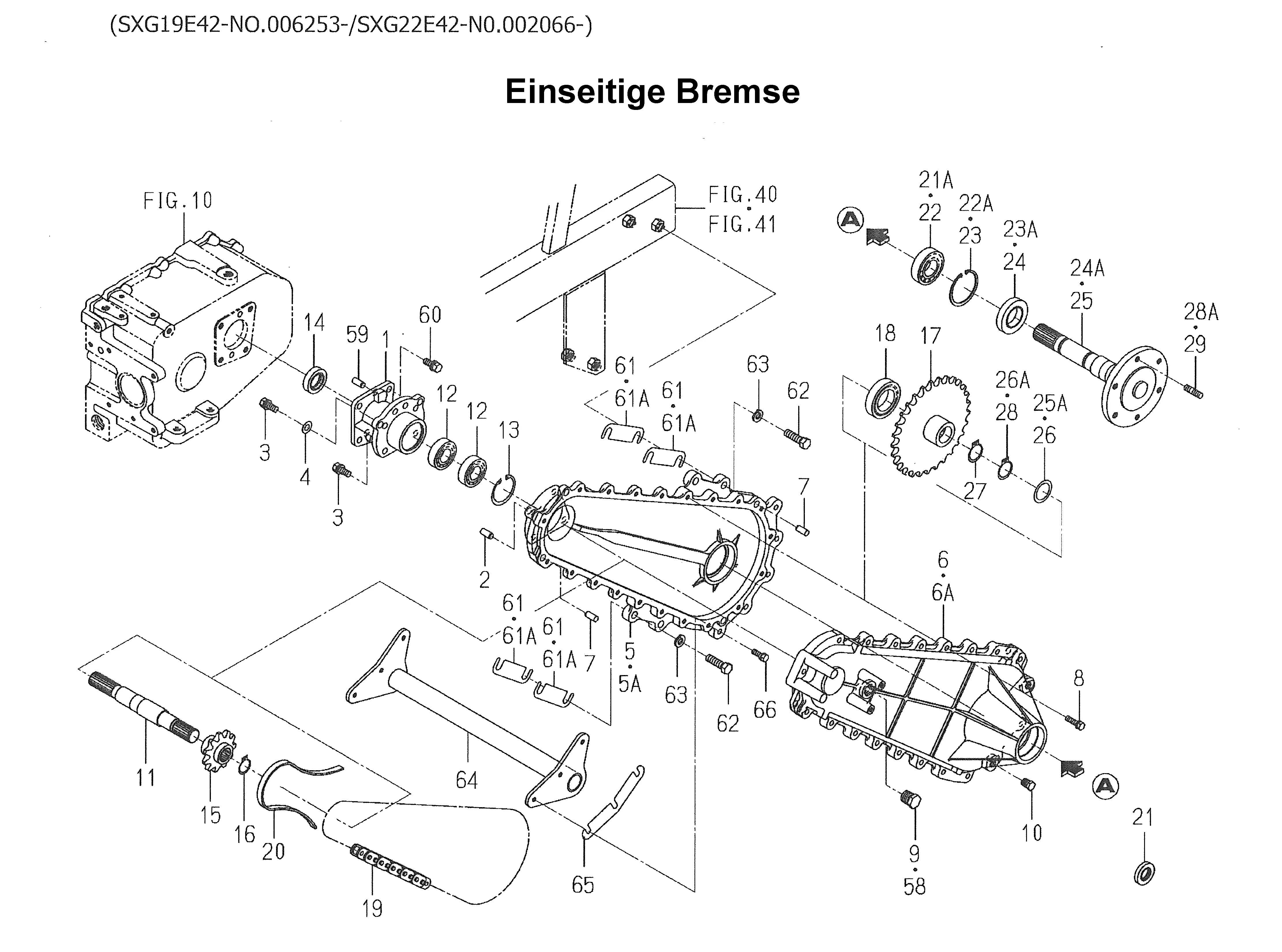

Hinterachse Antrieb (Einseitige Bremse)
Ersatzteile (79 Teile)
1
CASE/SPACER
2
PIN,ST,B/10X22
3
BOLT,S/M10X25/7T
4
V411-260-010-00
5
Abschlussdeckel
5A
CASE/CHAIN/A
6
1728-306-003-30
6A
1728-306-023-00
7
PIN,ST,B/10X22
8
V211-560-803-00
9
PLUG/SCREW/SEAL
10
PLUG/SCREW/SEAL
11
Welle
12
Kugellager -> siehe V600-110-620-50
13
RING,SNAP/52 C
14
SEAL,OIL/TC284511
15
SPROCKET/11
16
RING,SNAP/25 C
17
1728-307-025-00
18
1728-307-028-00
19
ROLLERCHAIN
20
Kettenführung
21
SEAL,OIL/TC20408
21A
1725-434-062-00
22
1725-434-062-00
22A
RING/SNAP/R62
23
RING/SNAP/R62
23A
SEAL/OIL
24
SEAL/OIL
24A
1728-307-420-00
25
1728-307-220-10
25A
1728-307-027-00
26
1728-307-027-00
26A
RING,SNAP/30 C
27
RING,SNAP/30 C
28
RING,SNAP/30 C
28A
STUD/M10X20/7T
29
STUD/M10X20/7T
30
CASE/SPACER
31
PIN,ST,B/10X22
32
BOLT,S/M10X25/7T
33
V411-260-010-00
34
Abschlussdeckel
34A
CASE/CHAIN/A
35
1728-306-003-30
35A
1728-306-023-00
36
PIN,ST,B/10X22
37
V211-560-803-00
38
PLUG/SCREW/SEAL
39
PLUG/SCREW/SEAL
40
Welle
41
Kugellager -> siehe V600-110-620-50
42
RING,SNAP/52 C
43
SEAL,OIL/TC284511
44
SPROCKET/11
45
RING,SNAP/25 C
46
1728-307-025-00
47
1728-307-028-00
48
ROLLERCHAIN
49
Kettenführung
50
1725-434-062-00
51
RING/SNAP/R62
52
SEAL/OIL
53
1728-307-220-10
53A
1728-307-420-00
54
1728-307-027-00
55
RING,SNAP/30 C
56
RING,SNAP/30 C
57
STUD/M10X20/7T
58
PLUG/SCREW/SEAL
59
PIN,ST,B/10X22
60
BOLT,S/M10X25/7T
61
Abstandsplatten, 0,6
61A
1728-306-005-10
62
BOLT/M12X40/7T
63
WASHER,SP/M12
64
Strebe
65
SHIM/0.6
66
BOLT,S/M8X25/7T
