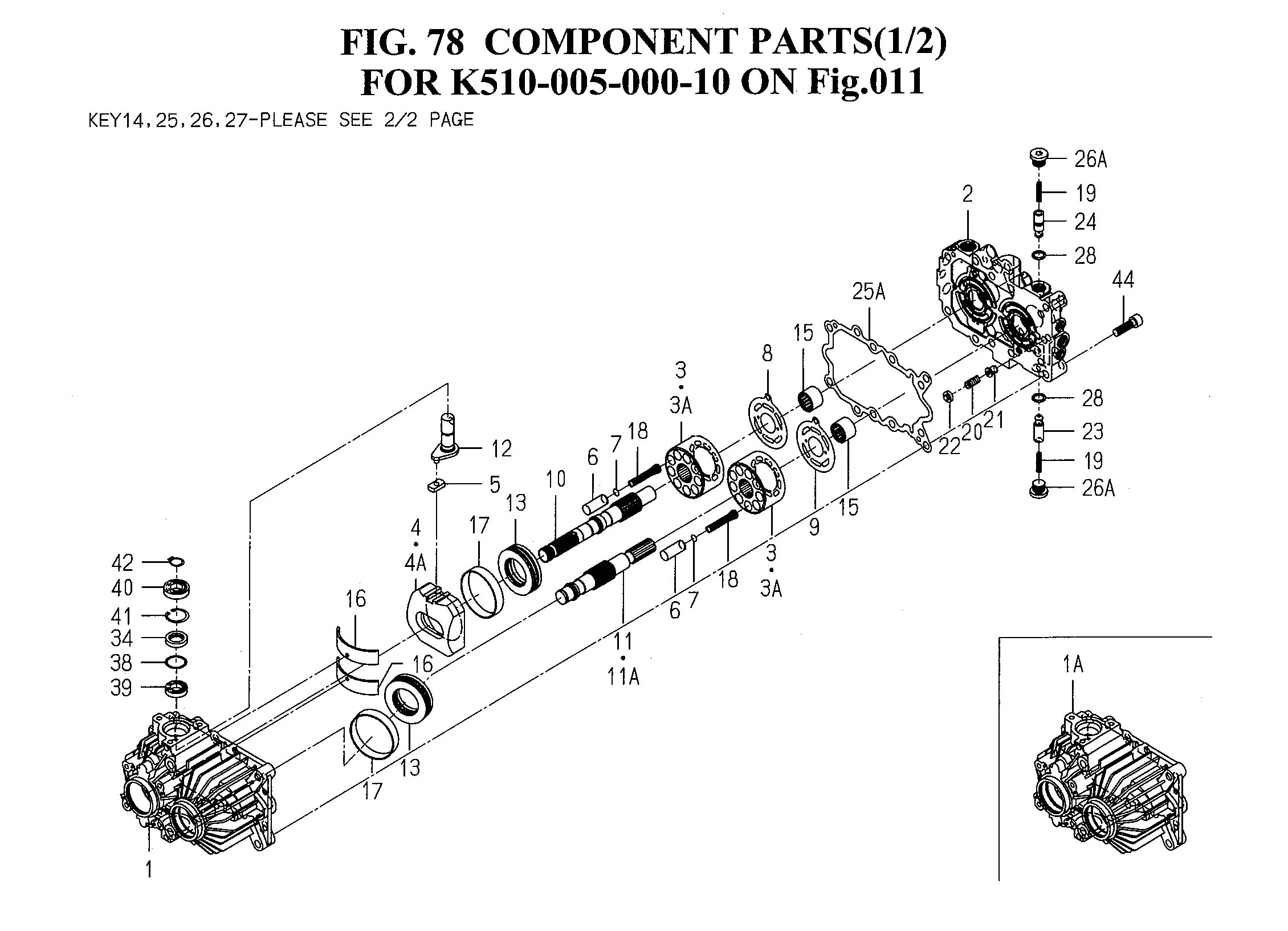

Einzelteile Hydrostat K510-005-000-10
Ersatzteile (62 Teile)
1
K510-004-001-00
1A
CASE
2
K510-005-004-00
3
Zylinderblock
3A
K510-002-005-00
4
K510-001-006-00
4A
K510-001-006-10
5
K510-001-007-00
6
Kolben
7
K510-001-009-00
8
PLATE/VALVE/PUMP
9
PLATE/VALVE/MOTOR
10
Welle, HST
11
K510-003-013-00
11A
SHAFT/MOTOR
12
K510-005-014-00
13
BEARING/THRUST
14
V600-110-620-40
15
NEEDLE
16
BUSH/95X100X22
17
BUSH/68X71X14
18
SPRING/HC053
19
SPRING/HC030
20
SPRING/HC021
21
K510-003-022-00
22
K510-003-037-00
23
POPPET/CHECK/0.5
24
POPPET/CHECK/1.3
25
Buchse 23x47x12
25A
GASKET
26
O-RING/1A,P41
26A
PLUG(G3/8)
27
PLUG(PF1/4)
28
O-RING/1B,P14
29
O-RING/1B,P11
30
RING,SNAP/20 C
31
RING,SNAP/47 C
32
RING,SNAP/32 C
33
RING,SNAP/47 C
33A
Dichtring
33B
OIL SEAL
34
SEAL/OIL
35
SEAL,OIL/TC20477
36
SEAL/47
37
SEAL/OIL
37A
CAP/32X7
38
WASHER/25X30X1
39
Lager
40
Kugellager 6003 2 RS
41
RING,SNAP/30 C
42
RING,SNAP/17 C
43
K510-001-036-00
44
V220-541-003-50
45
VALVE/RELIEF SET
46
SPOOL
47
PLUG/M10X1
48
O-RING/1B,P12
49
RING/BACK UP
50
SPRING/HC023
51
O-RING
52
O-RING/1A,P8
53
PLUG/SCREW/SEAL
