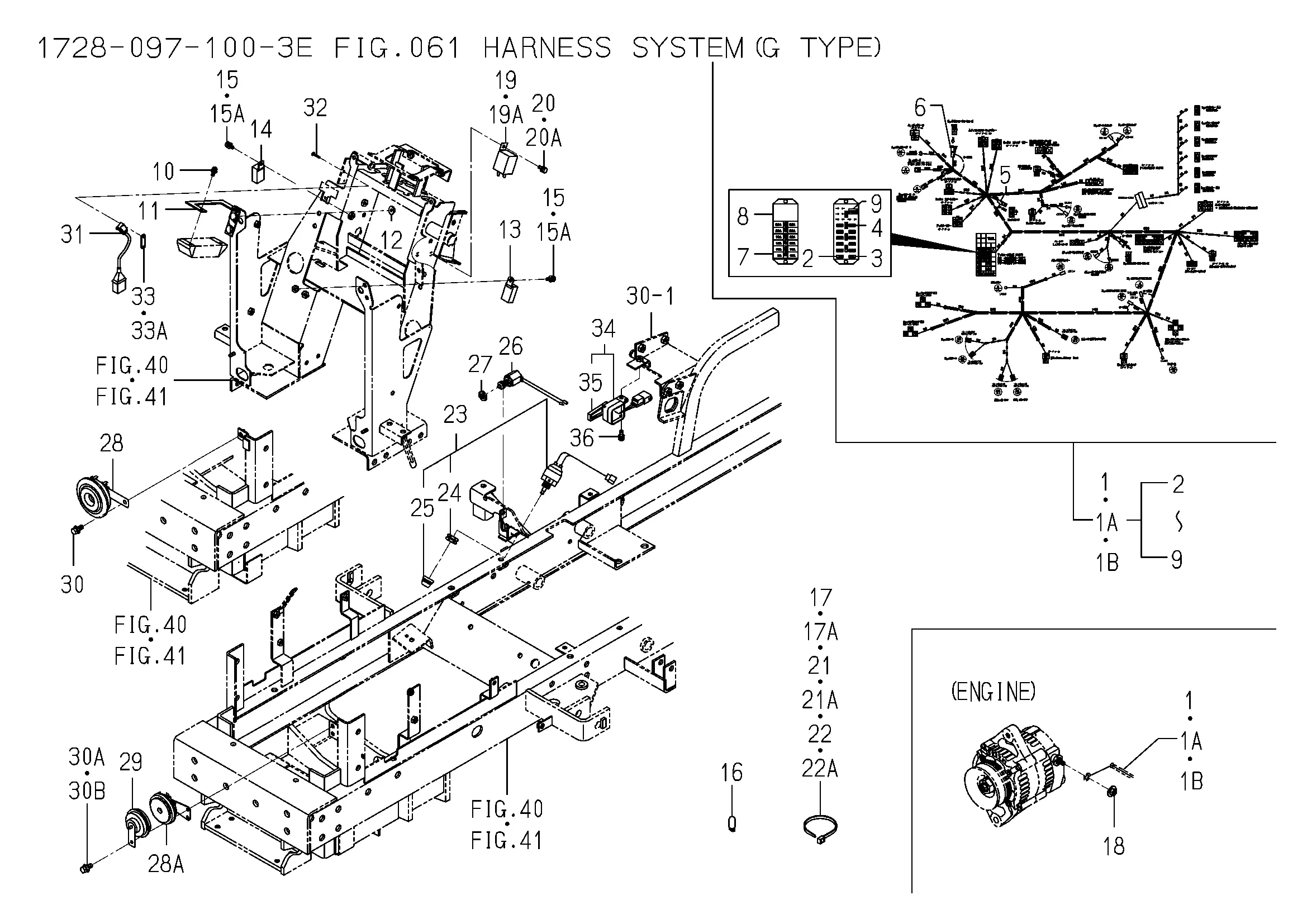

Kabelbaum, Relais (G TYPE)
Ersatzteile (48 Teile)
1
1728-690-500-00
1A
1728-690-500-10
1B
Kabelbaum, Hauptkabelstrang
2
Sicherung 3A (mini)
3
FUSE/BLADE/32V10A
4
FUSE/BLADE/32V20A
5
DIODE/3.0A
6
FUSE/SLOW BLOW/50A
7
LABEL/FUSE
8
COVER/FUSE
9
TOOL/FUSE
10
SCREW,SP/M6X16
11
Halter
12
NUT/WASHER/M6
13
RELAY/4P ASSY
14
Relais blau, 4-pol., ACA 22135 C02 60316
15
BOLT,SP/M6X16
15A
FLANGEBOLT/M6X12
16
BULB/12V3.4W
17
1593-623-003-00
17A
CLAMP
18
NUT/WASHER/M6
19
1600-623-002-00
19A
1600-623-002-10
20
BOLT,SP/M6X16
20A
FLANGEBOLT/M6X12
21
3737-172-010-00
21A
1342-402-006-00
22
3746-185-014-00
22A
BAND,WIRE/140
23
Startsicherheitsschalter
24
Mutter, Schalter Schalter, SL14H
25
Abdeckung
26
SWITCH,STOP
27
NUT,LOCK
28
Hupe
28A
Hupe
29
HORN ASSY
30
BOLT,SP/M8X20
30A
BOLT,SP/M6X16
30B
FLANGEBOLT/M6X12
31
SWITCH,MERIT
32
SCREW/M03X20
33
Platte
33A
PLATE,SWITCH
34
Bremslichtschalter
35
ARM
36
V210-360-602-00
