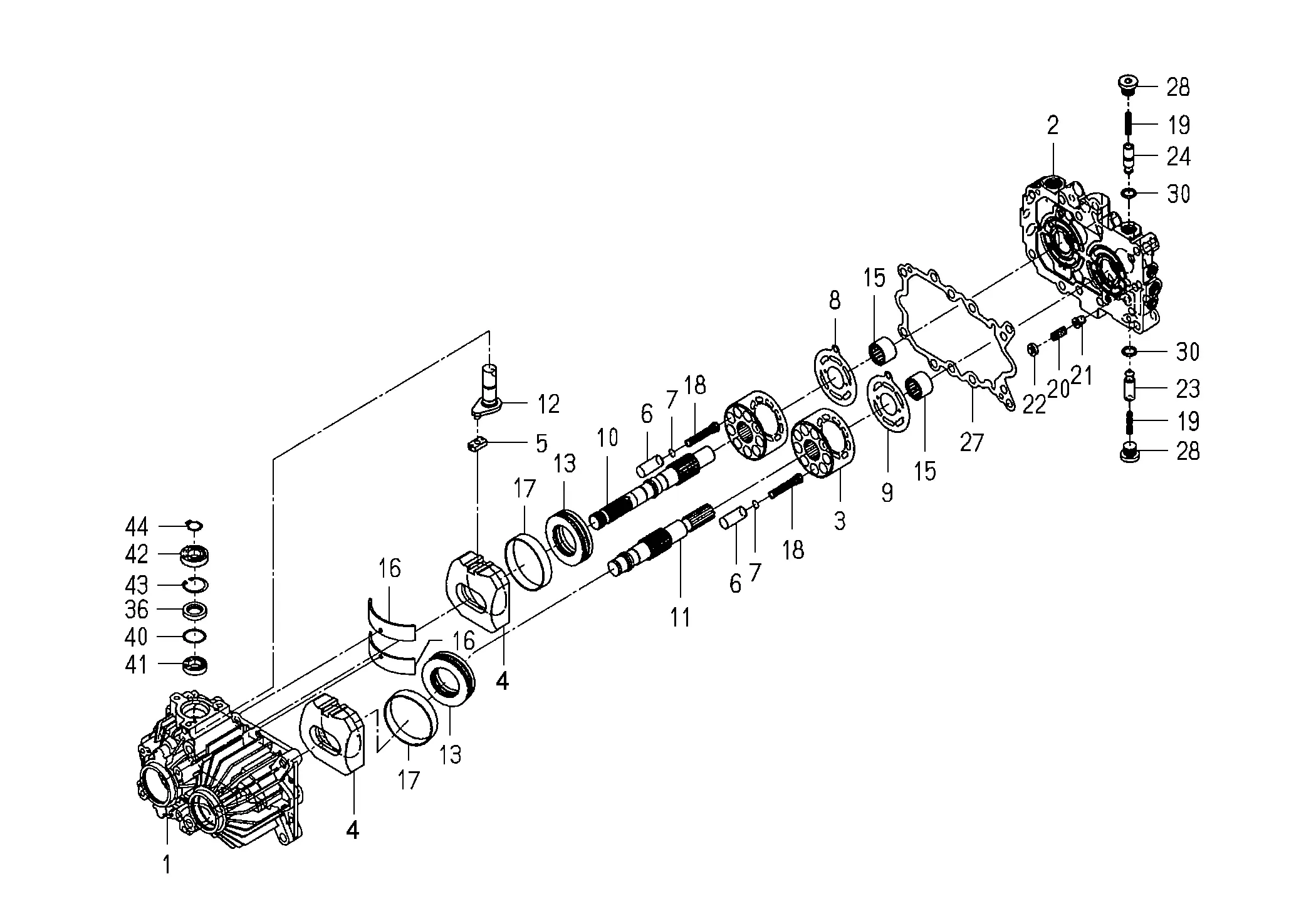

Einzelteile Hydrostat K510-005-000-00
Ersatzteile (55 Teile)
1
K510-004-001-00
2
K510-005-004-00
3
Zylinderblock
4
K510-001-006-00
5
K510-001-007-00
6
Kolben
7
K510-001-009-00
8
PLATE/VALVE/PUMP
9
PLATE/VALVE/MOTOR
10
Welle, HST
11
K510-003-013-00
12
K510-005-014-00
13
BEARING/THRUST
14
V600-110-620-40
15
NEEDLE
16
BUSH/95X100X22
17
BUSH/68X71X14
18
SPRING/HC053
19
SPRING/HC030
20
SPRING/HC021
21
K510-003-022-00
22
K510-003-037-00
23
POPPET/CHECK/0.5
24
POPPET/CHECK/1.3
25
Buchse 23x47x12
26
O-RING/1A,P41
27
GASKET
28
PLUG(G3/8)
29
PLUG(PF1/4)
30
O-RING/1B,P14
31
O-RING/1B,P11
32
RING,SNAP/20 C
33
RING,SNAP/47 C
34
RING,SNAP/32 C
35
Dichtring
36
SEAL/OIL
37
SEAL/OIL
38
SEAL/47
39
CAP/32X7
40
WASHER/25X30X1
41
Lager
42
Kugellager 6003 2 RS
43
RING,SNAP/30 C
44
RING,SNAP/17 C
45
K510-001-036-00
46
V220-541-003-50
47
VALVE/RELIEF SET
48
O-RING/1B,P12
49
RING/BACK UP
50
SPOOL
51
PLUG/M10X1
52
SPRING/HC023
53
O-RING
54
O-RING/1A,P8
55
V780-140-0001-T
