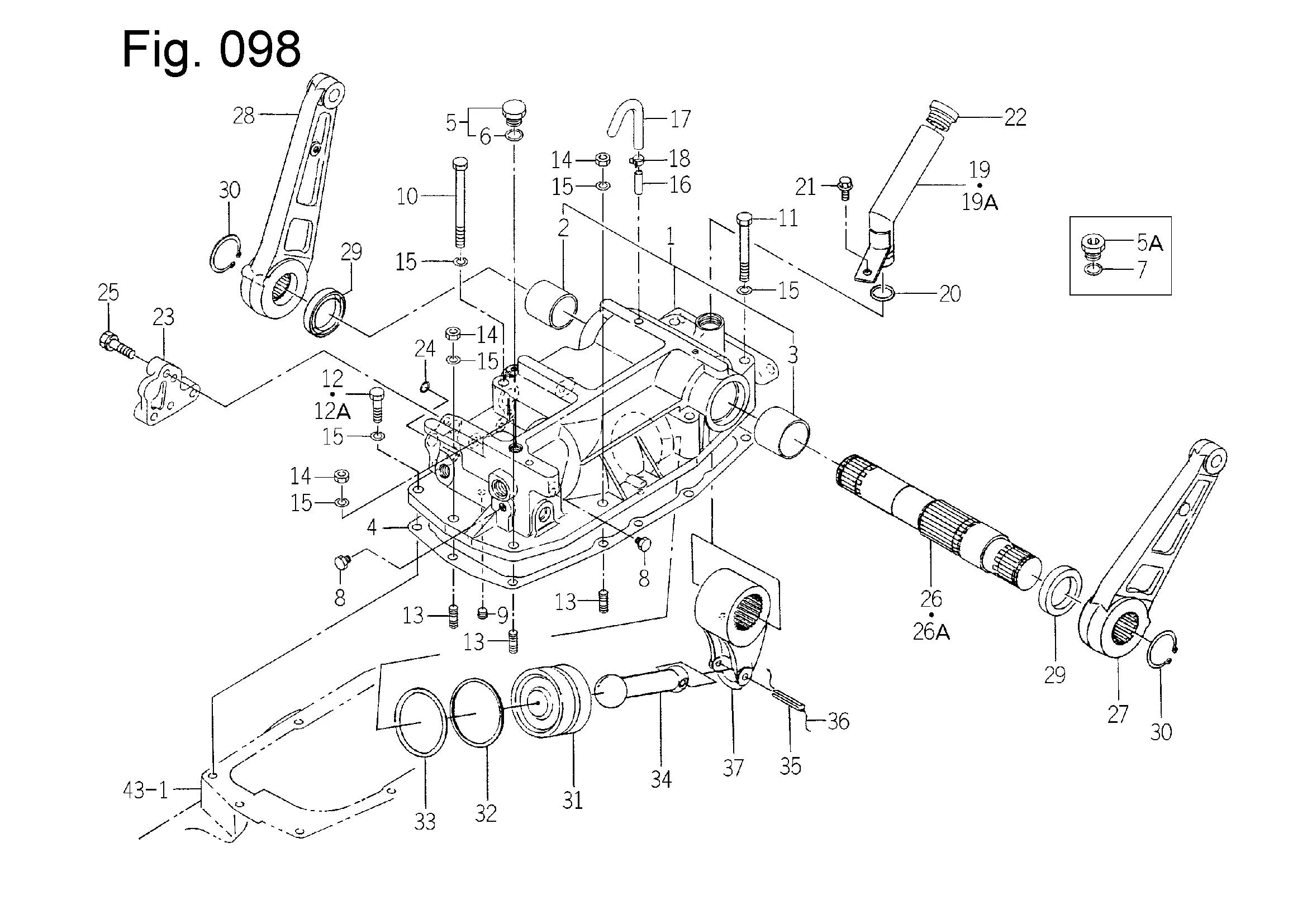

Zylinder, Heckaushebung
Ersatzteile (40 Teile)
1
Gehäuse, Zylinder
2
BUSH/45X50X42
3
BUSH/50X55X42
4
GASKET/CASE/CYLINDER
5
PLUG/G3/8 ASSY
5A
PLUG(G3/8)
6
O-RING/1B,P14
7
O-RING/1B,P14
8
PLUG/SCREW/SEAL
9
PLUG/SCREW/SEAL
10
V201-361-212-00
11
BOLT/M12X90/7T
12
V201-361-203-50
12A
V201-361-203-50
13
STUD/M12X32/7T
14
V304-460-012-00
15
WASHER,SP/M12
16
PIPE,BREATHER
17
Schlauch
18
J062-138-148-00
19
Leitung, Einfüllstutzen
19A
1742-501-210-10
20
O-RING/1B,P26,HS90
21
V231-360-801-20
22
CAP/OIL(30)
23
COVER
24
O-RING/1B,P14
25
BOLT,SEMS
26
Welle
26A
BAR
27
ARM/LIFT/LH
28
ARM/LIFT/RH
29
SEAL,OIL/TC45609
30
V706-140-045-00
31
PISTON
32
RING
33
O-RING/1B,P75
34
ROD
35
V580-140-805-00
37
Hebel
