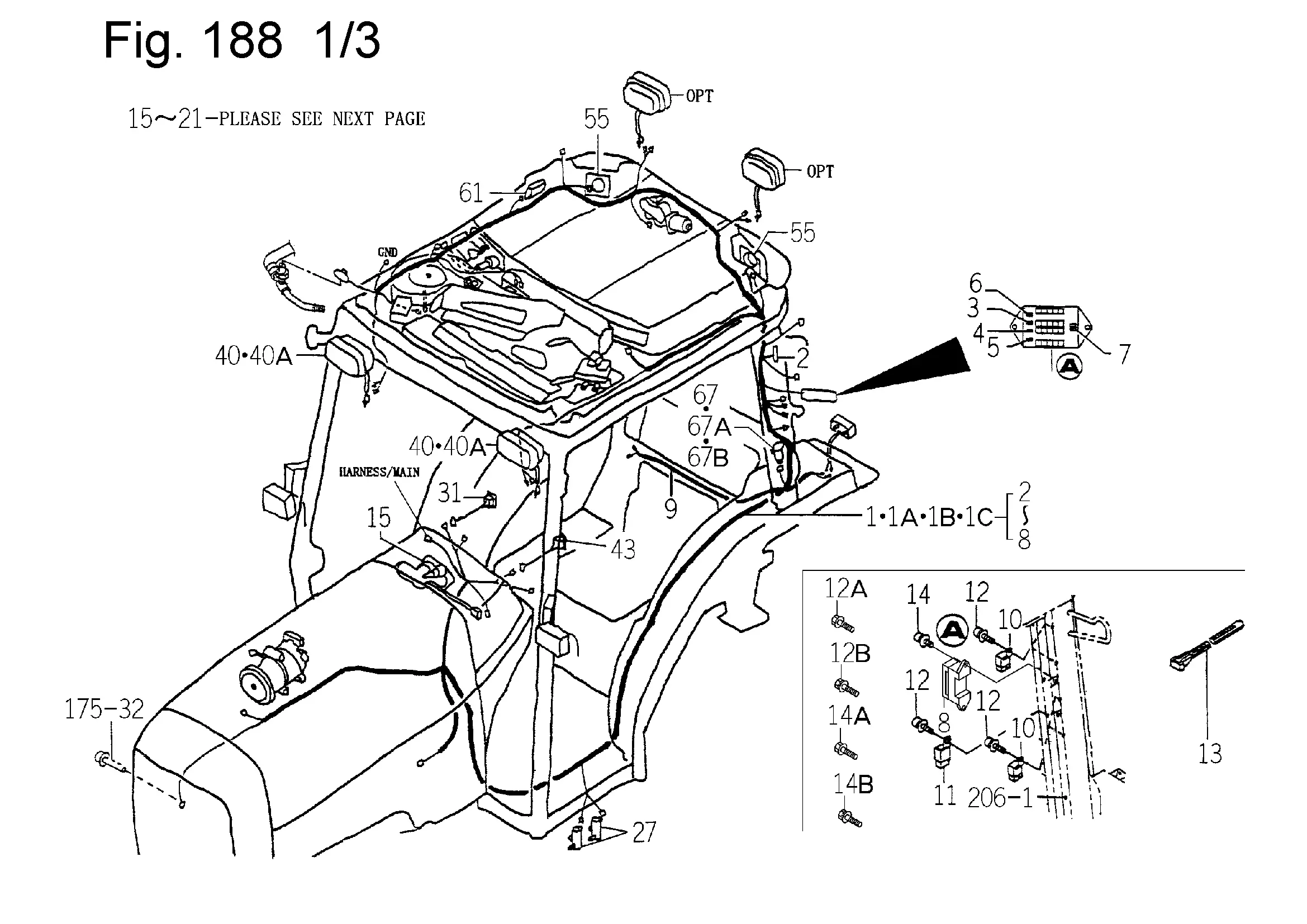

Elektrik, Kabine
Ersatzteile (90 Teile)
1
1742-658-200-00
1A
1742-658-200-10
1B
1742-658-200-20
1C
Kabelbaum, Kabine
2
DIODE
3
FUSE/BLADE/32V7.5A
4
FUSE/BLADE/32V15A
5
FUSE/BLADE/32V10A
6
FUSE/BLADE/32V05A
7
TOOL/FUSE
8
COVER/FUSE
9
1746-658-210-00
10
Relais Motorstart
11
Relais 5 Pol., ACA3213-1
12
SCREW,SP/M6X16
12A
FLANGEBOLT/M6X16
12B
V210-360-601-20
13
BAND,WIRE/140
14
SCREW,SP/M6X16
14A
FLANGEBOLT/M6X16
14B
BOLT,SP/M6X16
15
MOTOR/WIPER/175 ASSY
16
GROMMET
17
V301-260-006-00
18
NUT,WASHER/M6
19
Halterung für Scheibenwischermotor
20
SCREW,SP/M6X16
20A
4301-210-002-00
20B
BOLT/M6X16X16
21
1673-705-008-10
22
Wischerarm
23
BLADE/WIPER/450 ASSY
24
TANK/WASHER/2M
25
GROMMET/W/T
26
Deckel, Tank Scheibenwaschanlage
27
PUMP/W/T
28
NUT,WASHER/M6
29
1729-658-270-00
30
FLANGEBOLT/M8X16
31
Switch Wiper Assy
32
1746-658-002-00
33
Nozzle Washer Assy
34
1729-658-001-00
35
1729-658-007-00
35A
1650-658-005-00
36
1691-658-003-00
37
CAP/22X38
38
1729-658-001-00
38A
1742-658-003-00
39
Ventil
40
Arbeitsscheinwerfer
40A
1696-658-340-10
41
Halter, Arbeitsscheinwerfer
42
V363-260-008-00
43
REAR DIFF SWITCH
44
DIFF LOSTING MARK
45
Symbol, Arbeitsscheinwerfer vorne
45A
1711-666-052-10
46
CAP/22X38
47
BOLT,SP/M6X16
48
CLAMP,WINKER B
49
1729-658-003-00
49A
1729-658-003-10
49B
1729-658-003-20
50
1742-658-220-00
50A
1742-658-220-10
51
1742-658-001-00
51A
1742-658-001-10
52
1729-705-008-00
52A
1719-720-051-00
53
FLANGEBOLT/M6X12
54
BOLT/M6X20/16
55
Lautsprecher
56
1673-666-621-00
57
V111-174-002-00
58
1729-658-008-00
58A
1617-730-005-00
59
Tülle
59A
1781-658-003-00
59B
1783-658-001-00
60
1781-658-004-00
61
Beleuchtung, innen
62
1729-658-232-00
63
1729-658-233-00
64
1729-658-234-00
65
SCREW,SP/M5X20
66
V360-260-005-00
67
Steckdose
67A
1742-658-210-10
67B
1742-658-210-20
