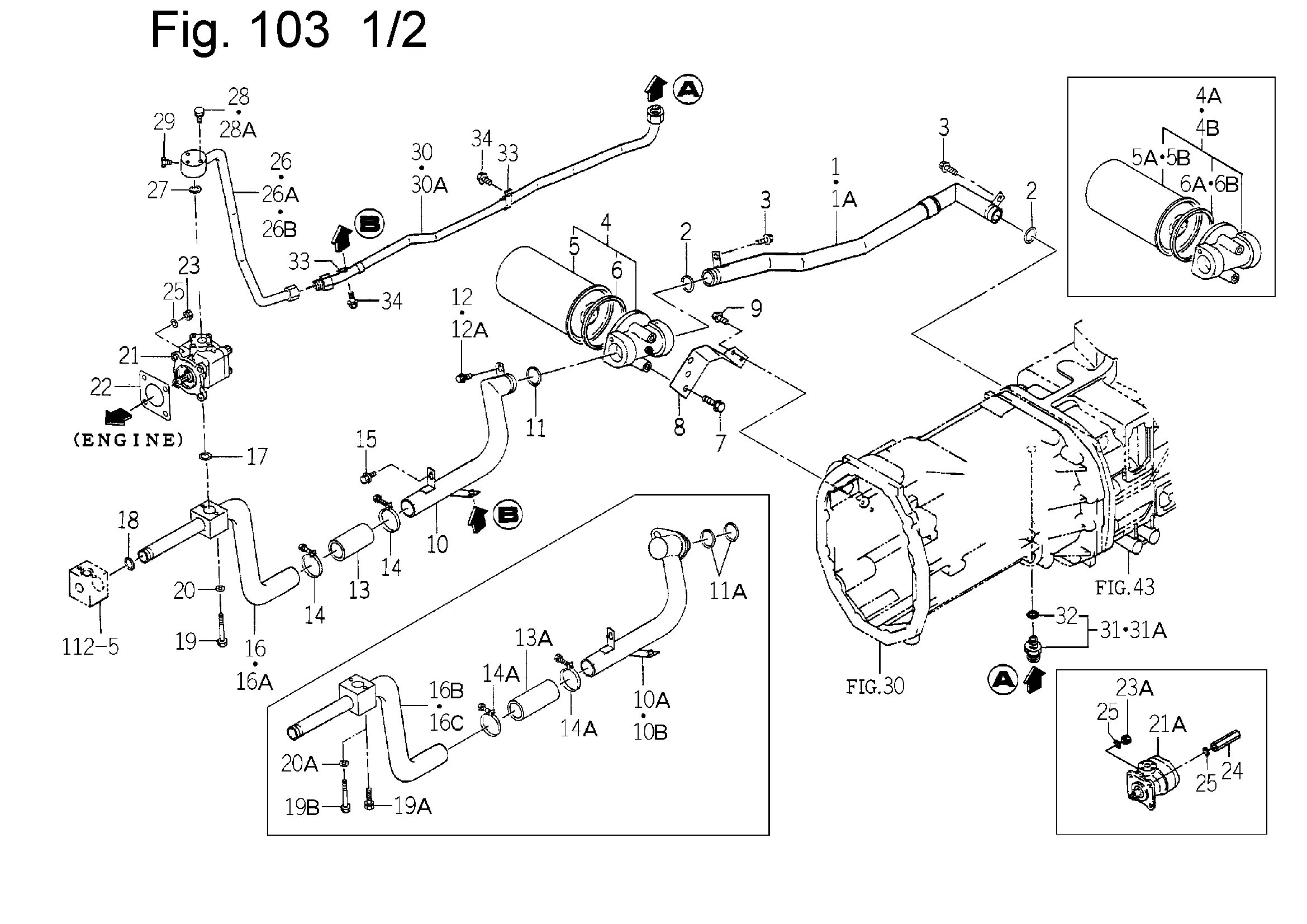

Hydrauliksys. bis Seriennr. ~774
Ersatzteile (88 Teile)
1
Leitung
2
O-RING/1A,P28
3
V231-360-801-20
4
Filterträger
4A
Filter, kpl.
5
Hydraulikfilter
5A
Hydraulikfilter
6
Dichtung
6A
Dichtung
7
V231-361-002-50
8
1742-508-005-00
9
FLANGEBOLT/M8X16
10
Leitung
10A
1742-508-340-00
11
O-RING/1A,P28
11A
O-RING/1A,P28
12
V231-360-801-20
12A
FLANGEBOLT/M8X16
13
Verbindungsschlauch
13A
Schlauch
14
CLAMP/WIRE/36-44
14A
J061-232-040-00
15
V231-360-801-20
16
Leitung
16A
1743-508-210-10
17
O-RING/1B,P20
18
RING/O
19
BOLT/M6X55/7T
19A
BOLT,S/M6X50/7T
20
V401-160-006-00
21
PUMP/GEAR/13.2 ASSY
22
PACKING,OIL PUMP
23
NUT/M8
25
WASHER,SP/M8
26
Hydraulikleitung
27
O-RING/1B,P20
28
BOLT,S/M6X35/7T
29
PLUG/SCREW/SEAL
30
Hydraulikleitung, Druck
31
Adapter, 3/8"
32
O-RING/1B,P14
33
1675-508-003-00
34
V231-360-801-20
35
Ventilblock
36
Ventil
37
Ventil
38
O-RING/1B,P20
39
O-RING/1B,S16
40
FILTER/LINE/12X18X15
41
PLUG/SCREW/SEAL
42
Ventil
43
O-RING/1B,P20
44
O-RING/1B,P10A
45
O-RING/1B,P12
46
O-RING/1B,P14
47
Leitung
50
Steuerventil
51
Abdeckung
52
V211-260-806-50
53
V211-260-805-00
54
VALVE,RELIEF ASSY
55
O-RING/1B,P12
56
O-RING/1B,P18
57
Ventil
58
O-RING/1B,P10A
59
RING/BACK UP
60
Manschette 11x21x3
61
Sicherungsring
62
SEAL,DUST
63
O-RING/1B,P22
64
O-RING/1B,P16
65
NUT/M10
66
Welle
66A
1568-507-001-10
67
COVER/SHAFT COMP
68
V201-260-802-00
69
NUT/M8
70
KNOB
71
Schraube M6x35 DIN 933
71A
SCREW/M6X40
72
V401-160-006-00
73
PIPE/PTO/H COMP
74
ADAPTOR/PF1/4 ASSY
75
O-RING/1B,P11
76
ADAPTER/L/PF1/4 ASSY
77
O-RING/1B,P11
78
HOLDER/10
79
V231-360-801-20
