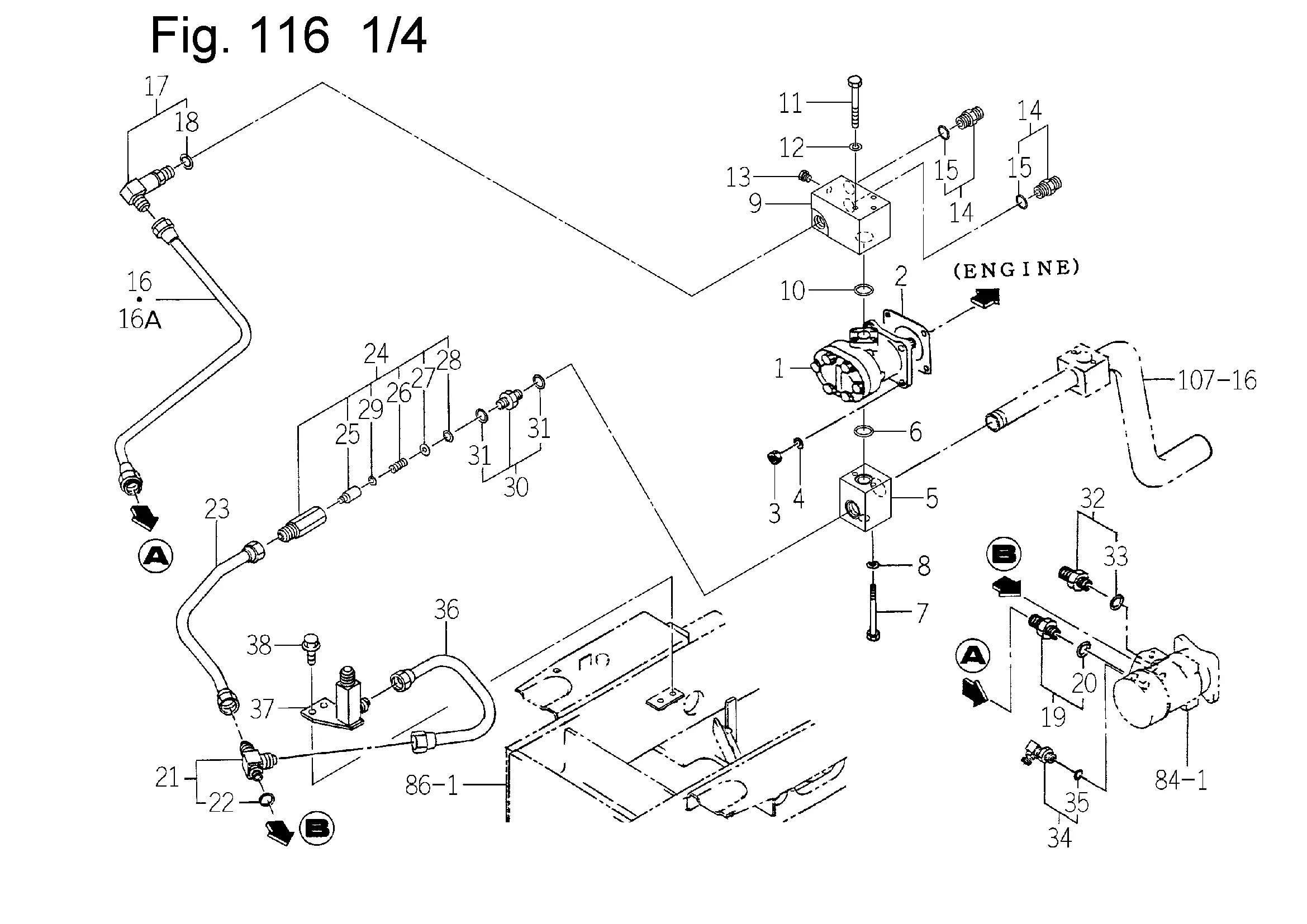

Hydraulik, Lenkung HST-Betät. elektr.
Ersatzteile (115 Teile)
1
Hydraulikpumpe
2
PACKING,OIL PUMP
3
NUT/M8
4
WASHER,SP/M8
5
Flansch
6
O-RING/1B,P20
7
V200-360-608-00
8
V401-160-006-00
9
Flansch ( Pumpe)
10
O-RING/1B,P20
11
V200-360-607-00
12
V401-160-006-00
13
PLUG/SCREW/SEAL
14
ADAPTER/PF3/8 ASSY
15
O-RING/1B,P14
16
Leitung
16A
1742-509-200-20
17
ADAPTER/L/PF3/8 ASSY
18
O-RING/1B,P14
19
Adapter
20
O-RING/1B,P11
21
Adapter, T-Stück
22
O-RING/1B,P11
23
Hydraulikleitung
24
Rückschlagventil
25
Einsatz
26
SPRING/HC024
27
Scheibe 4/14/2
28
RING,SNAP/15 C
29
COLLAR/06X10X02
30
1656-509-300-00
31
O-RING/1B,P14
32
ADPTER/G1/4.1/4
33
O-RING/1B,P11
34
ADAPTER/L/G1/4 ASSY
35
O-RING/1B,P11
36
PIPE/COOLER/LOWER
37
Adapter
38
FLANGEBOLT/M8X16
39
Hydraulikleitung
40
CONNECTOR
41
Ölkühler
42
Kombimutter-M8
43
CONNECTOR
44
Hydraulikleitung
45
Adapter
46
FLANGEBOLT/M8X16
47
PAD/190
48
Leitung
49
Adapter
50
HOLDER/12
51
V231-360-801-20
52
Leitung, Hydraulikpumpe
53
ADAPTER/L/G3/4 ASSY
54
O-RING/1B,P24
55
1743-509-002-00
56
FLANGEBOLT/M8X16
57
HOLDER/12
58
V231-360-801-20
59
FILTER/CHARGE ASSY
60
Hydraulikfilter
61
FLANGEBOLT/M8X16
62
1743-509-003-00
63
FLANGEBOLT/M8X16
64
ADAPTER/L/G3/4 ASSY
65
O-RING/1B,P24
66
PIPE/HST COMP
67
ADAPTER/L/PF3/8 ASSY
68
O-RING/1B,P14
69
1747-509-720-00
70
K234-006-000-20
71
K233-013-000-00
72
O-RING/1B,S16
73
O-RING/1B,P20
74
FILTER/LINE/12X18X15
75
RING/O/F404/1015
76
PLUG/SCREW/SEAL
77
1747-509-075-00
78
1747-509-074-00
79
1764-178-022-00
80
1747-509-731-00
81
BOLT,S/M8X20
82
K200-180-000-20
83
ADAPTER/90DEG/PUMP
84
V211-260-806-50
85
Adapter
86
ADAPTER/90DEG/PUMP
87
Schlauch 400
88
BOLT,S/M10X25/7T
89
1747-509-076-00
90
V201-360-807-00
91
WASHER,SP/M8
92
NUT/M8/7T
93
WASHER,SP/M8
94
WASHER,PL/M8
95
Schlauch 800
96
Schlauch 800
97
Schlauch 700
98
ADAPTER/L/G1/4 ASSY
99
O-RING/1B,P11
100
1342-402-006-00
101
1747-509-700-00
102
V203-361-603-00
103
WASHER,SP/M16
104
Hydraulikzylinder
105
ADAPTER/45DEG
106
Schlauch 400
107
Schlauch 700
108
1342-402-006-00
109
Bolzen, mit Halteblech
110
V211-560-801-60
111
Bolzen Typ=H-16-51-0-000
112
V211-560-801-60
113
NIPPLE,GREASE
114
V401-160-006-00
