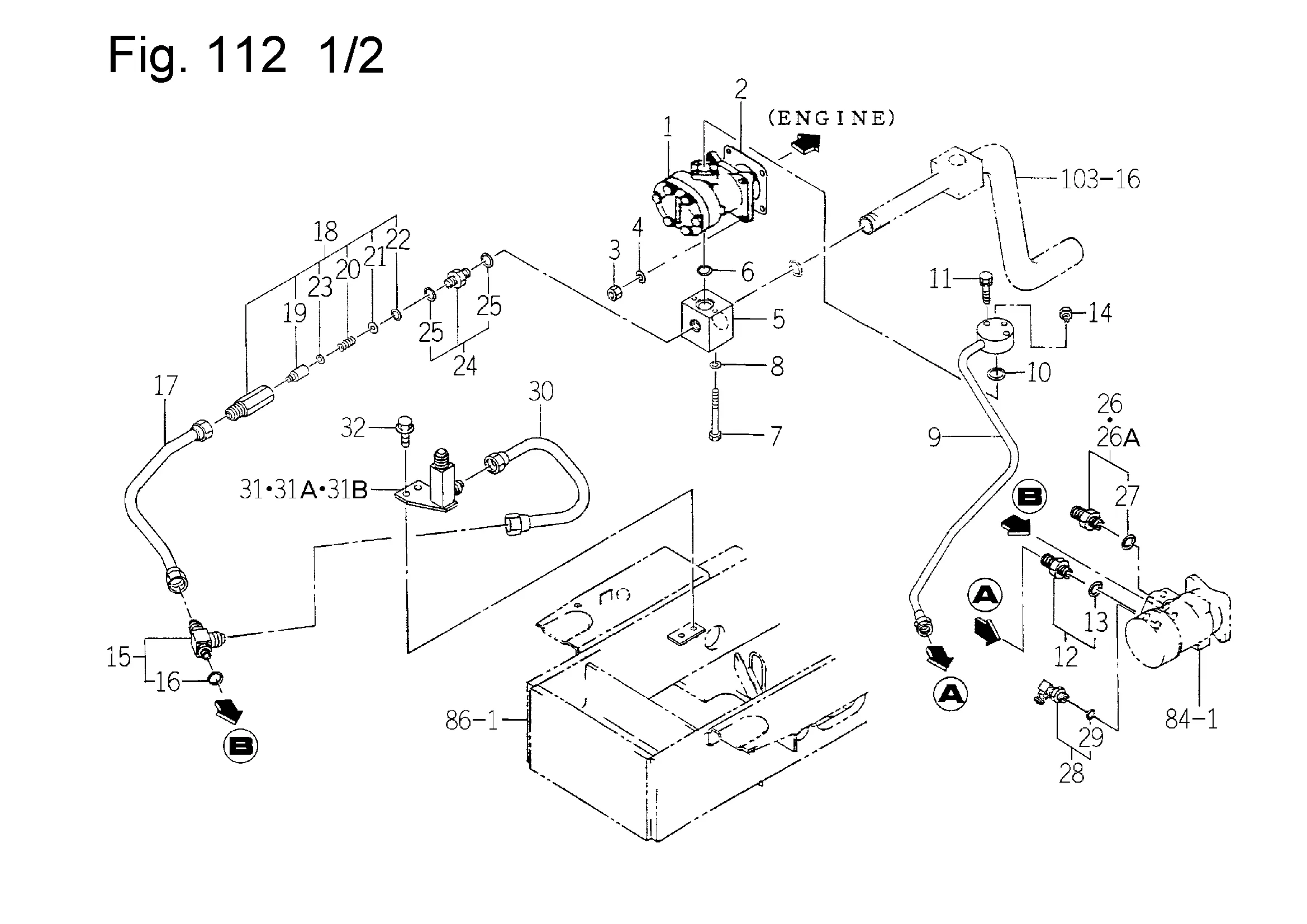

Hydraulik, Lenkung HST-Betät. mechan.
Ersatzteile (69 Teile)
1
Hydraulikpumpe
2
PACKING,OIL PUMP
3
NUT/M8
4
WASHER,SP/M8
5
1743-509-001-00
6
O-RING/1B,P20
7
V200-360-607-00
8
V401-160-006-00
9
Hydraulikleitung
10
O-RING/1B,P20
11
BOLT,S/M6X35/7T
12
Adapter
13
O-RING/1B,P11
14
PLUG/SCREW/SEAL
15
Adapter, T-Stück
16
O-RING/1B,P11
17
Hydraulikleitung
18
Rückschlagventil
19
Einsatz
20
SPRING/HC024
21
Scheibe 4/14/2
22
RING,SNAP/15 C
23
COLLAR/06X10X02
24
1656-509-300-00
25
O-RING/1B,P14
26
UNION/STRAIGHT/ ASSY
26A
ADPTER/G1/4.1/4
27
O-RING/1B,P11
28
ADAPTER/L/G1/4 ASSY
29
O-RING/1B,P11
30
PIPE/COOLER/LOWER
31
1646-407-590-10
31A
1646-407-590-20
31B
Adapter
32
FLANGEBOLT/M8X16
33
Hydraulikleitung
34
CONNECTOR
35
Ölkühler
35A
1646-407-560-10
35B
Ölkühler
36
Kombimutter-M8
37
CONNECTOR
38
Hydraulikleitung
39
1646-407-590-10
39A
1646-407-590-20
39B
Adapter
40
FLANGEBOLT/M8X16
41
PAD/190
42
Leitung
43
Adapter
44
HOLDER/12
45
V231-360-801-20
46
Leitung, Hydraulikpumpe
47
ADAPTER/L/G3/4 ASSY
48
O-RING/1B,P24
49
1743-509-002-00
50
FLANGEBOLT/M8X16
51
HOLDER/12
52
V231-360-801-20
53
FILTER/CHARGE ASSY
54
Hydraulikfilter
55
FLANGEBOLT/M8X16
56
1743-509-003-00
57
FLANGEBOLT/M8X16
58
ADAPTER/L/G3/4 ASSY
59
O-RING/1B,P24
60
PIPE/HST COMP
61
ADAPTER/L/PF3/8 ASSY
62
O-RING/1B,P14
