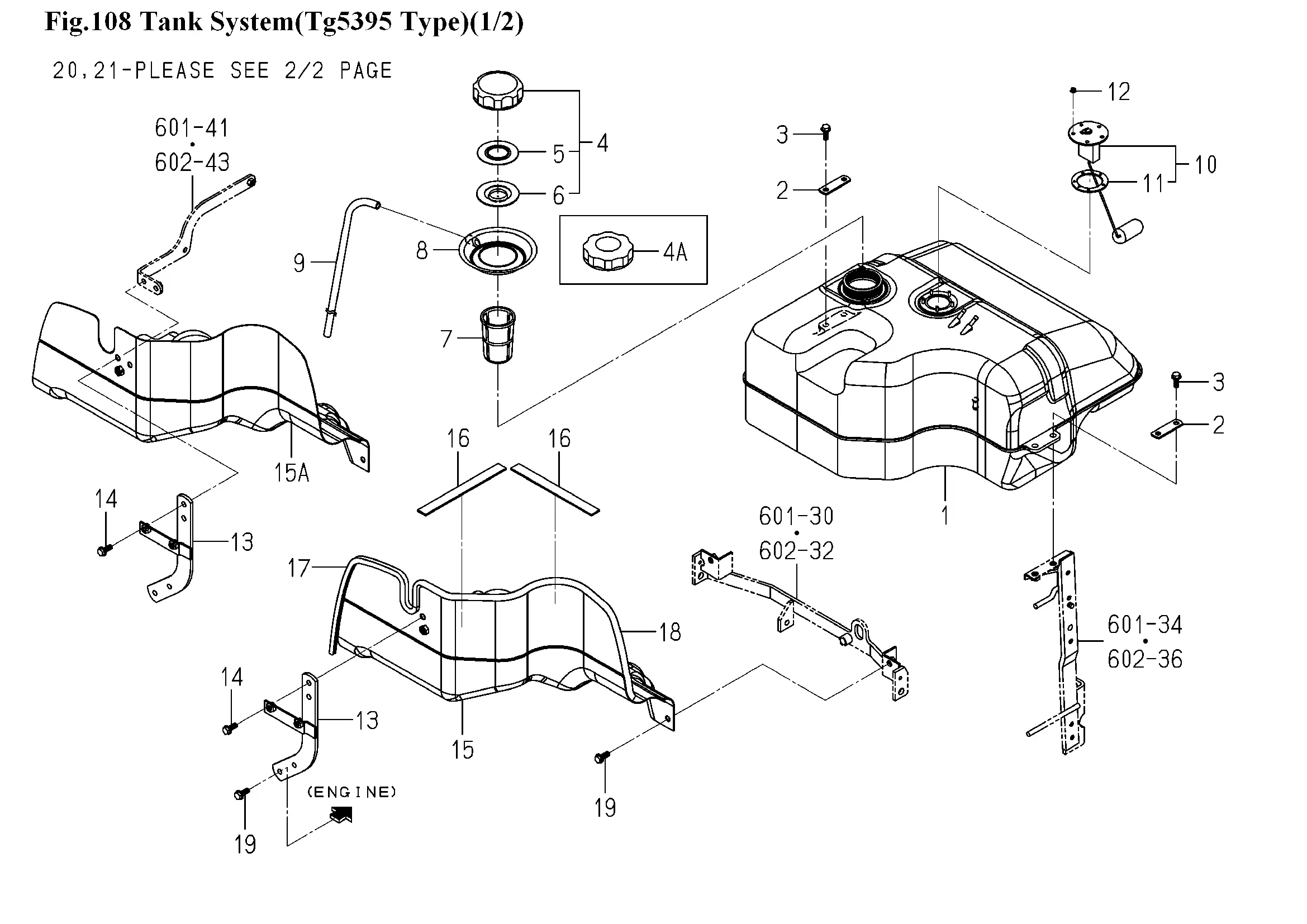

Tank
Ersatzteile (46 Teile)
1
Tank
2
1729-111-007-00
3
V231-360-802-00
4A
1729-111-280-20
5
PLATE
6
PACKING
7
FILTER/FUEL
8
CUP/FUEL
9
HOSE/700
10
GAUGE/FUEL ASSY
11
PACKING/RUBBER
12
V360-260-004-00
13
1743-111-200-00
14
V231-361-002-00
15A
1742-111-210-30
16
PLATE,RUBBER
17
1614-102-006-00
18
3814-212-003-10
19
V231-360-802-00
20
Filter, kpl.
21
LEVER
22
SPRING,VALVE
23
O-RING/1A,P10A
24
1415-102-008-00
25
NUT,RING
26
Schauglas, Kraftstofffilter
27
V720-103-504-40
28
ELEMENT
29
V201-260-806-50
30
WASHER,SP/M8
31
WASHER,PL/M8
32
HOSE/FUEL/900 ASSY
33
RESISTANCE/1.0
34
CLIP/HOSE/8.7-9.3
35
HOSE/08X13X300
36
1650-111-034-00
37
HOSE/08X13X300
38
1650-111-034-00
39
Kraftstoffpumpe
40
FLANGEBOLT/M6X16
41
HOSE/08X13X300
42
1650-111-034-00
43
HOSE/FUEL/900 ASSY
44
J062-076-082-00
45A
1742-111-240-10
46
FLANGEBOLT/M6X20
