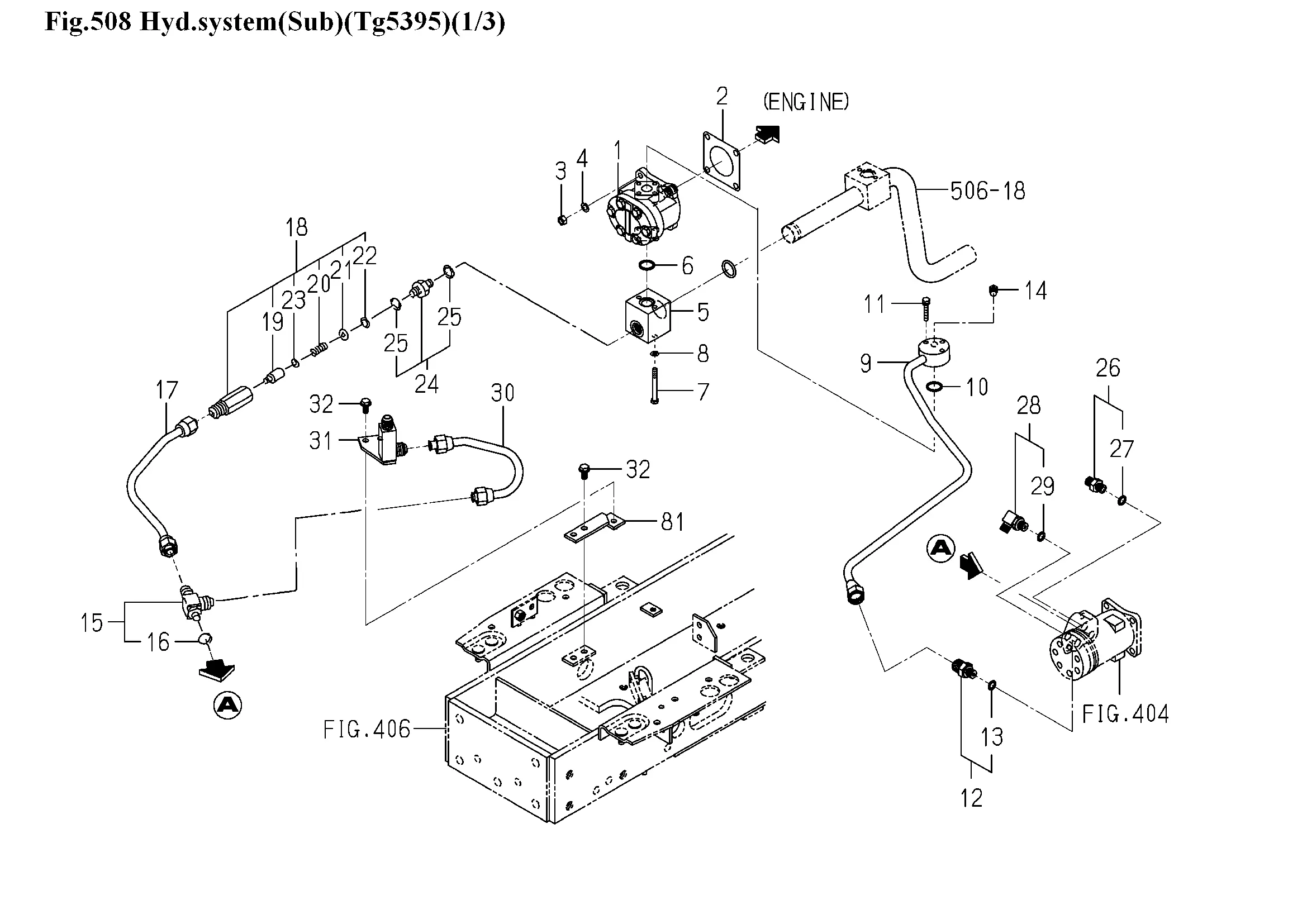

Hydraulikpumpe, Ölkühler
Ersatzteile (82 Teile)
1
Hydraulikpumpe
2
PACKING,OIL PUMP
3
NUT/M8
4
WASHER,SP/M8
5
1743-509-001-00
6
O-RING/1B,P20
7
V200-360-607-00
8
V401-160-006-00
9
Leitung, Lenkung
10
O-RING/1B,P20
11
BOLT,S/M6X35/7T
12
Adapter
13
O-RING/1B,P11
14
PLUG/SCREW/SEAL
15
Adapter, T-Stück
16
O-RING/1B,P11
17
Hydraulikleitung
18
Rückschlagventil
19
Einsatz
20
SPRING/HC024
21
Scheibe 4/14/2
22
RING,SNAP/15 C
23
COLLAR/06X10X02
24
1656-509-300-00
25
O-RING/1B,P14
26
ADPTER/G1/4.1/4
27
O-RING/1B,P11
28
ADAPTER/L/G1/4 ASSY
29
O-RING/1B,P11
30
1747-509-810-00
31
Adapter
32
FLANGEBOLT/M8X16
33
HOSE/1050 ASSY
34
CONNECTOR
35
Ölkühler
36
Kombimutter-M8
37
CONNECTOR
38
Hydraulikleitung
39
Adapter
40
FLANGEBOLT/M8X16
41
PAD/190
42
Leitung
43
Adapter
44
HOLDER/12
45
V231-360-801-20
46
1747-509-520-00
47
ADAPTER/PF3/8 ASSY
48
O-RING/1B,P14
49
1743-509-002-00
50
FLANGEBOLT/M8X16
51
HOLDER/12
52
V231-360-801-20
53
FILTER/LINE ASSY
54
Hydraulikfilter
55
FLANGEBOLT/M8X16
56
1747-509-052-00
57
V231-361-002-00
58
1747-509-051-00
59
V231-360-802-00
60
Filter, Hydraulikleitung
61
1747-509-510-00
62
O-RING/1A,P28
63
Schlauch
64
J061-224-032-00
65
ADAPTER ASSY
66
O-RING/1B,S24
67
ADAPTER/L/G1/2 ASSY
68
O-RING/1B,P14
69
HOSE/400 ASSY
70
ADAPTER/90/G/1/ ASSY
71
RING/O
72
Adapter
73
O-RING/1B,P14
74
Leitung
75
Adapter
76
O-RING/1B,P14
77
HOLDER/23
78
HOLDER/PIPE
79
V231-361-001-60
80
ADAPTER/TENP
81
1747-509-840-00
82
1342-402-006-00
