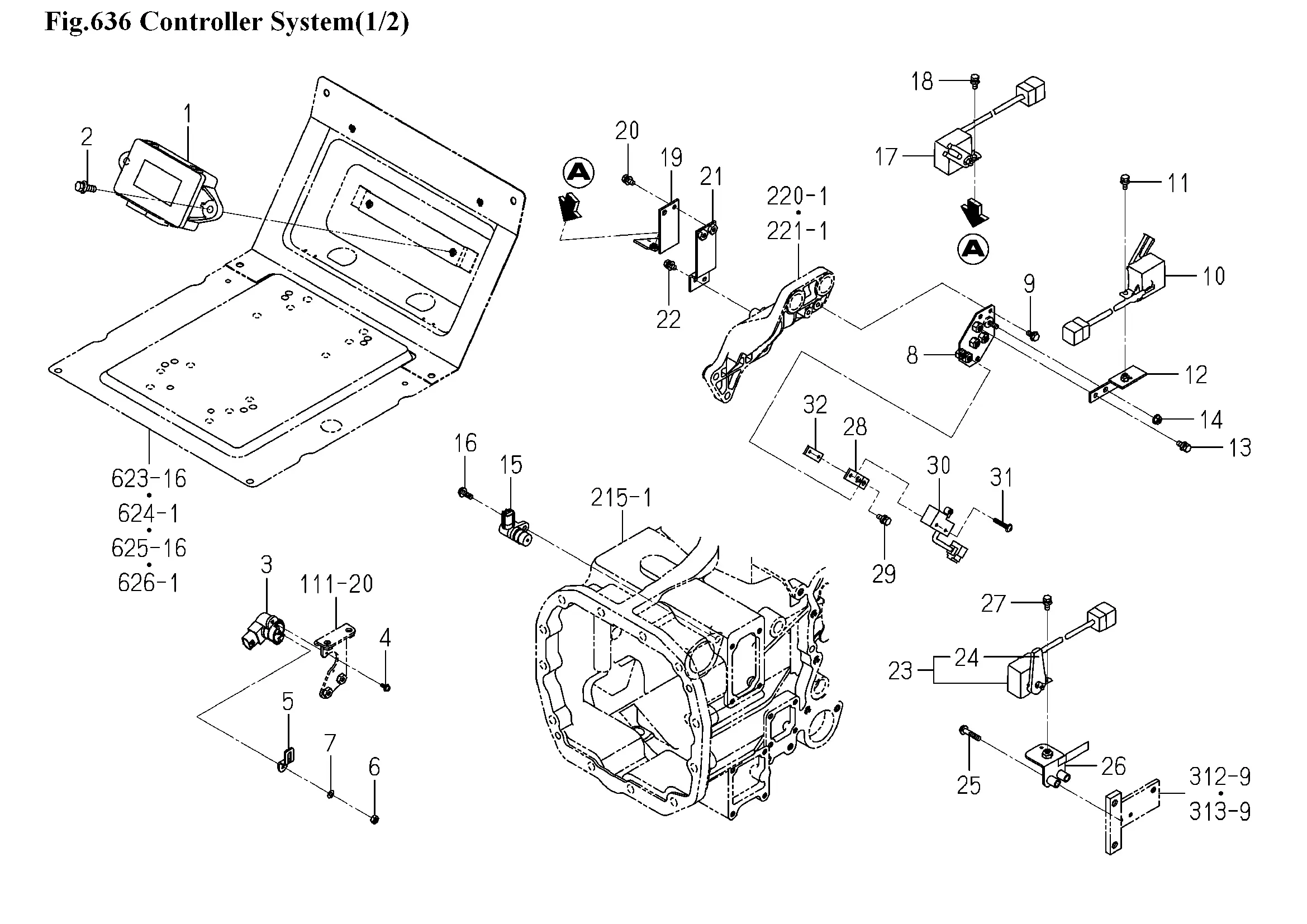

Schaltgerät
Ersatzteile (47 Teile)
1
Steuereinheit, Blackbox Bordcomputer
2
BOLT,SP/M8X25
3
SENSOR/ANGLE/75 ASSY
4
SCREW,SP/M4X12
5
Schaltarm
6
V301-260-006-00
7
V401-160-006-00
8
1746-662-240-10
9
FLANGEBOLT/M6X12
10
Sensor
11
BOLT,SP/M6X16
12
1746-662-220-00
13
BOLT,SP/M6X16
14
NUT/WASHER/M6
15
SENSOR/REVOLUTION/L
16
FLANGEBOLT/M6X16
17
Schalter (Gabel 3 Positionen)
18
BOLT,SP/M6X16
19
1743-652-520-10
20
BOLT,SP/M6X16
21
1743-652-550-00
22
V210-360-601-20
23
Bremslichtschalter
24
ARM
25
FLANGEBOLT/M6X30
26
BRACKET/SWITCH COMP
27
BOLT,SP/M6X16
28
Platte
29
BOLT,SP/M6X16
30
SWITCH,SAFETY ASSY
31
Schraube M4x30
32
Platte
33
1747-662-200-00
34
BOLT,SP/M6X16
35
1747-654-001-00
36
BOLT,SP/M8X16
37
SWITCH/VR ASSY
38
1675-695-005-00
39
SORING
40
Drehknopf
41
SWITCH/MOMENTAR ASSY
42
1747-662-072-00
43
1560-666-004-00
44
V211-660-801-60
45
1757-509-015-00
46
SENSOR/TEMP ASSY
47
HARNESS/SWITCH
