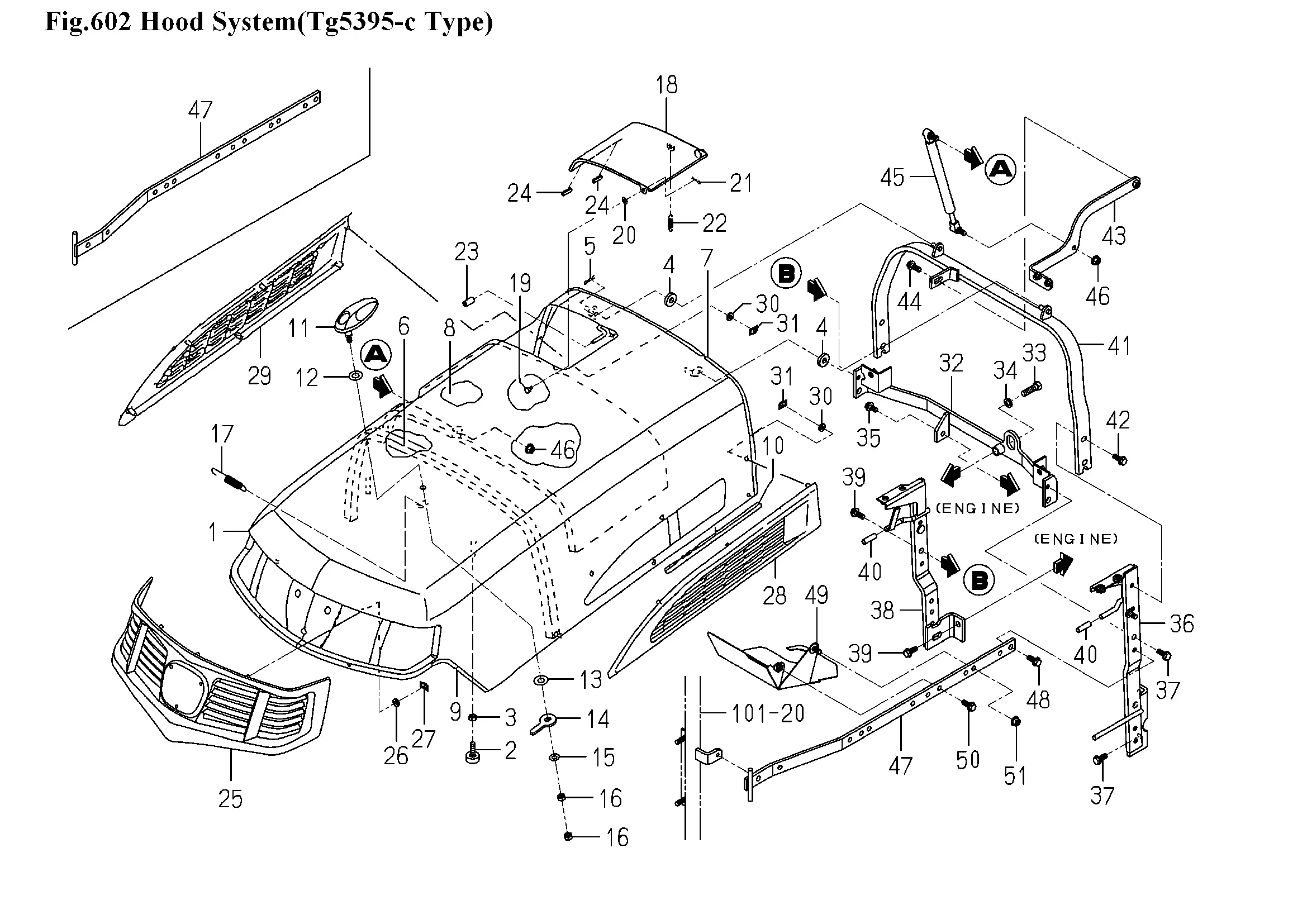

Motorhaube
Ersatzteile (51 Teile)
1
1729-601-200-70
2
1421-602-005-10
3
NUT/M8/7T
4
CUSHION/RUBBER/10X25
5
PIN/SNAP
6
1729-601-004-20
7
Dichtprofil
8
Dämmmatte
9
TRIM/150
10
TRIM/270
11
Handgriff
12
WASHER/12X25X02
13
3610-440-018-00
14
ARM/PLATE
15
WASHER,PL/M8
16
NUT/M8
17
SPRING/HE089
18
COVER COMP
19
PIN/06X07
20
V411-260-006-00
21
PIN/SNAP
22
SPRING/HE036
23
TUBE/06X10X20
24
TRIM/20
25
1729-601-001-20
26
WASHER/6X14X3
27
NUT,SPEED/M6
28
1729-601-002-20
29
1729-601-003-20
30
WASHER/6X14X3
31
NUT,SPEED/M6
32
1729-601-300-10
33
V203-361-003-50
34
WASHER,SP/M10
35
FLANGEBOLT/M8X16
36
1747-601-240-00
37
V231-360-802-00
38
1742-601-270-30
39
V231-360-802-00
40
TUBE/07X09X30
41
1729-601-240-10
42
V231-360-802-00
43
Aufsteller
44
V231-360-802-00
45
DUMPER/HOOD ASSY
46
Kombimutter-M8
47
1729-601-260-30
48
V231-360-802-00
49
1747-601-230-00
50
V231-360-802-00
51
Kombimutter-M8
