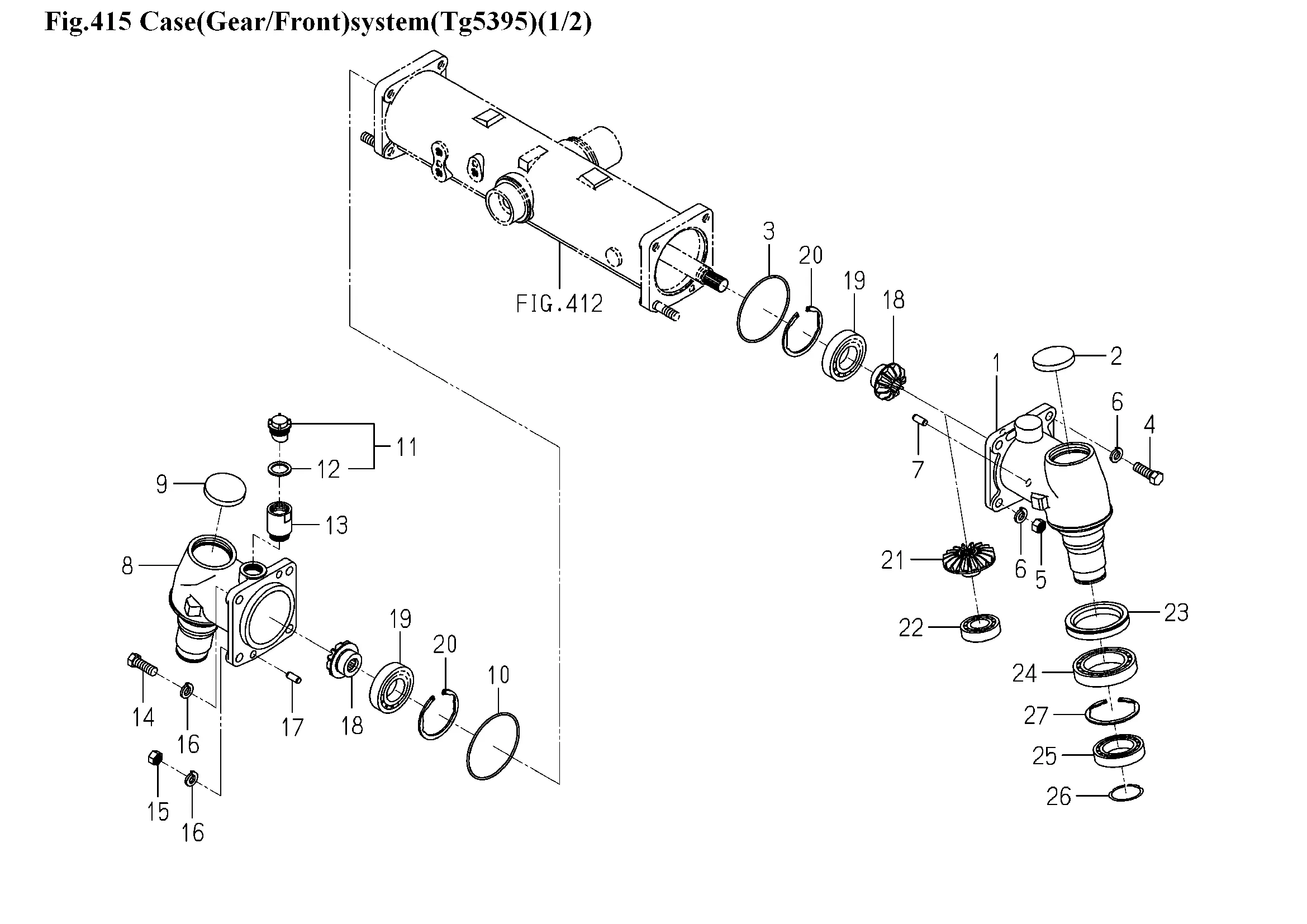

Achsgehäuse, vorne
Ersatzteile (52 Teile)
1
1729-434-001-30
2
PLUG/SEAL/65
3
O-RING/1A,G110
4
V201-361-404-00
5
NUT/M14/7T
6
WASHER,SP/M14
7
PIN,ST,B/10X24
8
1729-434-002-30
9
PLUG/SEAL/65
10
O-RING/1A,G110
11
CAP,OIL/A
12
PACKING
13
SPACER/28X38X53
14
V201-361-404-00
15
NUT/M14/7T
16
WASHER,SP/M14
17
PIN,ST,B/10X24
18
Kegelrad, 11 Zähne
19
BEARING/BALL
20
RING,SNAP/R80
21
Kegelrad, 17 Zähne
22
BEARING/BALL
23
1729-434-005-10
24
BEARING,RB/6013
25
BEARING,RB/6010
26
V706-140-050-00
27
RING,SNAP/R80
28
CASE/FINAL/LH
29
PLUG/SEAL/72X08
30
RING,SNAP/R72
31
PLUG/SCREW/SEAL
32
CAP,BLANK/M10
33
1742-434-003-30
34
PLUG/SEAL/72X08
35
RING,SNAP/R72
36
PLUG/SCREW/SEAL
37
CAP,BLANK/M10
38
SHAFT
39
GEAR/BEVEL/11
40
BEARING/BALL
41
SHAFT/WHEEL
42
GEAR/BEVEL/46
43
COLLAR/41X55X4
44
1560-434-012-30
45
BEARING/BALL
46
V600-410-620-60
47
1560-434-017-00
48
COVER/WHEEL
49
PIN,ST,B/10X24
50
V231-361-002-50
51
1746-434-001-00
52
1746-434-002-00
