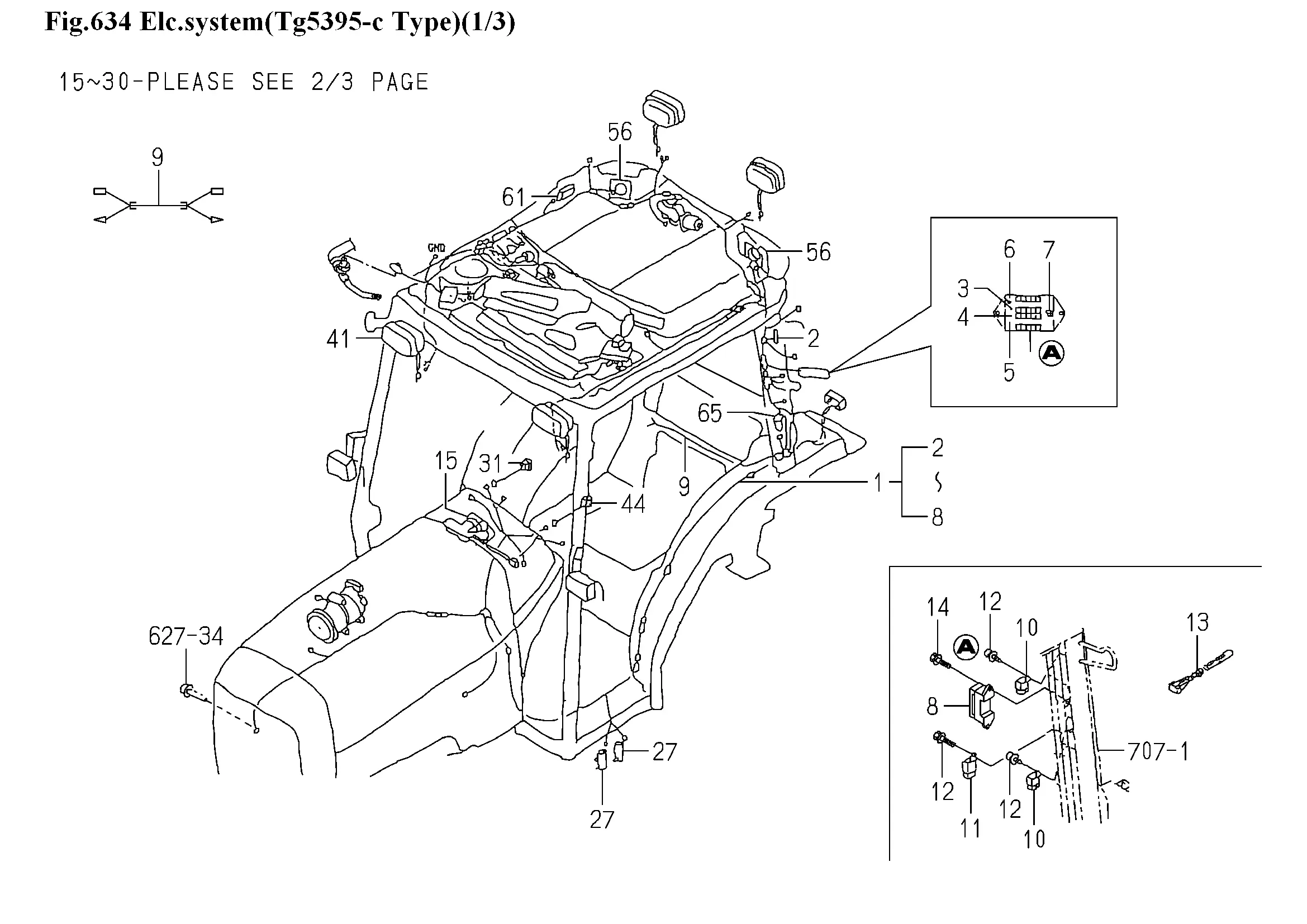

Kabelbaum, Kabine
Ersatzteile (65 Teile)
1
1747-658-210-00
2
DIODE
3
FUSE/BLADE/32V7.5A
4
FUSE/BLADE/32V15A
5
FUSE/BLADE/32V10A
6
FUSE/BLADE/32V05A
7
TOOL/FUSE
8
COVER/FUSE
9
1746-658-210-00
10
Relais Motorstart
11
Relais 5 Pol., ACA3213-1
12
V210-360-601-20
13
BAND,WIRE/140
14
BOLT,SP/M6X16
15
MOTOR/WIPER/175 ASSY
16
GROMMET
17
V301-260-006-00
18
NUT,WASHER/M6
19
Halterung für Scheibenwischermotor
20
BOLT/M6X16X16
21
1673-705-008-10
22
Wischerarm
23
BLADE/WIPER/450 ASSY
24
TANK/WASHER/2M
25
GROMMET/W/T
26
Deckel, Tank Scheibenwaschanlage
27
PUMP/W/T
28
NUT,WASHER/M6
29
1729-658-270-10
30
FLANGEBOLT/M8X16
31
Switch Wiper Assy
32
1746-658-002-00
33
Nozzle Washer Assy
34
1704-666-058-10
35
1650-658-005-00
36
1691-658-003-00
37
1757-705-011-00
38
CAP/22X38
39
1704-666-058-10
40
Ventil
41
1696-658-340-20
42
Halter, Arbeitsscheinwerfer
43
V363-260-008-00
44
REAR DIFF SWITCH
45
DIFF LOSTING MARK
46
1711-666-052-10
47
CAP/22X38
48
BOLT,SP/M6X16
49
CLAMP,WINKER B
50
1729-658-003-30
51
1742-658-220-10
52
1742-658-001-10
53
1719-720-051-00
54
FLANGEBOLT/M6X12
55
BOLT/M6X20/16
56
Lautsprecher
57
1673-666-621-00
58
V111-174-001-60
59
V360-260-004-00
60
1783-658-001-00
61
Beleuchtung, innen
62
1729-658-234-00
63
SCREW,SP/M5X20
64
V360-260-005-00
65
1742-658-210-30
