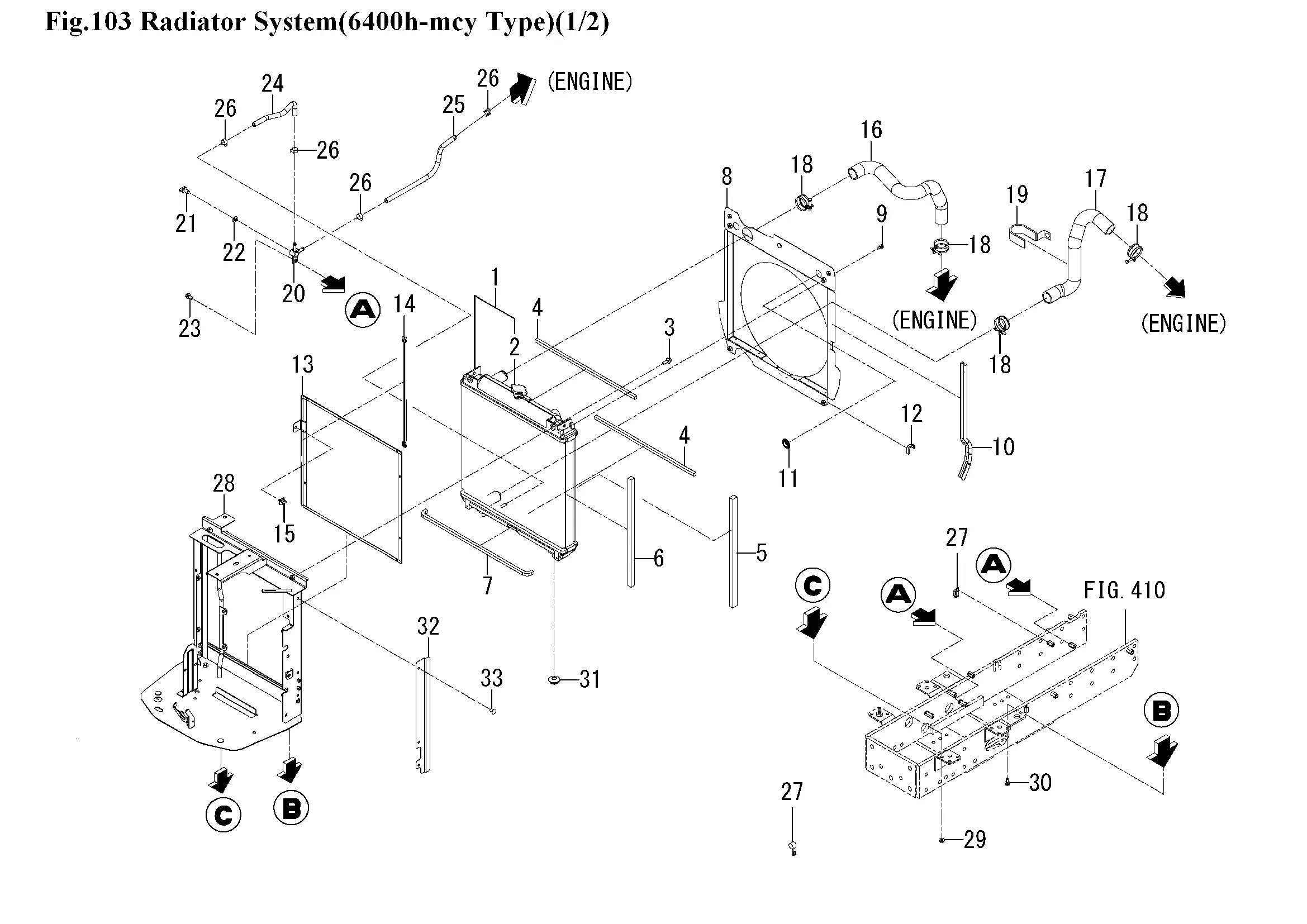

Kühler
Ersatzteile (65 Teile)
1
RADIATOR ASSY
2
CAP
3
1746-803-003-00
4
INSULATOR/10X10X450
5
INSULATOR/15X20X425
6
INSULATOR
7
INSULATOR
8
1815-102-220-10
9
1746-804-002-00
10
INSULATOR/455
11
3670-272-001-00
12
INSULATOR/55
13
NET COMP
14
PAD/470
15
LATCH ASSY
16
HOSE/RADIATOR/INLET
17
HOSE/RADIATOR/OUTLET
18
CLAMP/WIRE/36-44
19
CLAMP
20
CONNECTOR
21
1424-101-203-00
22
PACKING
23
1746-804-003-00
24
Schlauch, 8x13x580
25
Schlauch, 320
26
CLIP/HOSE/14.7-15.9
27
1675-508-003-00
28
1815-102-230-20
29
1746-816-001-00
30
1746-804-003-00
31
BUSH,LEVER
32
1815-102-005-10
33
CLIP(B)
34
1785-102-210-30
35
1746-817-001-00
36
WASHER,PL/M8
37
SPRING/HT020
38
1792-102-240-00
39
PIN/SNAP
40
1801-102-004-00
41
CAP/PARKING
42
RESERVETANK ASSY
43
CAP
44
PACKING
45
1690-102-214-00
46
1690-102-215-00
47
1690-102-216-00
48
HOSE/RUBBER
49
BAND,WIRE/140
50
1792-102-006-00
51
BOLT/SP
52
1815-102-003-00
53
INSULATOR/700
54
TRIM/160
55
PROTECTOR/185
56
1746-804-001-00
57
NUT/WASHER
58
1792-102-270-10
59
TUBE/07X09X30
60
BOLT/SP
61
1792-102-280-10
62
NUT/WASHER
63
1746-804-003-00
64
FASTENER/TURN
65
INSULATOR
