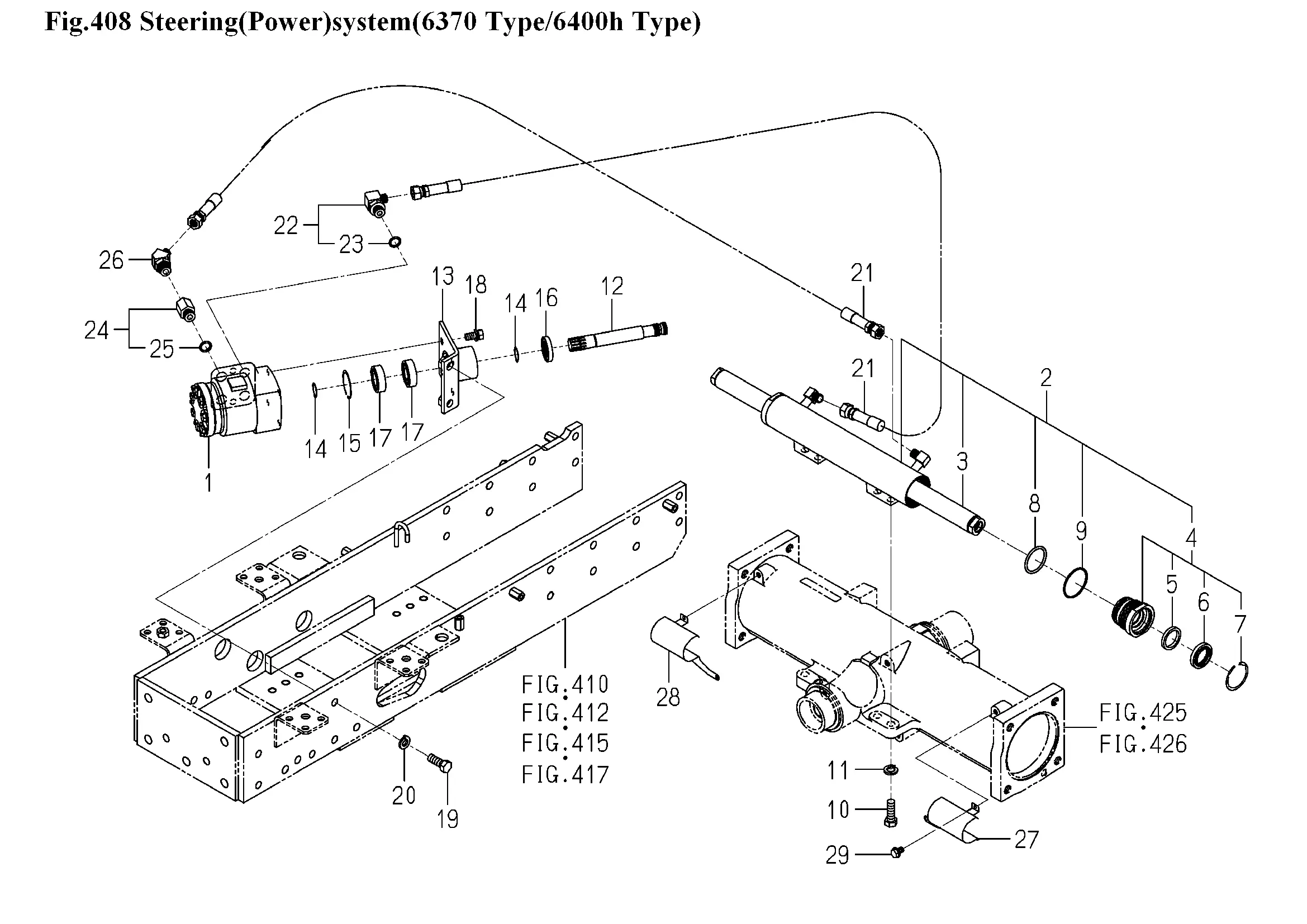

Lenkzylinder
Ersatzteile (29 Teile)
1
CONTROLER/STEERING
2
CYLINDER/015 ASSY
3
ROD/PISTON/013 SET
4
COVER/ROD/013 SET
5
PACKING/ROD
6
SEAL/DUST/DKBI/30
7
RING/SNAP
8
O-RING/1B,P40
9
O-RING/1B,S48
10
BOLT
11
WASHER,SP/M12
12
SHAFT
13
BRACKET COMP
14
RING,SNAP/20 C
15
RING,SNAP/42 C
16
Wellendichtring
17
1729-202-001-00
18
BOLT,S/M10X20/7T
19
BOLT/M12X30/7T
20
WASHER,SP/M12
21
Hydraulikschlauch, 400
22
ELBOW/90DEG ASSY
23
O-RING/1B,P14
24
ADAPTER/G3/8 ASSY
25
O-RING/1B,P14
26
Adapter
27
1801-407-002-10
28
1801-407-003-10
29
V231-360-801-20
