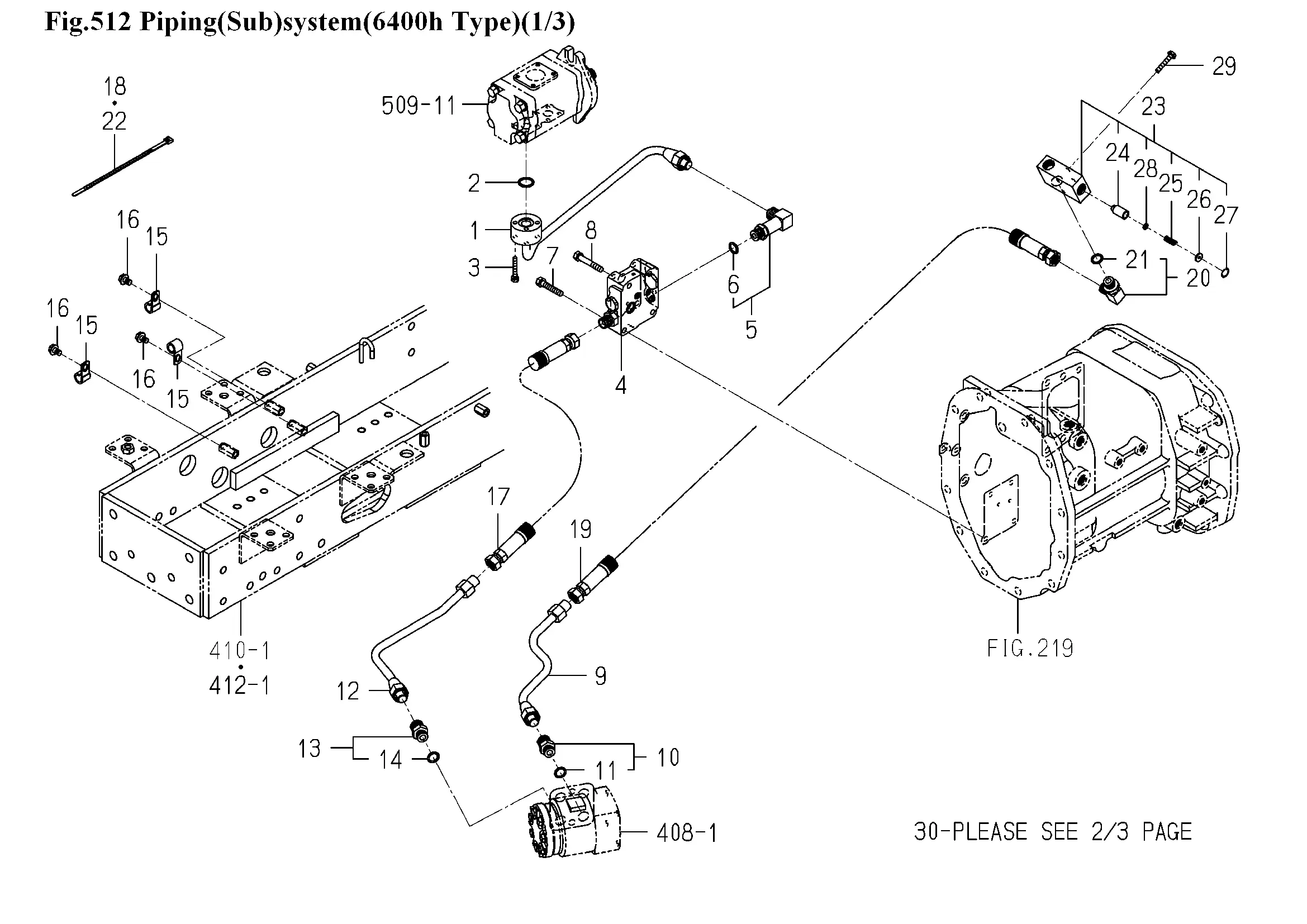

Hydraulikpumpe, Ölkühler
Ersatzteile (79 Teile)
1
PIPE/DEL/SUB/H COMP
2
O-RING/1B,P20
3
BOLT,S/M6X40/7T
4
VALVE/REDUCE/00 ASSY
5
ADAPTER/PF3/8 ASSY
6
O-RING/1B,P14
7
V211-260-804-50
8
V211-260-805-00
9
1815-509-200-10
10
ADAPTER/PF3/8 ASSY
11
O-RING/1B,P14
12
1815-509-210-10
13
ADAPTER/PF3/8 ASSY
14
O-RING/1B,P14
15
HOLDER/12
16
V231-360-801-20
17
1801-511-220-00
18
1342-402-006-00
19
1801-511-220-00
20
ADAPTER/L/G3/8 ASSY
21
O-RING/1B,P14
22
1342-402-006-00
23
Druckbegrenzungsventil, kpl.
24
Einsatz
25
SPRING/HC024
26
Scheibe 4/14/2
27
RING,SNAP/15 C
28
COLLAR/06X10X02
29
FLANGEBOLT/M6X35
30
COOLER/OIL ASSY
31
BOLT/SP
32
BOLT/M8X20(22)
33
1801-511-220-00
34
Schlauch, 80
35
J061-114-024-00
36
ADAPTER/L/G3/8
37
ADAPTER/L/G3/8 ASSY
38
O-RING/1B,P14
39
1792-509-280-00
40
Schlauch, 80
41
J061-114-024-00
42
ADAPTER/L/G3/8
43
ADAPTER/PF3/8 ASSY
44
O-RING/1B,P14
45
1342-402-006-00
46
1801-511-220-00
47
ADAPTER (G3/8B-G3/8B
48
ADAPTER/PF3/8 ASSY
49
O-RING/1B,P14
50
FILTER/LINE ASSY
51
Hydraulikfilter
52
FLANGEBOLT/M8X16
53
1747-509-052-00
54
V231-361-001-60
55
1747-509-051-00
56
V231-360-802-00
57
Filter, Hydraulikleitung
58
1747-509-510-00
59
O-RING/1A,P28
60
Schlauch
61
J061-224-032-00
62
ADAPTER ASSY
63
O-RING/1B,S24
64
ADAPTER/L/G1/2 ASSY
65
O-RING/1B,P14
66
HOSE/400 ASSY
67
ADAPTER/90/G/1/ ASSY
68
RING/O
69
ADAPTER/90/G/1/ ASSY
70
RING/O
71
HOSE/400 ASSY
72
ADAPTER/L/G1/2 ASSY
73
O-RING/1B,P14
74
ADAPTER/TENP
75
PIPE/CON/H COMP
76
ADAPTER/L/PF1/4 ASSY
77
O-RING/1B,P11
78
ADAPTOR/PF1/4 ASSY
79
O-RING/1B,P11
