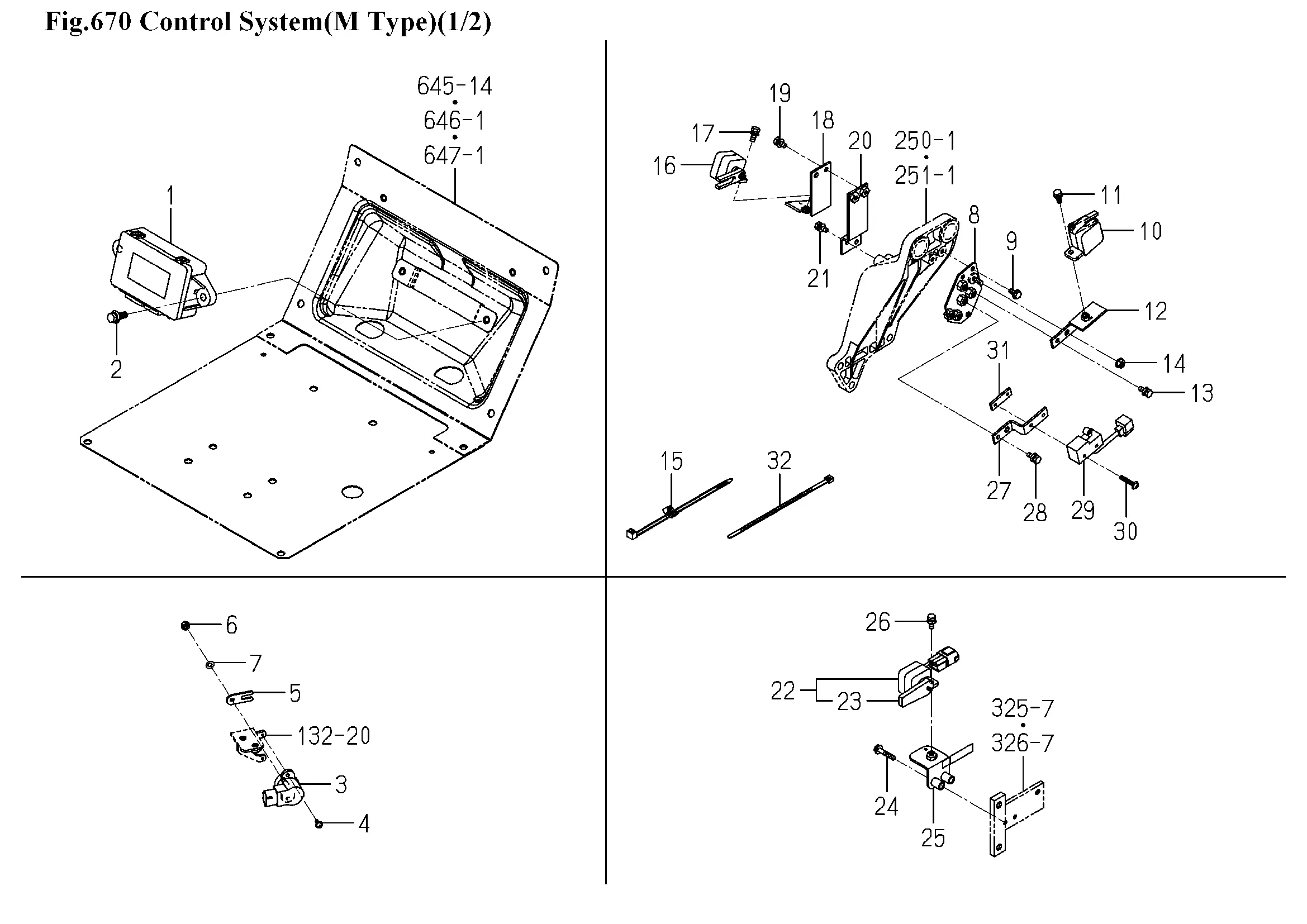

Steuereinheit, Blackbox Bordcomputer
Ersatzteile (45 Teile)
1
Steuereinheit, Blackbox Bordcomputer
2
BOLT,SP/M8X25
3
SENSOR/ANGLE/75 ASSY
4
SCREW,SP/M4X12
5
ARM/PLATE
6
V301-260-006-00
7
V401-160-006-00
8
1746-662-240-10
9
FLANGEBOLT/M6X12
10
Schalter (Gabel 3 Positionen)
11
BOLT,SP/M6X16
12
1746-662-220-00
13
BOLT,SP/M6X16
14
NUT/WASHER/M6
15
1560-666-004-00
16
Schalter (Gabel 3 Positionen)
17
BOLT,SP/M6X16
18
1743-652-520-10
19
BOLT,SP/M6X16
20
1743-652-550-00
21
V210-360-601-20
22
Bremslichtschalter
23
ARM
24
FLANGEBOLT/M6X30
25
BRACKET/SWITCH COMP
26
BOLT,SP/M6X16
27
Platte
28
BOLT,SP/M6X16
29
SWITCH,SAFETY ASSY
30
Schraube M4x30
31
Platte
32
BAND,WIRE/140
33
Schalter, PTO
34
Standlichtschalter
35
SWITCH/VR ASSY
36
1675-695-005-00
37
SORING
38
Drehknopf
39
SWITCH/MOMENTAR ASSY
40
1815-662-300-10
41
BAND,WIRE/140
42
HARNESS/SPEED ASSY
43
V111-163-001-20
44
WASHER,SP/M3
45
1807-652-003-00
