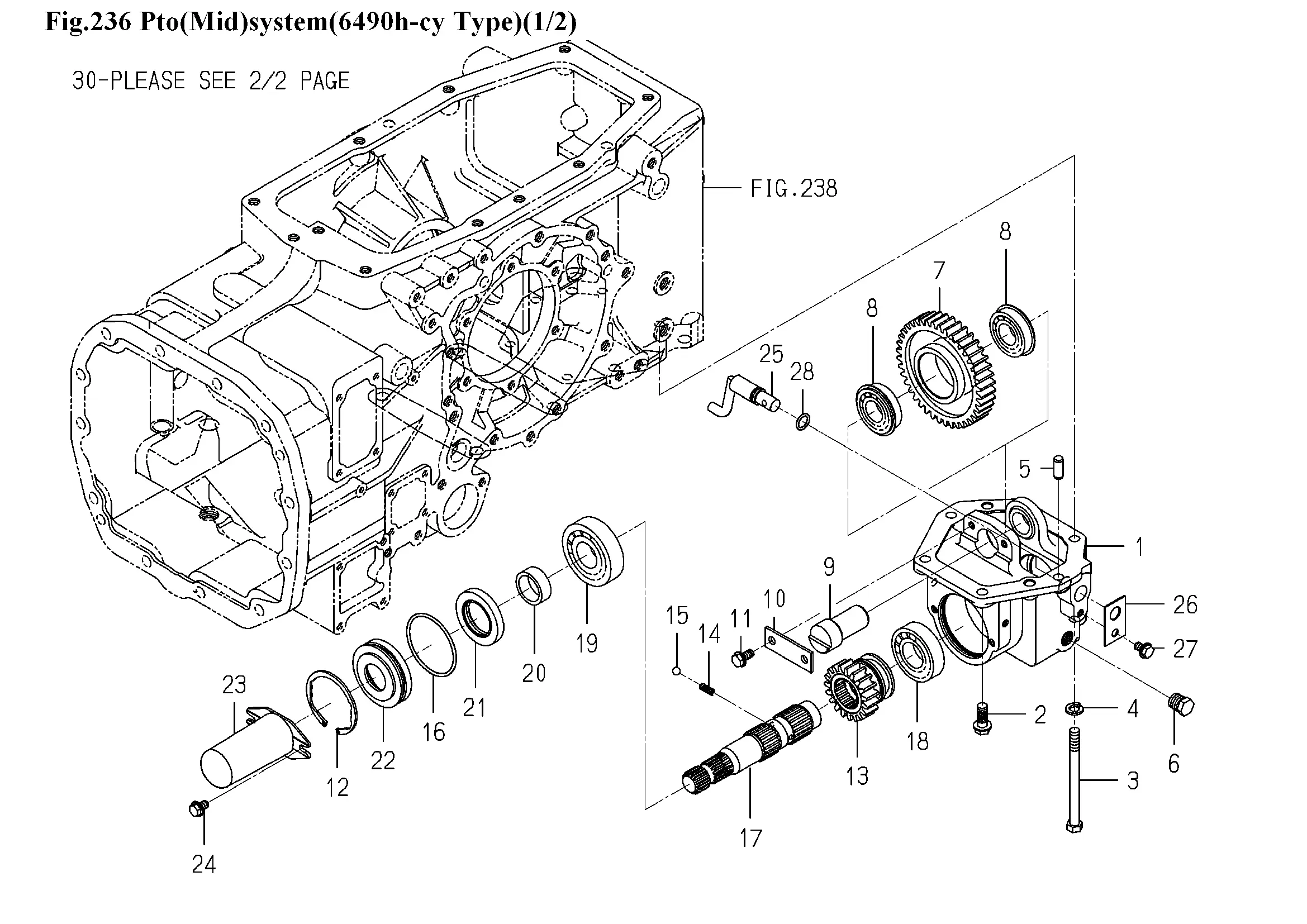

Zwischenachs PTO
Ersatzteile (40 Teile)
1
CASE/PTO
2
V231-361-002-50
3
V201-361-012-00
4
WASHER,SP/M10
5
PIN,ST,B/10X24
6
PLUG/SCREW/SEAL
7
GEAR/SPUR/40
8
BEARING,RB/6205NR
9
1742-229-004-00
10
PLATE
11
FLANGEBOLT/M8X16
12
RING,SNAP/R72
13
GEAR/SPUR/19
14
SPRING,SHIFTER
15
BALL,STEEL
16
O-RING
17
SHAFT/PTO/E3
18
V600-410-620-60
19
V600-410-630-60
20
SLEEVE
21
SEAL/OIL
22
METAL/SEAL
23
1444-314-009-10
24
V231-360-801-20
25
ARM/SHIFT/MID COMP
26
PLATE/I/30X50
27
V231-360-801-20
28
O-RING/1A,P14
29
ARM/PLATE/MID COMP
30
PIN,SPRING/6X25 W
32
1742-229-009-00
33
WASHER,PL/M8
34
PIN,SPLIT/2X20
35
1742-229-210-00
36
3640-111-001-10
37
1742-229-230-10
38
PIN,SPRING/8X28 W
39
Hebel
40
BOLT,SP/M8X25
41
GRIP/MID/PTO
