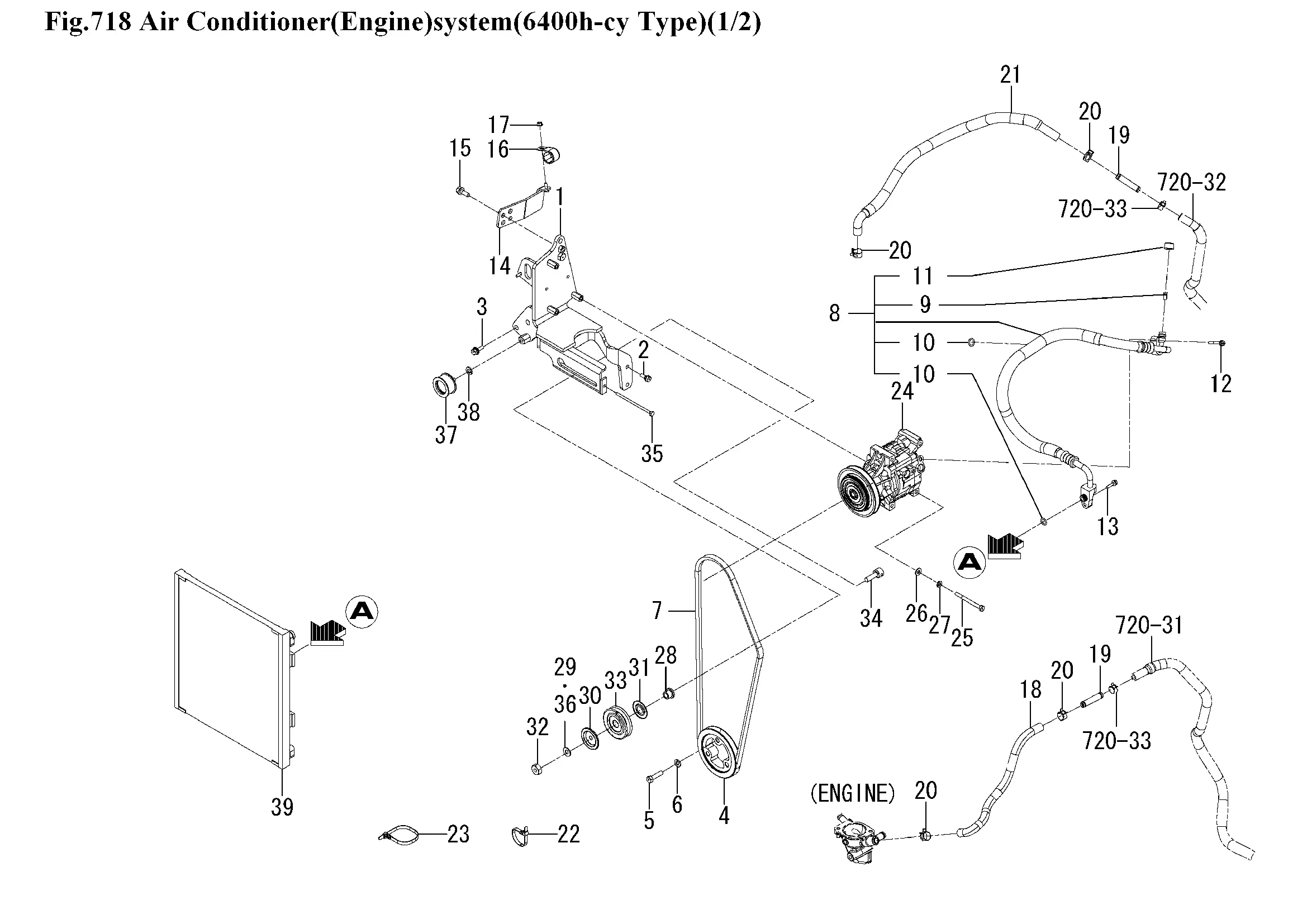

Kompressor, Klimaanlage
Ersatzteile (67 Teile)
1
1815-780-200-10
2
V211-560-802-00
3
V211-660-802-00
4
PULLY/V/120
5
V203-361-003-50
6
WASHER,SP/M10
7
BELT/V/MP/53
8
1792-780-210-10
9
1729-780-512-00
10
O-RING
11
PLUG
12
V210-360-604-50
13
BOLT/SP
14
1797-780-250-20
15
V211-261-002-50
16
1792-780-004-00
17
NUT/WASHER/M6
18
1800-780-005-10
19
1800-780-007-00
20
CLIP/HOSE/18-22
21
HOSE/HEATER/L/600
22
BAND,WIRE/140
23
1342-402-006-00
24
3824-248-990-20
25
V201-360-808-00
26
WASHER,PL/M8
27
WASHER,SP/M8
28
1599-782-531-10
29
WASHER/W
30
COVER/G1
31
COVER/G2
32
NUT
33
1599-782-540-10
34
SHAFT
35
BOLT/M06X110
36
V411-260-010-00
37
PULLEY/FT/45X20 ASSY
38
WASHER,SP/M10
39
CONDENSER ASSY
40
BOLT/SP
41
1792-780-290-10
42
1792-780-280-40
43
BOLT/M6X16X16
44
1757-780-002-00
45
1757-780-003-00
46
WASHER/6X24X2
47
V210-260-603-00
48
RECEIVER/DRYER ASSY
49
V210-360-602-00
50
1729-780-250-10
51
1759-308-001-00
52
NET/CONDENSER/310X35
53
JOINT/RECEIVER/LH
54
O-RING
55
BOLT/SP
56
PIPE/LIQUID ASSY
57
O-RING
58
BOLT,SP/M6X30
59
BOLT/S
60
RAIL/NET/CONDENSER
61
BOLT/M6X16X16
62
SCREW/M6X12
63
PIPE/SUCTION ASSY
64
1729-780-512-00
65
O-RING
66
PLUG
67
V210-360-604-50
