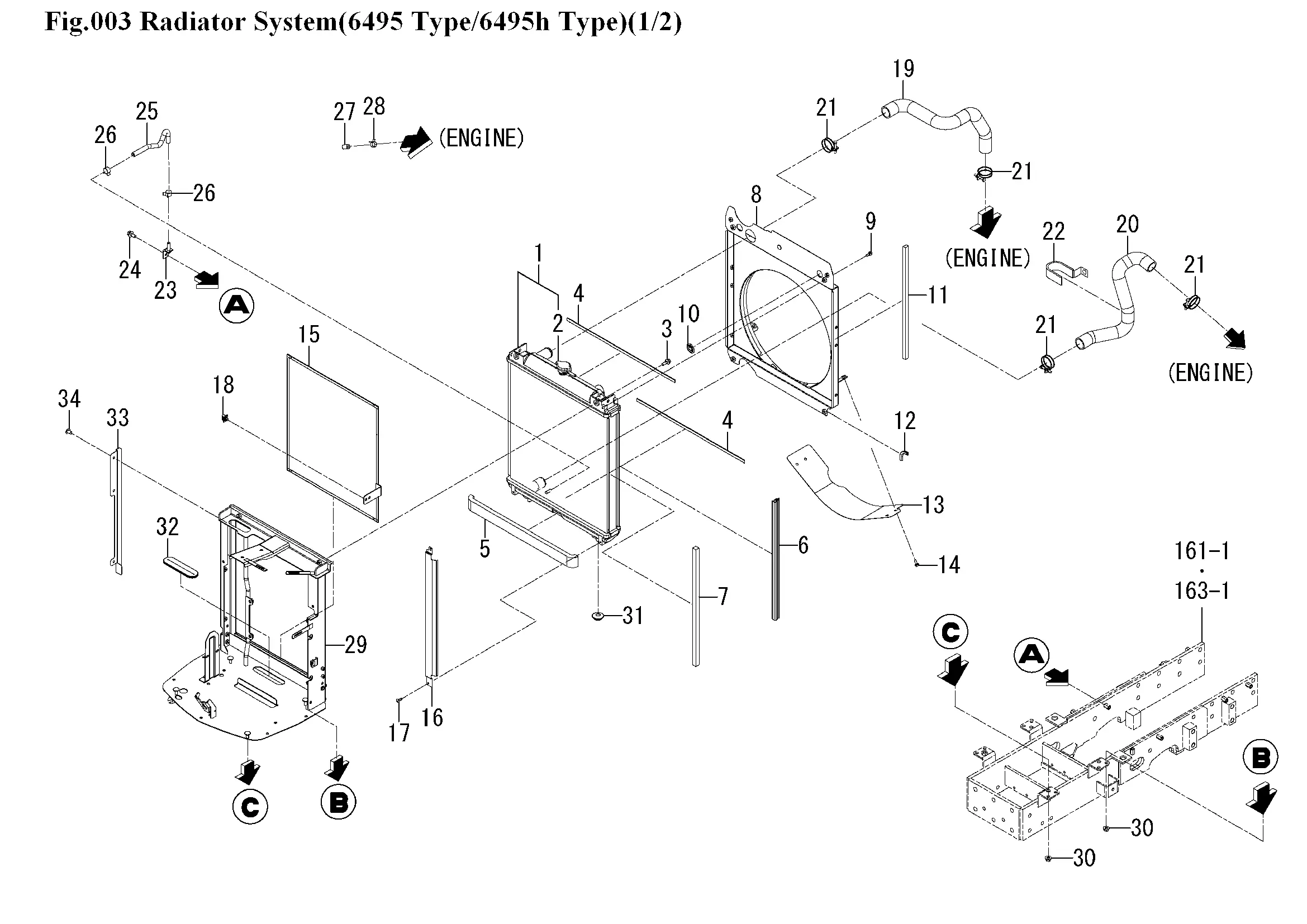

Kühler
Ersatzteile (50 Teile)
1
RADIATOR ASSY
2
CAP
3
1746-803-003-00
4
INSULATOR
5
INSULATOR/40X480
6
INSULATOR/475
7
INSULATOR/15X15X470
8
1819-102-220-00
9
1746-804-002-00
10
3670-272-001-00
11
INSULATOR
12
INSULATOR/30
13
PLATE
14
1746-804-001-00
15
PROTECTOR/NET COMP
16
1816-102-008-00
17
3676-491-005-00
18
LATCH ASSY
19
HOSE/RADIATOR/INLET
20
HOSE/RADIATOR/OUTLET
21
CLAMP/WIRE/36-44
22
CLAMP
23
1817-102-320-00
24
BOLT,SP/M8X20
25
HOSE/270
26
CLIP/HOSE/14.7-15.9
27
CAP/8
28
J062-138-148-00
29
1816-102-400-10
30
1746-816-001-00
31
BUSH,LEVER
32
1807-631-002-00
33
NET/SIDE/RH
34
CLIP(B)
35
1815-102-410-10
36
1746-817-001-00
37
WASHER,PL/M8
38
SPRING/HT020
39
1815-102-031-00
40
PIN/SNAP
41
RESERVETANK ASSY
42
CAP
43
PACKING
44
1690-102-214-00
45
1690-102-215-00
46
1690-102-216-00
47
HOSE/RUBBER
48
BAND,WIRE/140
49
1792-102-006-00
50
1746-804-003-00
