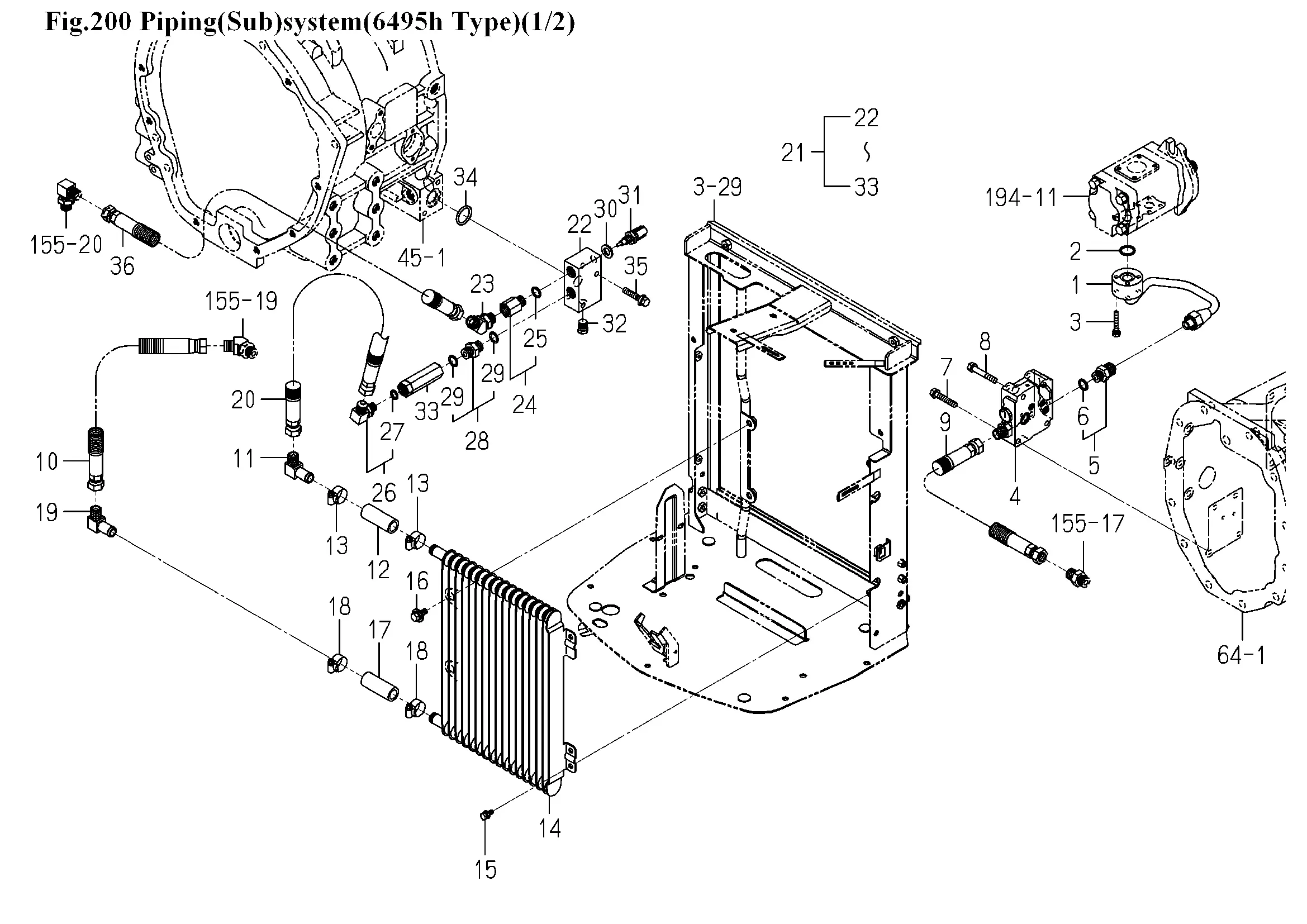

Hydraulikpumpe, Ölkühler
Ersatzteile (69 Teile)
1
PIPE/DEL/SUB/H COMP
2
O-RING/1B,P20
3
BOLT,S/M6X40/7T
4
VALVE/REDUCE/00 ASSY
5
ADAPTER/PF3/8 ASSY
6
O-RING/1B,P14
7
V211-260-804-50
8
V211-260-805-00
9
HOSE/1050 ASSY
10
1834-509-230-10
11
ADAPTER/L/G3/8
12
HOSE/60/E4
13
J061-114-024-00
14
COOLER/OIL ASSY
15
BOLT/SP
16
BOLT/M8X20(22)
17
HOSE/60/E4
18
J061-114-024-00
19
ADAPTER/L/G3/8
20
1802-509-220-10
21
1816-509-280-10
22
1816-509-001-00
23
ADAPTER (G3/8B-G3/8B
24
ADAPTER/G3/8 ASSY
25
O-RING/1B,P14
26
ADAPTER/L/G3/8 ASSY
27
O-RING/1B,P14
28
1656-509-300-00
29
O-RING/1B,P14
30
1757-509-015-00
31
SENSOR/TEMP ASSY
32
PLUG/SCREW/SEAL
33
1806-509-281-00
34
O-RING/1B,P26,HS90
35
BOLT,SP/M8X45
36
1837-512-600-10
37
1815-509-032-00
38
1560-666-004-00
39
1440-105-006-00
40
FLANGEBOLT/M8X16
41
FILTER/LINE ASSY
42
Hydraulikfilter
43
FLANGEBOLT/M8X16
44
1747-509-052-00
45
V231-361-001-60
46
1747-509-051-00
47
V231-360-802-00
48
1738-508-210-10
49
1747-509-510-00
50
O-RING/1A,P28
51
1675-508-004-10
52
J061-224-032-00
53
ADAPTER ASSY
54
O-RING/1B,S24
55
ADAPTER/L/G1/2 ASSY
56
O-RING/1B,P14
57
1747-509-570-10
58
ADAPTER/90/G/1/ ASSY
59
RING/O
60
ADAPTER/90/G/1/ ASSY
61
RING/O
62
1747-509-570-10
63
ADAPTER/L/G1/2 ASSY
64
O-RING/1B,P14
65
PIPE/CON/H COMP
66
ADAPTER/L/PF1/4 ASSY
67
O-RING/1B,P11
68
ADAPTOR/PF1/4 ASSY
69
O-RING/1B,P11
