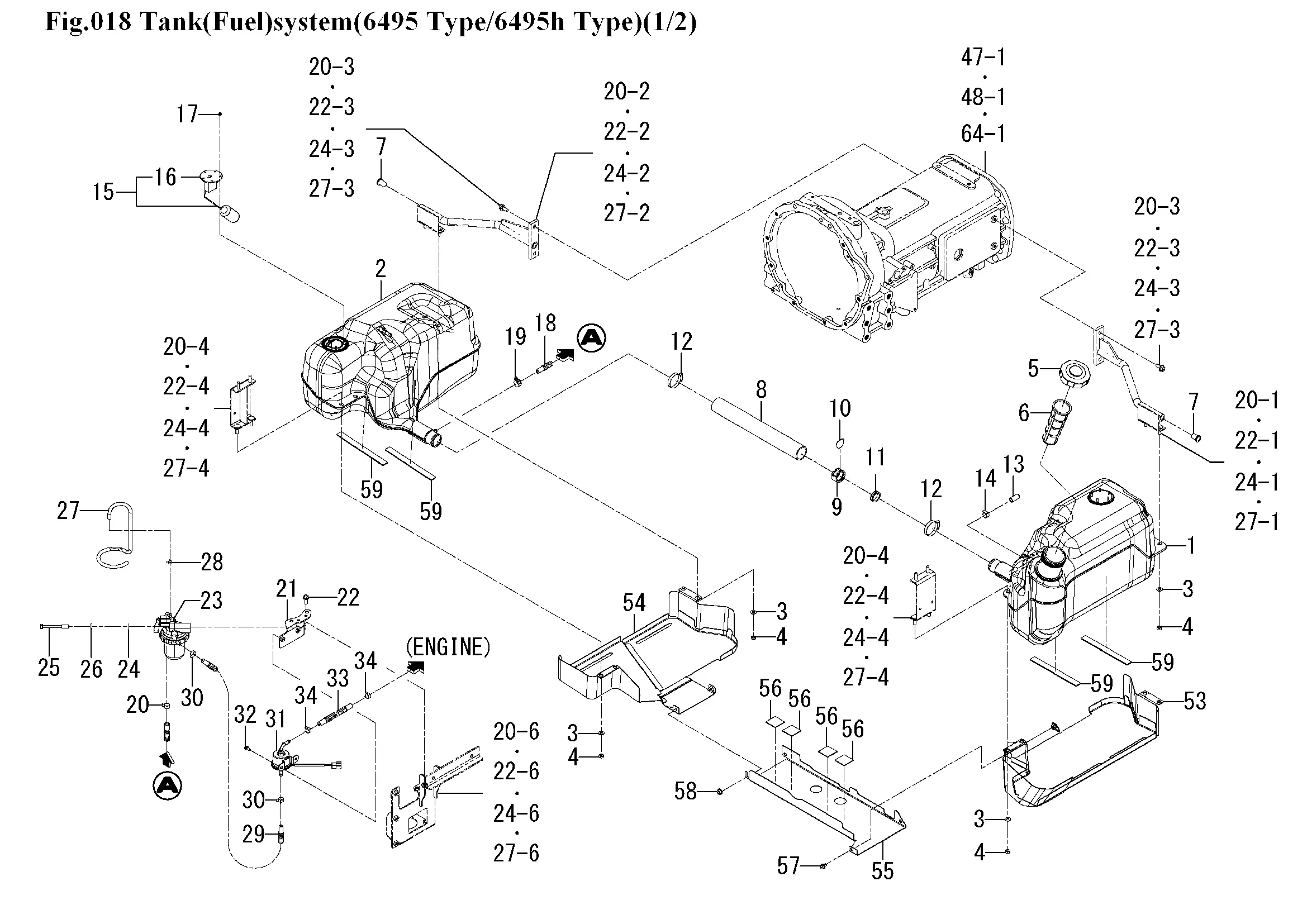

Tank
Ersatzteile (59 Teile)
1
1796-111-001-10
2
1796-111-002-10
3
WASHER,PL/M8
4
1719-312-001-00
5
CAP/FUEL ASSY
6
FILTER/FUEL
7
CAP,BLANK/M16
8
1796-111-006-00
9
1757-111-027-30
10
1757-111-028-30
11
1817-111-002-00
12
1696-508-002-00
13
1518-111-006-00
14
CLIP/HOSE/14.7-15.9
15
GAUGE/FUEL ASSY
16
PACKING/RUBBER
17
V360-260-004-00
18
1815-111-450-00
19
J062-138-148-00
20
CLIP/HOSE/14.7-15.9
21
1815-111-430-00
22
V231-360-802-00
23
FILTER/FUEL ASSY
24
WASHER,PL/M8
25
BOLT/M8X80
26
WASHER,SP/M8
27
6909-913-849-00
28
CLIP/HOSE/8.7-9.3
29
1815-111-460-00
30
J062-138-148-00
31
1703-105-210-10
32
FLANGEBOLT/M6X12
33
HOSE/FUEL/1500 ASSY
34
CLIP/HOSE/12.6-13.4
35
HOSE/FUEL/900 ASSY
36
J062-076-082-00
37
1792-111-015-10
38
HOSE/FUEL/300
39
J062-138-148-00
40
1342-402-006-00
41
CLAMP
42
TUBE/120
43
HOSE/FUEL/70
44
HOSE/FUEL/900 ASSY
45
CLIP/HOSE/14.7-15.9
46
CLIP/HOSE/14.7-15.9
47
1801-111-260-20
48
JOINT/T
49
J062-138-148-00
50
HOLDER/JE/9-9
51
1675-407-003-00
52
FLANGEBOLT/M6X10
53
1816-111-300-00
54
COVER/TANK/E4 COMP
55
COVER/UNDER/HST
56
CUSHION,RUBBER
57
V231-360-801-20
58
Kombimutter-M8
59
PLATE,RUBBER
