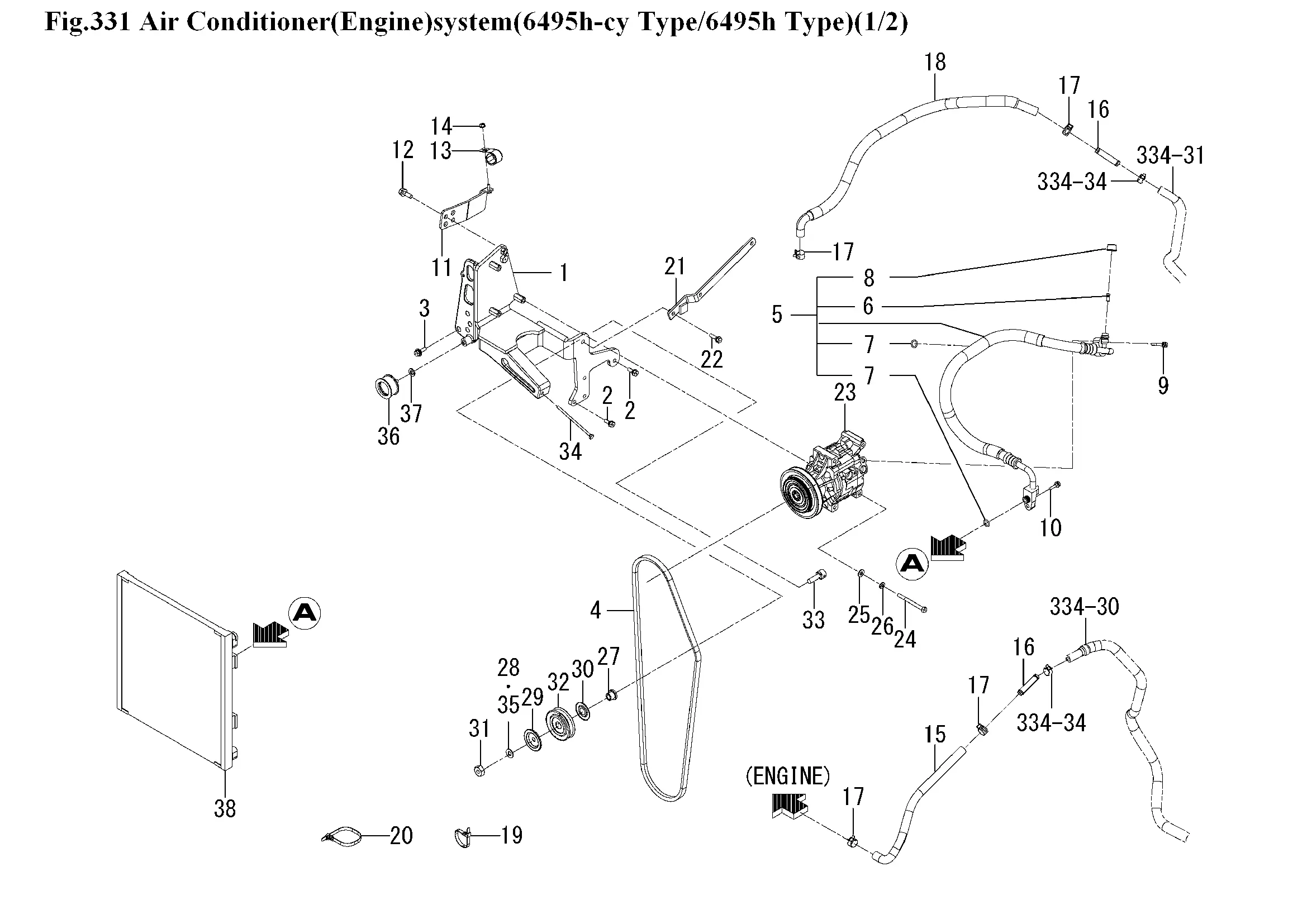

Kompressor, Klimaanlage
Ersatzteile (69 Teile)
1
1796-780-200-10
2
V211-560-802-00
3
V211-660-802-00
4
BELT/V/MP/57
5
1801-780-210-10
6
1729-780-512-00
7
O-RING
8
PLUG
9
V210-360-604-50
10
BOLT/SP
11
1797-780-250-20
12
V211-261-002-50
13
1792-780-004-00
14
NUT/WASHER/M6
15
1716-780-005-20
16
1800-780-007-00
17
CLIP/HOSE/18-22
18
HOSE/HEATER/L/800
19
BAND,WIRE/140
20
1342-402-006-00
21
1796-780-260-20
22
BOLT,S/M8X25/7T
23
3824-248-990-20
24
V201-360-808-00
25
WASHER,PL/M8
26
WASHER,SP/M8
27
1599-782-531-10
28
WASHER/W
29
COVER/G1
30
COVER/G2
31
NUT
32
1599-782-540-10
33
SHAFT
34
BOLT/M06X110
35
V411-260-010-00
36
PULLEY/FT/45X20 ASSY
37
WASHER,SP/M10
38
CONDENSER ASSY
39
BOLT/SP
40
1792-780-290-10
41
1792-780-280-40
42
1815-802-001-00
43
1757-780-002-00
44
1757-780-003-00
45
WASHER/6X24X2
46
1815-802-002-00
47
1817-780-300-00
48
1690-780-001-00
49
1815-802-001-00
50
RECEIVER/DRYER ASSY
51
BOLT/SP
52
1729-780-250-10
53
1759-308-001-00
54
NET/CONDENSER/310X35
55
JOINT/RECEIVER/LH
56
O-RING
57
BOLT/SP
58
PIPE/LIQUID ASSY
59
O-RING
60
BOLT/SP
61
BOLT/S
62
RAIL/NET/CONDENSER
63
1815-802-001-00
64
SCREW/SP
65
PIPE/SUCTION ASSY
66
1729-780-512-00
67
O-RING
68
PLUG
69
V210-360-604-50
