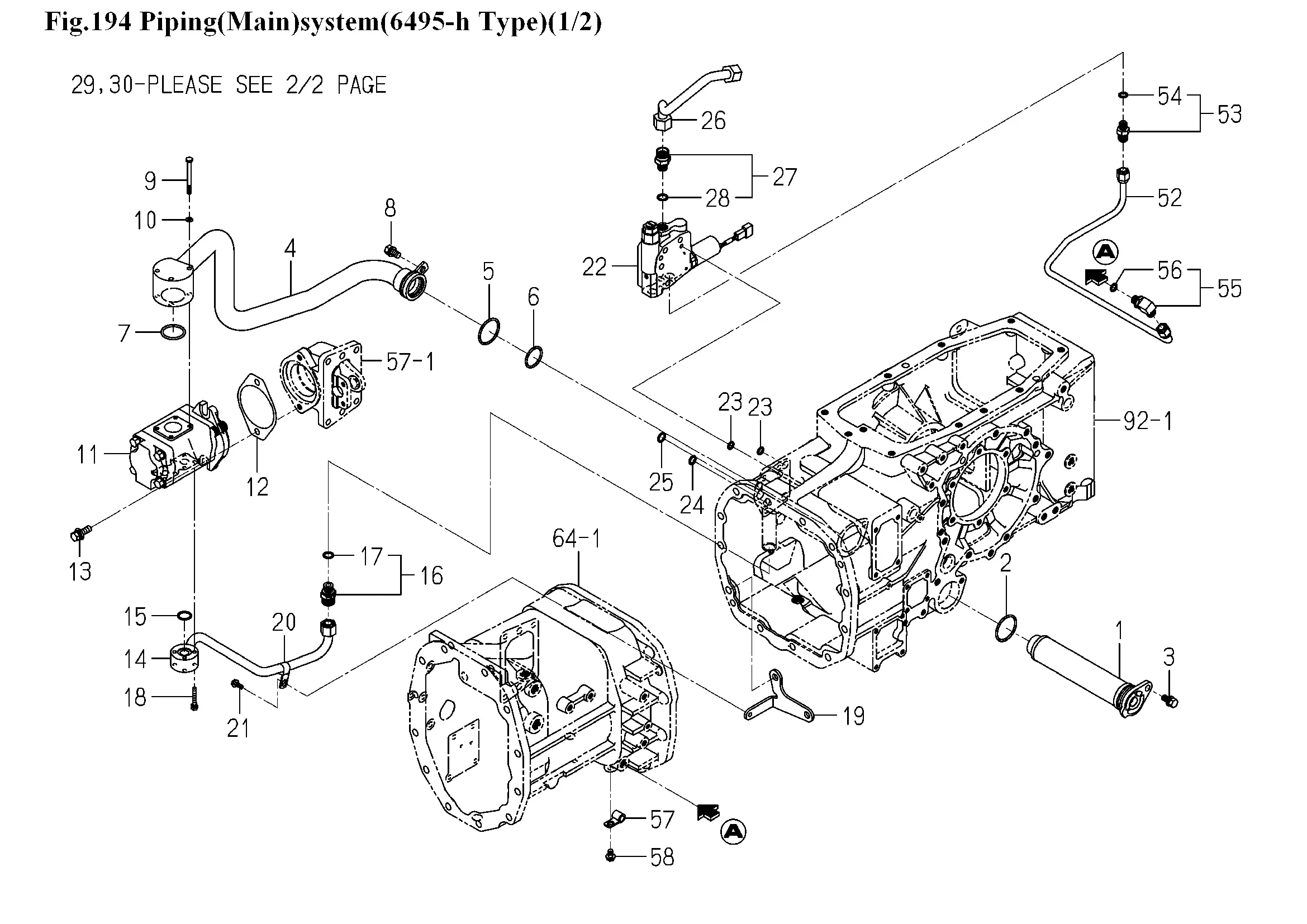

Hydraulikfilter, Leitungen
Ersatzteile (58 Teile)
1
FILTER/SUCTION/400
2
O-RING/1A,G45
3
BOLT,SP/M10X25
4
PIPE/SUC/H COMP
5
O-RING/1A,G45
6
O-RING/1A,G35
7
O-RING/1B,P36
8
BOLT,S/M10X20
9
V200-360-607-00
10
V401-160-006-00
11
PUMP/GEAR/16-9 ASSY
12
GASKET/PUMP
13
BOLT,SP/M10X30/7T
14
PIPE/DEL/FRONT/ COMP
15
O-RING/1B,P20
16
1729-508-290-20
17
O-RING/1B,P14
18
BOLT,S/M6X40/7T
19
1801-508-051-00
20
1675-508-003-00
21
FLANGEBOLT/M8X16
22
K200-251-000-20
23
O-RING/1B,P10A
24
O-RING/1B,P12
25
O-RING/1B,P14
26
1742-508-270-20
27
1729-508-290-20
28
O-RING/1B,P14
29
VALVE/CONTROL/107
30
1742-508-009-10
31
V211-260-806-50
32
V211-260-805-00
33
VALVE,RELIEF ASSY
34
O-RING/1B,P12
35
O-RING/1B,P18
36
K231-008-000-20
37
O-RING/1B,P10A
38
RING/BACK UP
39
COLLAR/11X21X03
40
RING/SNAP
41
SEAL,DUST
42
O-RING/1B,P22
43
O-RING/1B,P16
44
NUT/M10
45
1568-507-001-10
46
COVER/SHAFT COMP
47
V201-260-802-00
48
NUT/M8
49
KNOB
50
SCREW/M6X40
51
V401-160-006-00
52
PIPE/PTO/H COMP
53
ADAPTOR/PF1/4 ASSY
54
O-RING/1B,P11
55
ADAPTER/L/PF1/4 ASSY
56
O-RING/1B,P11
57
HOLDER/10
58
V231-360-801-20
