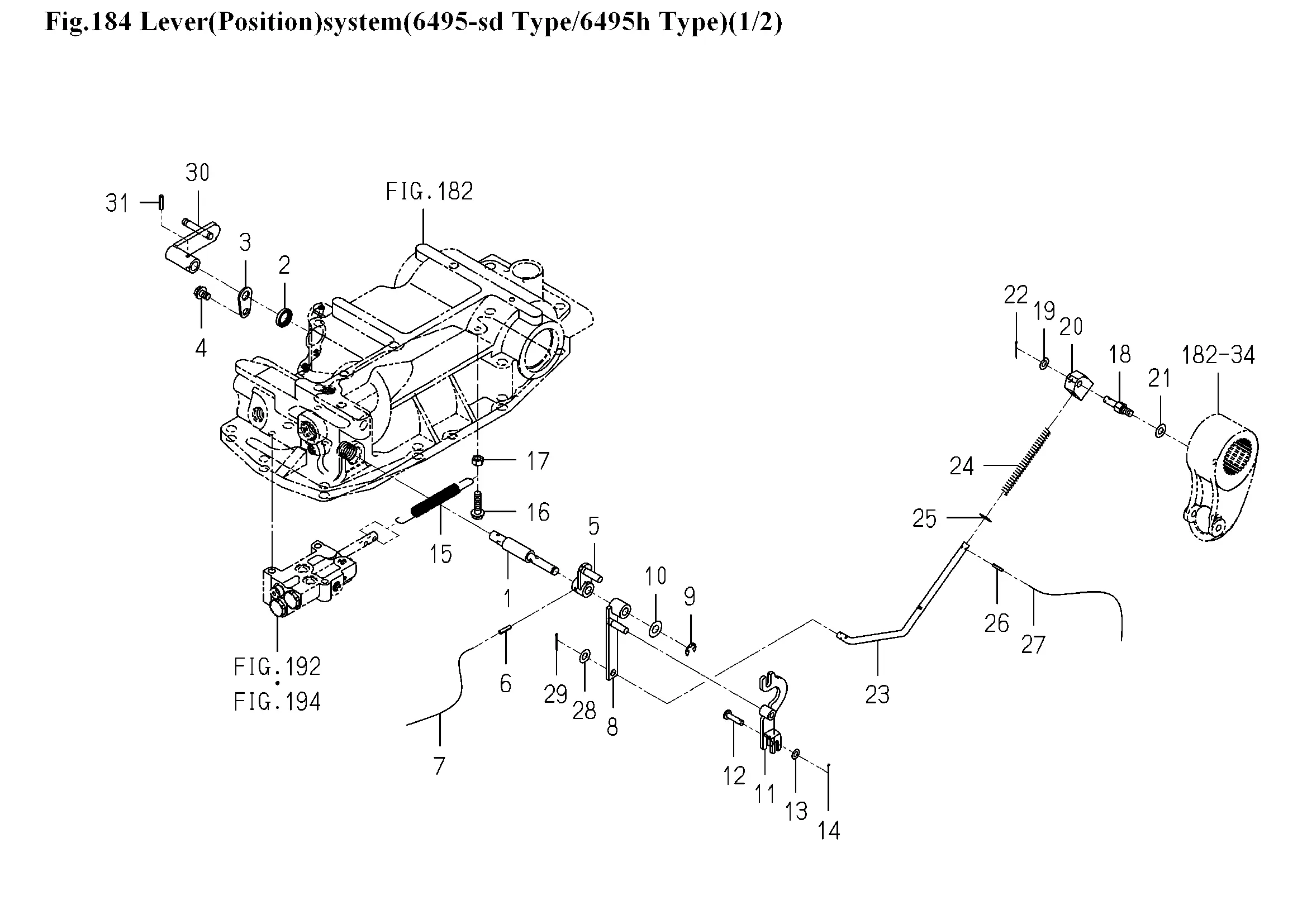

Schaltgestänge, Heckhydraulik
Ersatzteile (57 Teile)
1
PIN/10X113
2
SEAL,OIL/VC162404
3
STOPPER
4
V231-360-801-20
5
ARM COMP
6
PIN,SPRING/4X18 W
8
ARM COMP
9
RING,SNAP/8 E
10
V411-260-010-00
11
ARM
12
PIN/06X25
13
V411-260-006-00
14
PIN,SPLIT/2X20
15
SPRING
16
V231-360-803-00
17
NUT/M8
18
PIN/12X45
19
WASHER,SP/M8
20
LINK
21
WASHER,PL/M8
22
PIN,SPLIT/2X20
23
ROD
24
SPRING
25
WASHER,PL/M8
26
PIN,SPRING/3X16 W
28
WASHER,PL/M8
29
PIN,SPLIT/2X20
30
ARM COMP
31
PIN,SPRING/4X20 W
32
1744-504-210-20
33
1560-511-015-10
34
BOLT/M10X120
35
WASHER,SP/M10
36
PIN/12X128
37
BOLT/SM/M08X20
38
V305-260-012-00
39
V411-260-012-00
40
ARM COMP
41
ARM COMP
42
PIN,SPRING/4X20 W
43
SPRING
44
ROD/M08X180
45
PIN
46
NUT/M8
47
PIN/SNAP/B
48
WASHER,PL/M8
49
1815-504-200-10
50
1600-505-007-10
51
PLATE
52
SPRING/WASHER
53
V411-260-010-00
54
V335-260-010-00
55
1815-504-031-00
56
BOLT,SP/M8X20
57
INSULATOR/LEVER/SUB
58
GRIP/03X17X97
59
V112-165-001-20
