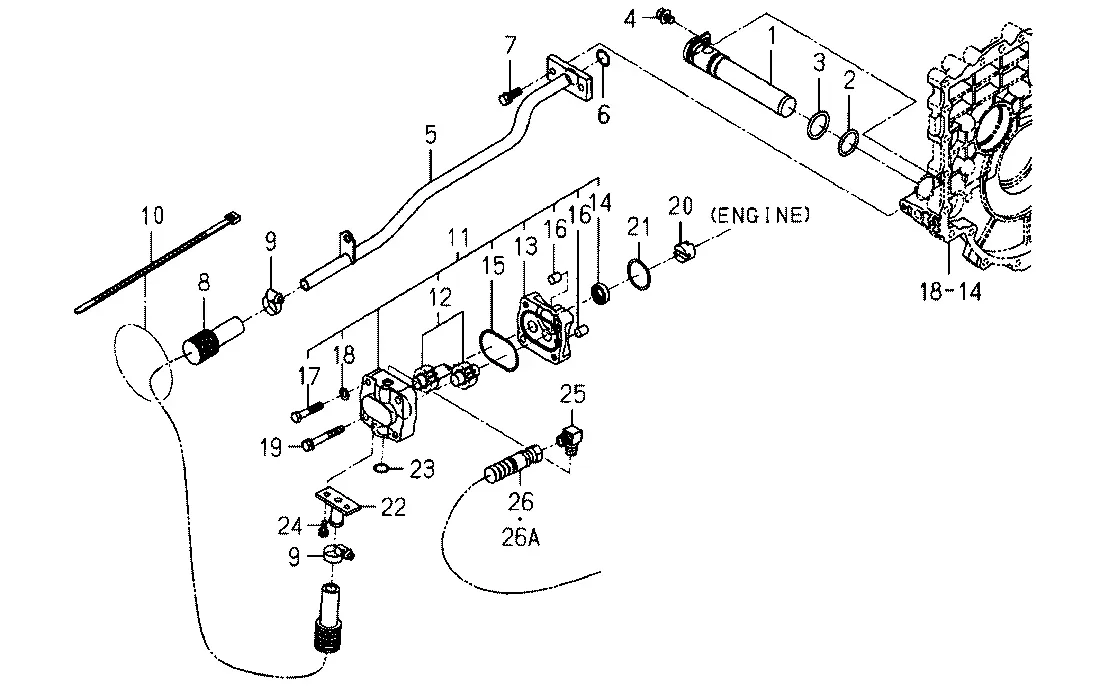

Hydraulipumpe,Filter SGR17 bis Ser. Nr. 411
Ersatzteile (27 Teile)
1
Filter, Saugleitung
2
O-RING/1A,P24
3
O-RING/1A,P26
4
BOLT,SP/M8X16
5
Leitung
6
O-RING/1A,P18
7
BOLT,S/M8X25
8
3652-355-001-10
9
J061-114-024-00
10
1342-402-006-00
11
Hydraulikpumpe
12
K130-003-100-00
13
K130-003-003-00
14
SEAL,OIL/TC15257
15
O-RING/1A,S56
16
KNOK
17
V201-260-804-00
18
WASHER,SP/M8
19
V211-260-806-00
20
CONNECTOR
21
O-RING/1A,S40
22
SUCTION/OUT COMP
23
O-RING/1A,P16
24
V210-260-601-60
25
ADAPTER/90DEG/PUMP
26
Schlauch
26A
Hydraulikschlauch
