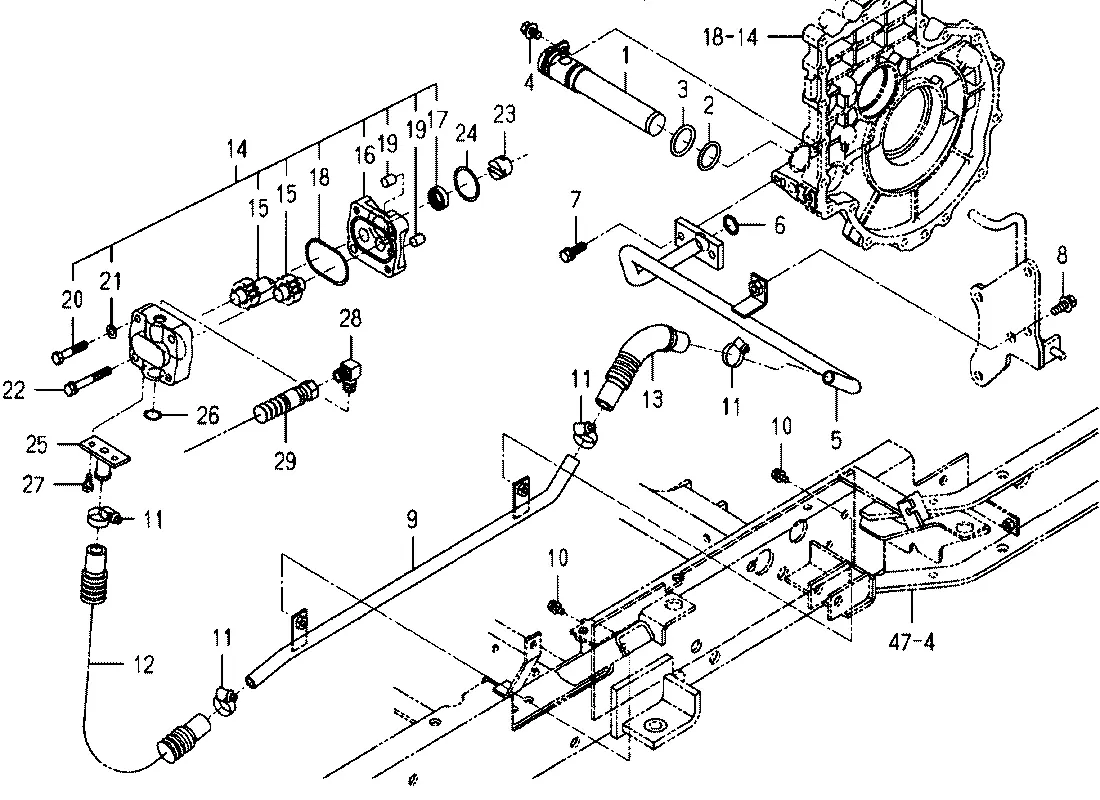

Hydr.Lenkung,Pumpe, Filter SGR17H
Ersatzteile (29 Teile)
1
Filter, Saugleitung
2
O-RING/1A,P24
3
O-RING/1A,P26
4
BOLT,SP/M8X16
5
1705-408-410-10
6
O-RING/1A,P18
7
BOLT,S/M8X25
8
BOLT,SP/M8X25
9
1705-408-430-00
10
BOLT,SP/M6X16
11
J061-114-024-00
12
1705-408-440-10
13
Schlauch
14
Hydraulikpumpe
15
K130-003-100-00
16
K130-003-003-00
17
SEAL,OIL/TC15257
18
O-RING/1A,S56
19
KNOK
20
V201-260-804-00
21
WASHER,SP/M8
22
V211-260-806-00
23
CONNECTOR
24
O-RING/1A,S40
25
SUCTION/OUT COMP
26
O-RING/1A,P16
27
V210-260-601-60
28
ADAPTER/90DEG/PUMP
29
Hydraulikschlauch
