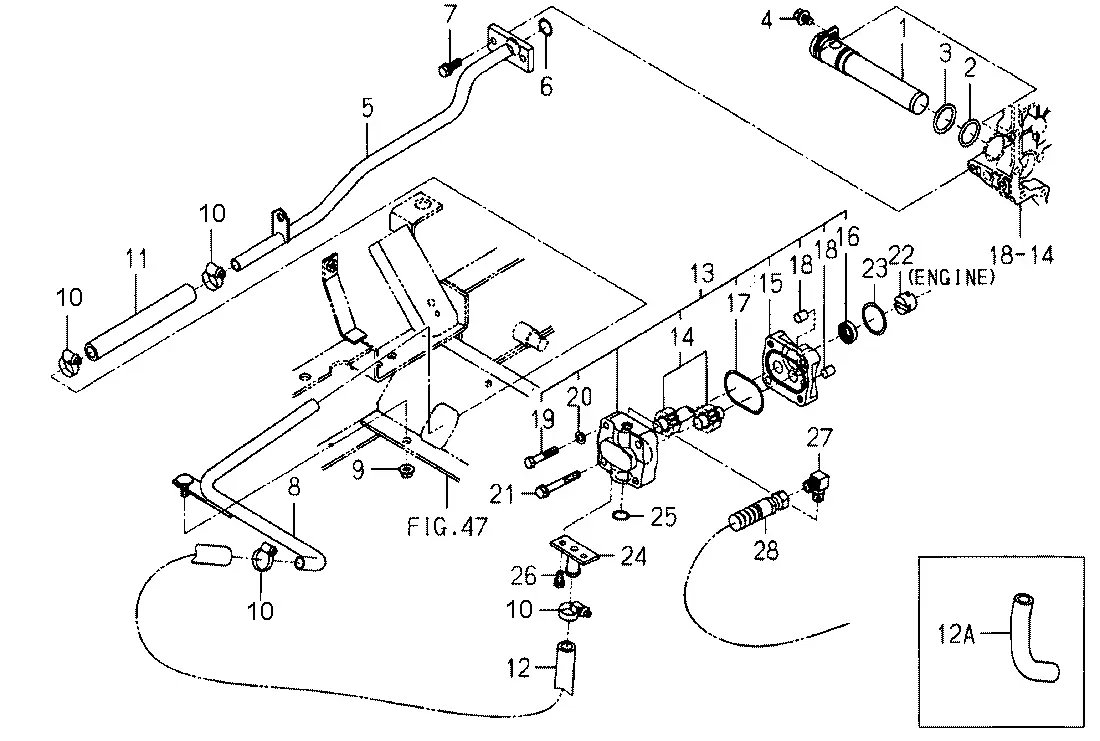

Hydr.Pumpe,Filter SGR17 ab Ser. Nr. 412
Ersatzteile (29 Teile)
1
Filter, Saugleitung
2
O-RING/1A,P24
3
O-RING/1A,P26
4
BOLT,SP/M8X16
5
Leitung
6
O-RING/1A,P18
7
BOLT,S/M8X25
8
1705-408-330-00
9
Kombimutter-M8
10
J061-114-024-00
11
1705-408-004-00
12
1705-408-005-00
12A
1705-408-006-00
13
Hydraulikpumpe
14
K130-003-100-00
15
K130-003-003-00
16
SEAL,OIL/TC15257
17
O-RING/1A,S56
18
KNOK
19
V201-260-804-00
20
WASHER,SP/M8
21
V211-260-806-00
22
CONNECTOR
23
O-RING/1A,S40
24
SUCTION/OUT COMP
25
O-RING/1A,P16
26
V210-260-601-60
27
ADAPTER/90DEG/PUMP
28
Hydraulikschlauch
