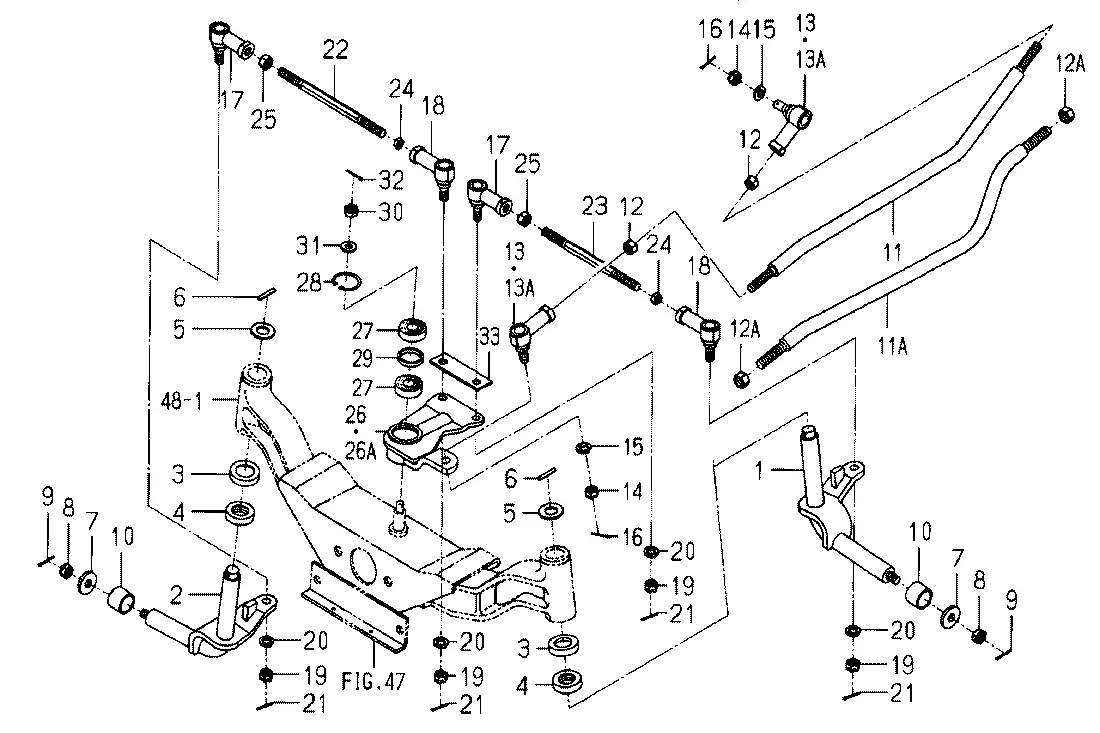

Achsschenkel,Spurstangen SGR17 P-Type
Ersatzteile (36 Teile)
1
Achsschenkel, li
2
Achsschenkel, re
3
COVER/44X10
4
THRUST
5
WASHER,PL/M18
6
PIN,SPRING/5X32 W
7
WASHER,PULLEY
8
NUT,CASTLE/M12 P1.25
9
PIN,SPLIT/3X25
10
COLLAR/26X32X24
11
Schubstange Umbaus. best. aus: 1x1705-435-2200-0
11A
Schubstange
12
NUT/M12
13
JOINT,BALL
13A
Kugelgelenk, Schubstange (NEU)
14
NUT,CASTLE/M12 P1.25
15
WASHER,SP/M12
16
PIN,SPLIT/3X25
17
JOINT,BALL
18
JOINT/BALL ASSY
19
NUT,CASTLE/M12 P1.25
20
WASHER,SP/M12
21
PIN,SPLIT/2.5X20
22
Spurstange 216mm
23
Spurstange 194mm
24
Mutter M12 li
25
NUT/M12
26
Arm
26A
Arm
27
V600-150-620-30
28
RING,SNAP/40 C
29
Buchse
30
NUT,CASTLE/M10 P1.25
31
Scheibe
32
PIN,SPLIT/2.5X20
33
Platte
