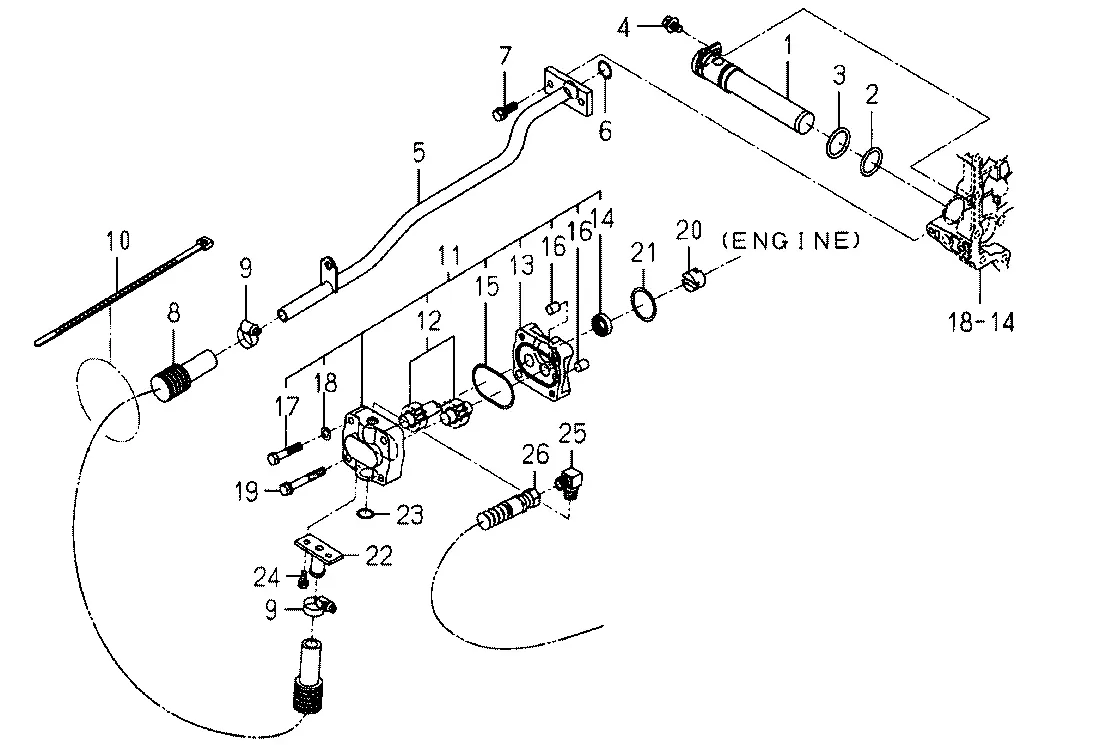

Hydraulik-Leitungen SGR17 (P Type)
Ersatzteile (45 Teile)
1
Filter, Saugleitung
2
O-RING/1A,P24
3
O-RING/1A,P26
4
BOLT,SP/M8X16
5
Leitung
6
O-RING/1A,P18
7
BOLT,S/M8X25
8
3652-355-001-10
9
J061-114-024-00
10
1342-402-006-00
11
Hydraulikpumpe
12
K130-003-100-00
13
K130-003-003-00
14
SEAL,OIL/TC15257
15
O-RING/1A,S56
16
KNOK
17
V201-260-804-00
18
WASHER,SP/M8
19
V211-260-806-00
20
CONNECTOR
21
O-RING/1A,S40
22
SUCTION/OUT COMP
23
O-RING/1A,P16
24
V210-260-601-60
25
ADAPTER/90DEG/PUMP
26
Hydraulikschlauch
27
ADAPTER/L/G1/4 ASSY
28
O-RING/1B,P11
29
1342-402-006-00
30
Überdruckventil
31
Ventil (NML)
32
O-RING/1B,P16
33
V201-260-807-50
34
WASHER,SP/M8
35
1705-508-004-00
35A
1705-508-230-00
36
Einschraubstück
36A
3817-374-330-00
37
O-RING/1B,P14
38
1705-508-005-00
38A
1705-508-240-00
39
Einschraubstück
39A
ADAPTER/PF1/4 ASSY
40
O-RING/1B,P14
40A
O-RING/1B,P11
