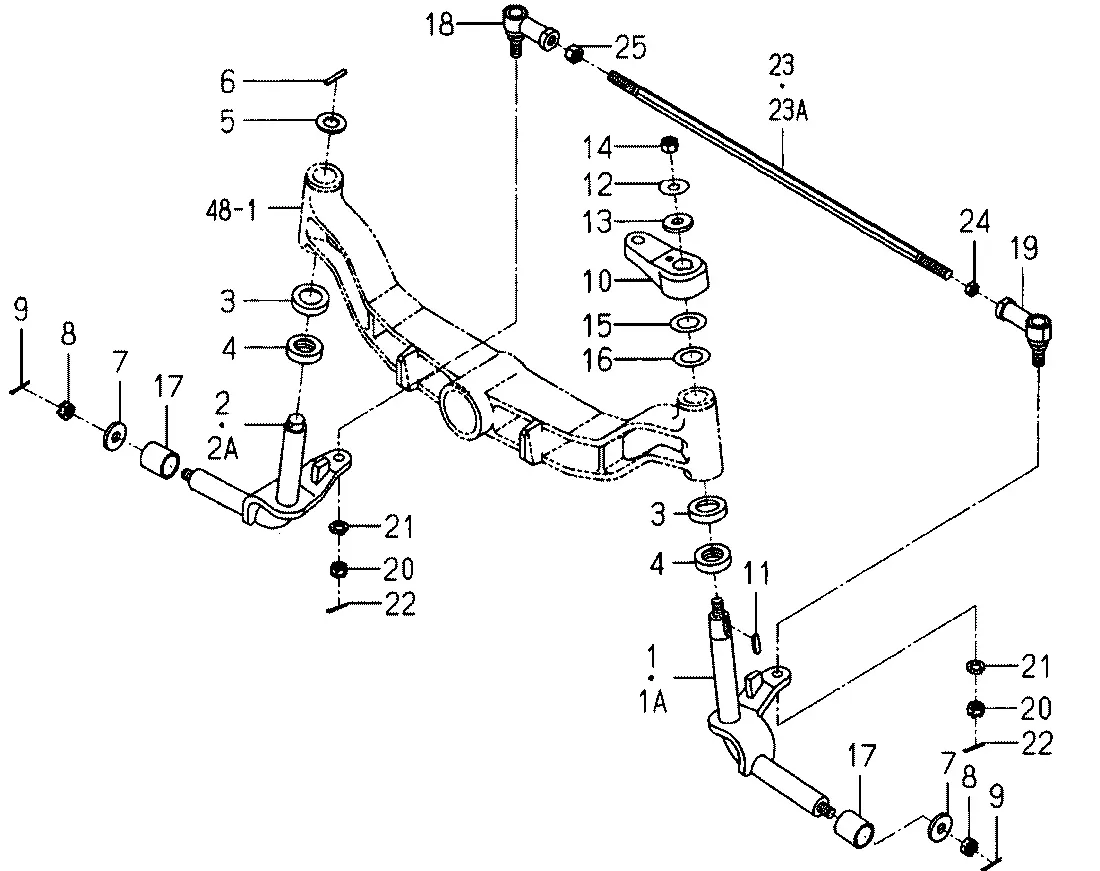

Achsschenkel,Spurstangen SGR17H u.U Type
Ersatzteile (28 Teile)
1
1705-434-210-10
1A
Achsschenkel, li
2
1705-434-220-10
2A
Achsschenkel, re (17)AB S/N412,(19)AB S/N519
3
COVER/44X10
4
THRUST
5
WASHER,PL/M18
6
PIN,SPRING/5X32 W
7
WASHER,PULLEY
8
NUT,CASTLE/M12 P1.25
9
PIN,SPLIT/3X25
10
Lenkhebel
11
KEY,ROTARY TOP SHAFT
12
WASHER,LOCK/M12
13
WASHER/13X35X5
14
NUT/M12
15
SHIM,A/0.5
16
SHIM,A/1.0
17
Buchse 26x32x34
18
JOINT,BALL
19
JOINT/BALL ASSY
20
NUT,CASTLE/M12 P1.25
21
WASHER,SP/M12
22
PIN,SPLIT/2.5X20
23
Spurstange 575mm
23A
1705-436-003-10
24
Mutter M12 li
25
NUT/M12
