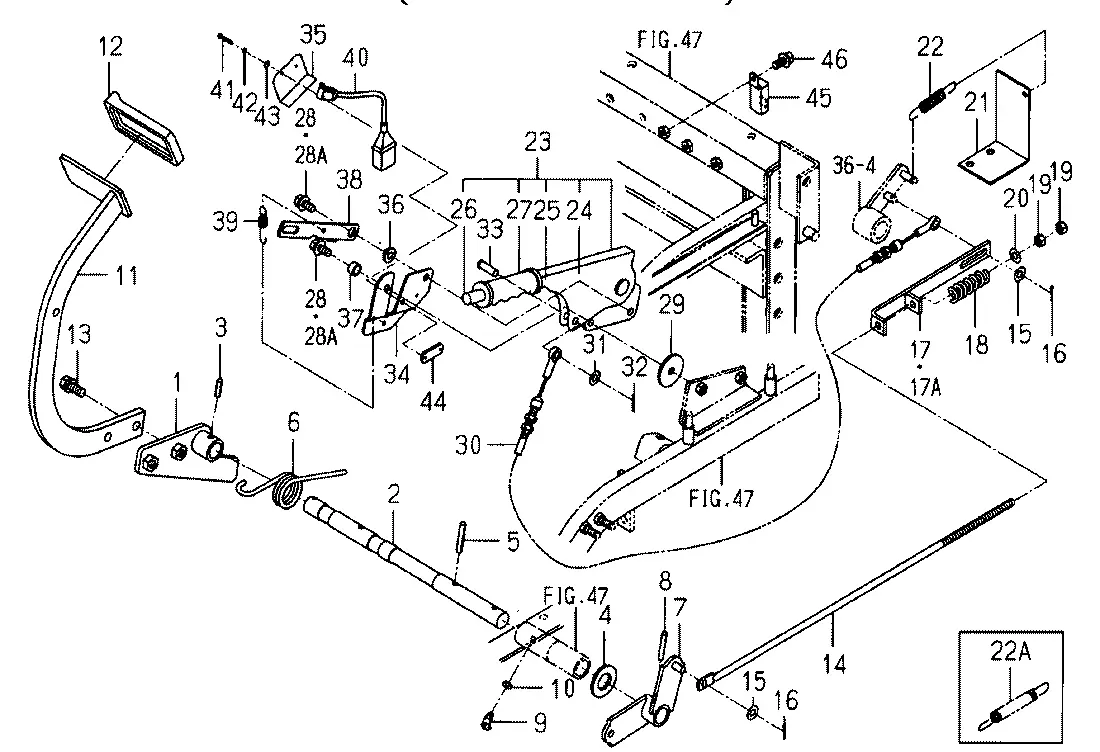

Bremspedal,Gestänge SGR17
Ersatzteile (49 Teile)
1
1705-312-210-00
2
1705-312-002-00
3
1480-304-002-00
4
WASHER,PL/M20
5
V580-140-604-00
6
Feder
7
Bremshebel
8
PIN
9
V762-150-000-00
10
V401-160-006-00
11
PEDAL/BRAKE COMP
12
PAD
13
V211-261-002-50
14
Bremsstange 8x525
15
WASHER,PL/M8
16
PIN,SPLIT/2.5X15
17
Platte
17A
1705-312-240-10
18
Feder
19
NUT/M8
20
WASHER,PL/M8
21
1705-312-005-00
22
Feder
22A
Feder
23
1442-313-200-10
24
ROD
25
SPRING
26
BUTTON
27
Griff
28
BOLT,SP/M8X20
28A
V211-360-803-00
29
1488-607-003-00
30
Bowdenzug, Feststellbremse
31
WASHER,PL/M8
32
PIN,SPLIT/2X20
33
PIN/08X25
34
1705-313-004-00
35
1705-313-005-00
36
Buchse
37
Buchse 9x14x8
38
Hebel
39
SPRING,TENSION/53
40
SWITCH,MERIT
41
SCREW/M3X20
42
WASHER,SP/M3
43
V411-260-003-00
44
Platte
45
RELAY/4P ASSY
46
BOLT,SP/M6X16
