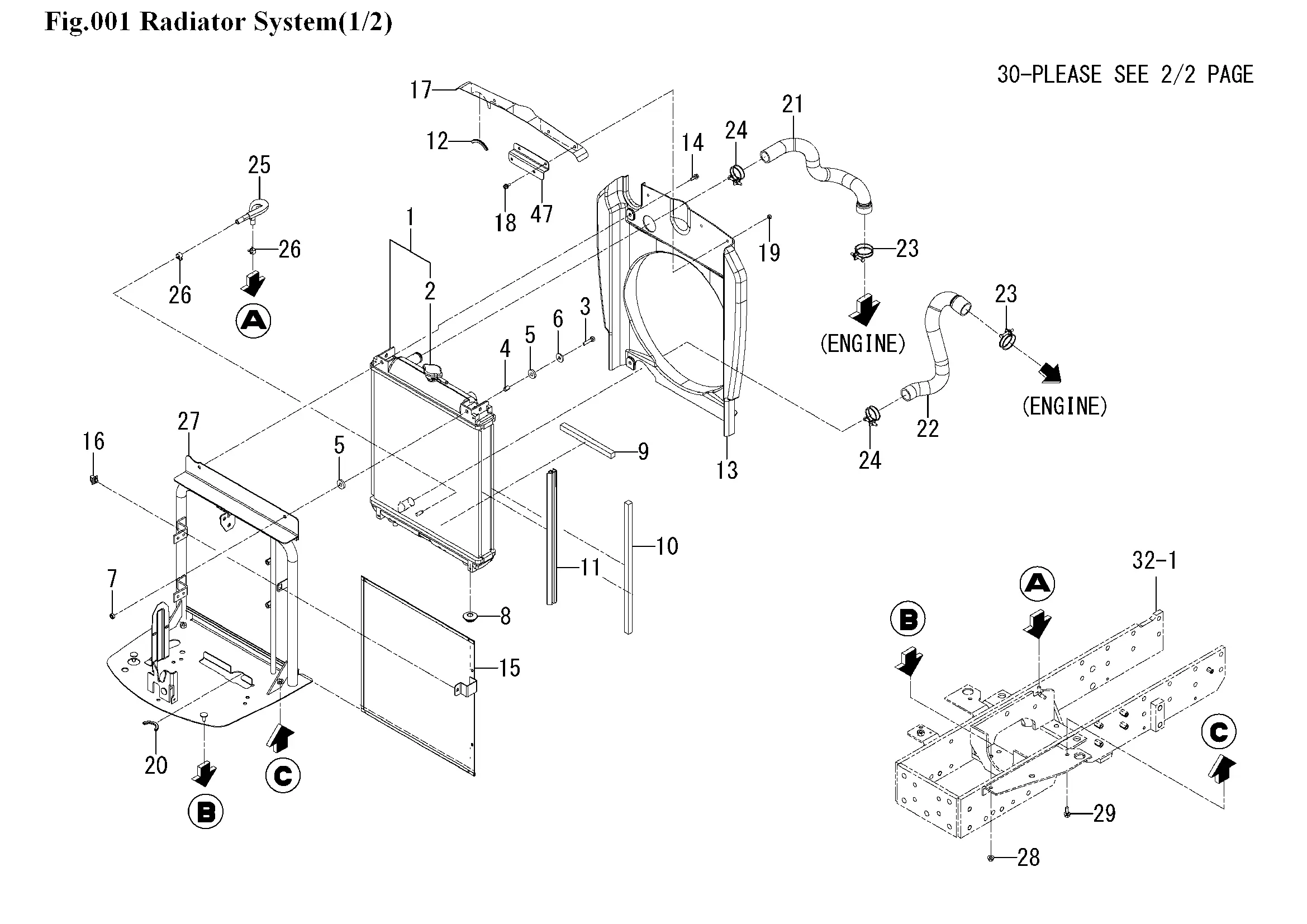

Kühler
Ersatzteile (47 Teile)
1
RADIATOR ASSY
2
CAP
3
V201-260-803-00
4
1824-102-004-00
5
CUSHION/RUBBER/10X25
6
WASHER/24X9X3.2
7
1746-817-001-00
8
BUSH,LEVER
9
INSULATOR/15X15X190
10
INSULATOR
11
1824-102-007-00
12
1824-102-008-00
13
SHROUD/400
14
V210-660-602-00
15
1824-102-280-00
16
LATCH ASSY
17
1824-102-005-00
18
BOLT/SP
19
V301-260-006-00
20
1824-102-008-00
21
HOSE/RADIATOR/INLET
22
HOSE/RADIATOR/OUTLET
23
CLAMP/WIRE/36-44
24
J061-230-038-00
25
HOSE/08X15X220 ASSY
26
J062-138-148-00
27
1834-102-220-00
28
1746-816-001-00
29
FLANGEBOLT
30
1821-630-003-00
31
1834-102-270-00
32
1837-102-009-00
33
1746-817-001-00
34
WASHER/9X22X2
35
1813-102-005-00
36
1833-102-062-00
37
CUSHION/RUBBER/10X25
38
PIN/SNAP
39
Stift, Öffner Motorhaube
40
RESERVETANK ASSY
41
CAP
42
PACKING
43
1690-102-214-00
44
1690-102-215-00
45
1690-102-216-00
46
HOSE/RUBBER
47
1834-102-240-10
