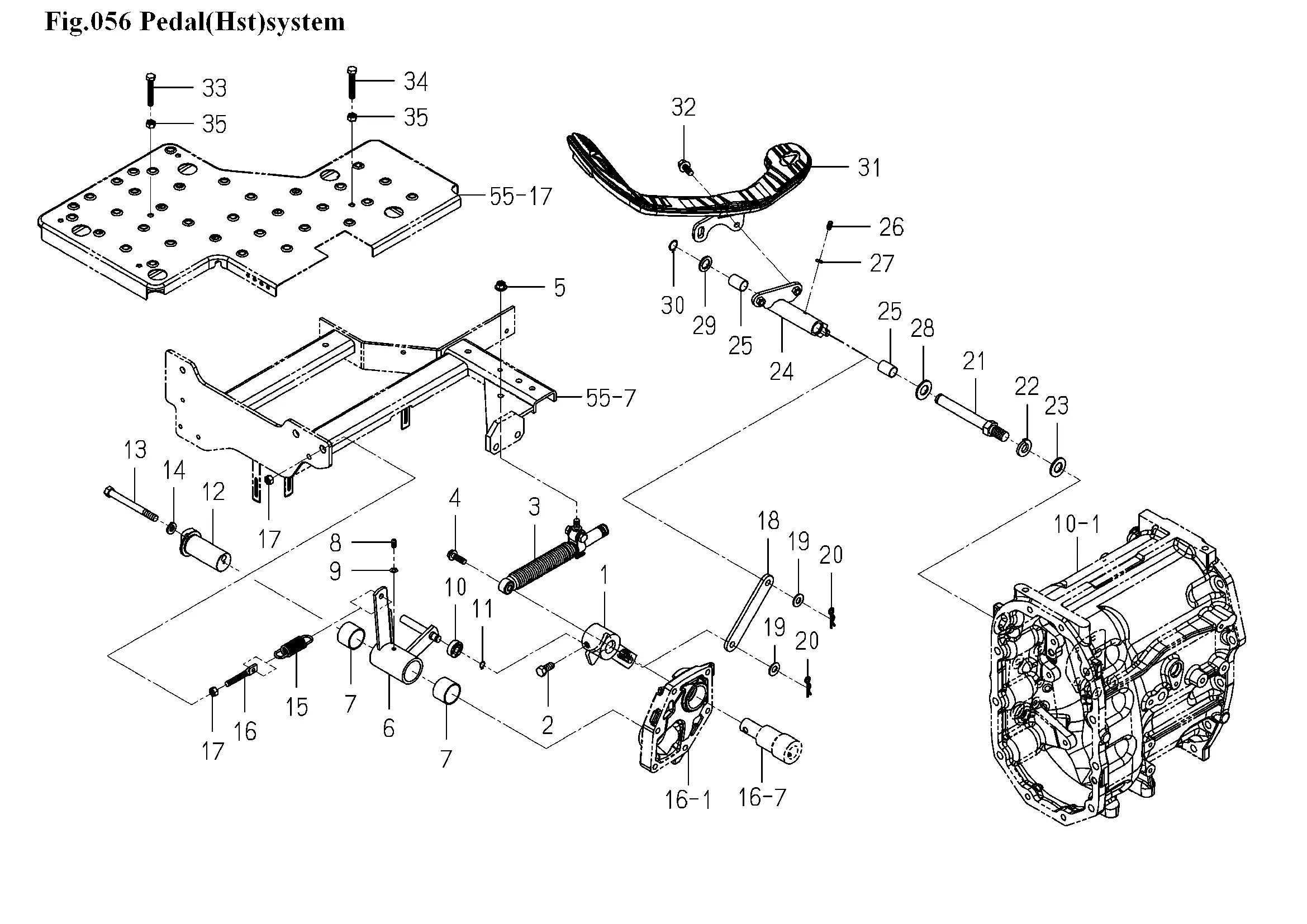

Pedal HST
Ersatzteile (35 Teile)
1
ARM/TRUNNION COMP
2
BOLT/SM/M10X23
3
DUMPER/OIL ASSY
4
FLANGEBOLT/M8X25
5
Kombimutter-M8
6
1834-640-520-00
7
1646-640-221-10
8
NIPPLE,GREASE
9
V401-160-006-00
10
BEARING,RB/6000SS
11
RING,SNAP/10 C
12
PIN/ADJUST
13
V201-361-010-00
14
WASHER,SP/M10
15
SPRING
16
ROD/08X057
17
NUT/M8
18
1834-640-055-00
19
V411-260-010-00
20
PIN,HAIR
21
PIN/M16
22
V402-160-016-00
23
V411-260-016-00
24
1834-640-560-00
25
1656-664-221-10
26
NIPPLE,GREASE
27
V401-160-006-00
28
V411-260-016-00
29
1834-640-054-00
30
RING,SNAP/16 C
31
PEDAL/HST ASSY
32
BOLT,SP/M8X25/7T
33
BOLT/M 8X50
34
BOLT/M 8X50
35
NUT/M8
