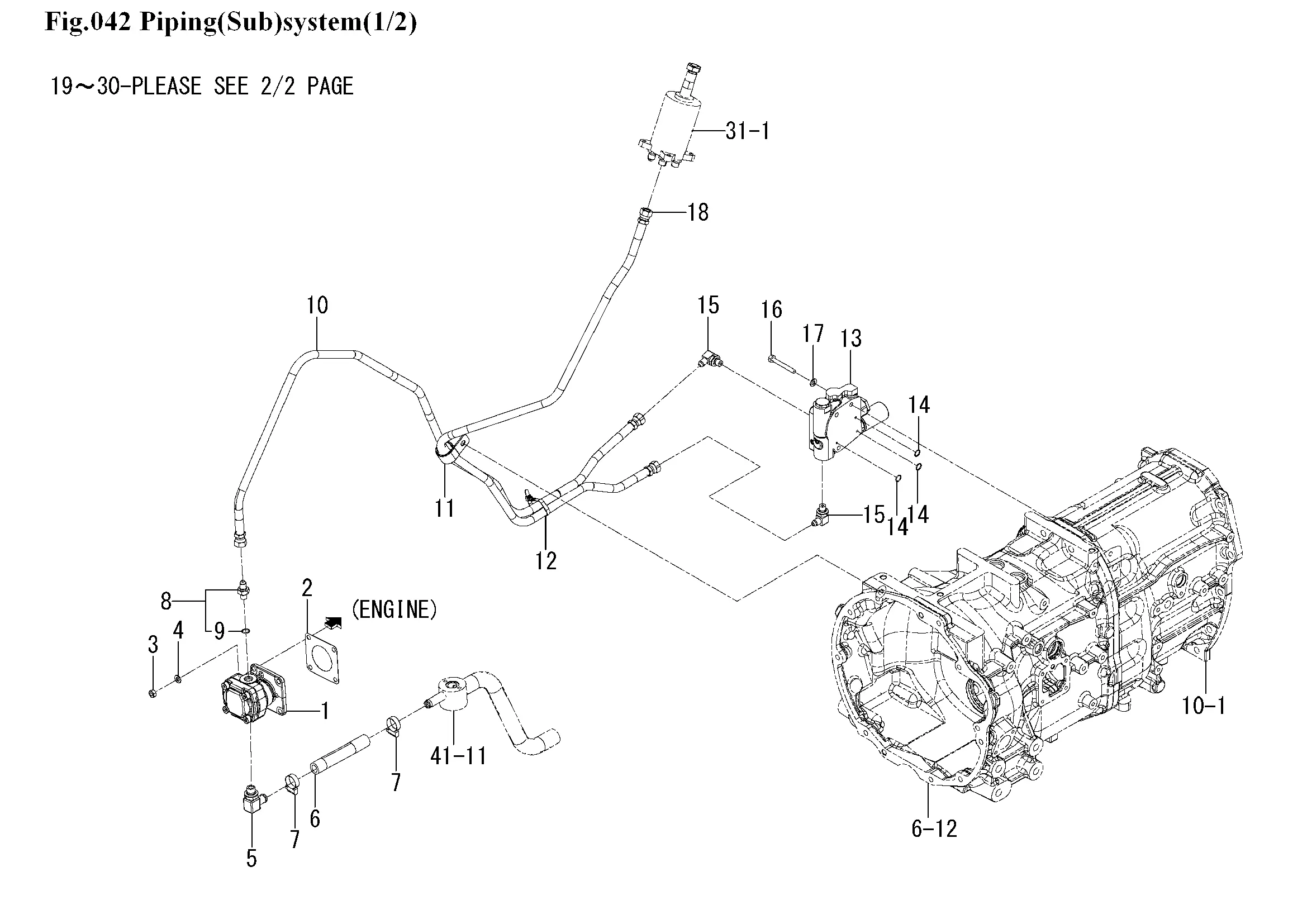

Hydraulikfilter, -Leitungen
Ersatzteile (49 Teile)
1
PUMP/GEAR/5.2/R ASSY
2
PACKING,OIL PUMP
3
NUT/M8
4
WASHER,SP/M8
5
1999-509-630-00
6
1834-509-001-00
7
J061-116-025-00
8
ADAPTER/G1/4 ASSY
9
O-RING/1B,P11
10
1805-407-210-30
11
CLIP B
12
BAND,WIRE/140
13
VALVE/INDEPENDENT
14
O-RING/1B,P10A
15
1999-509-510-00
16
BOLT/M8XX55
17
WASHER,SP/M8
18
1834-509-210-10
19
1834-509-220-10
20
CLAMP,RADIATOR HOSE
21
FLANGEBOLT/M8X16
22
BAND,WIRE/140
23
COOLER/OIL ASSY
24
1746-804-003-00
25
1999-509-610-00
26
1999-509-580-00
27
ADAPTER/G1/4 ASSY
28
O-RING/1B,P11
29
VALVE/CHECK ASSY
30
O-RING/1B,P14
31
1999-509-550-00
32
PIPE/CHECKVALVE COMP
33
1999-509-540-00
34
1999-509-520-00
35
1821-509-053-00
36
1834-509-230-10
37
1440-105-006-00
38
FLANGEBOLT/M8X16
39
1999-509-003-00
40
FILTER/OIL ASSY
41
Hydraulikfilter
42
1999-509-003-00
43
FLANGEBOLT/M8X16
44
1805-509-051-00
45
FLANGEBOLT/M8X16
46
HOSE/500 ASSY
47
1999-508-370-00
48
1440-105-006-00
49
FLANGEBOLT/M8X16
