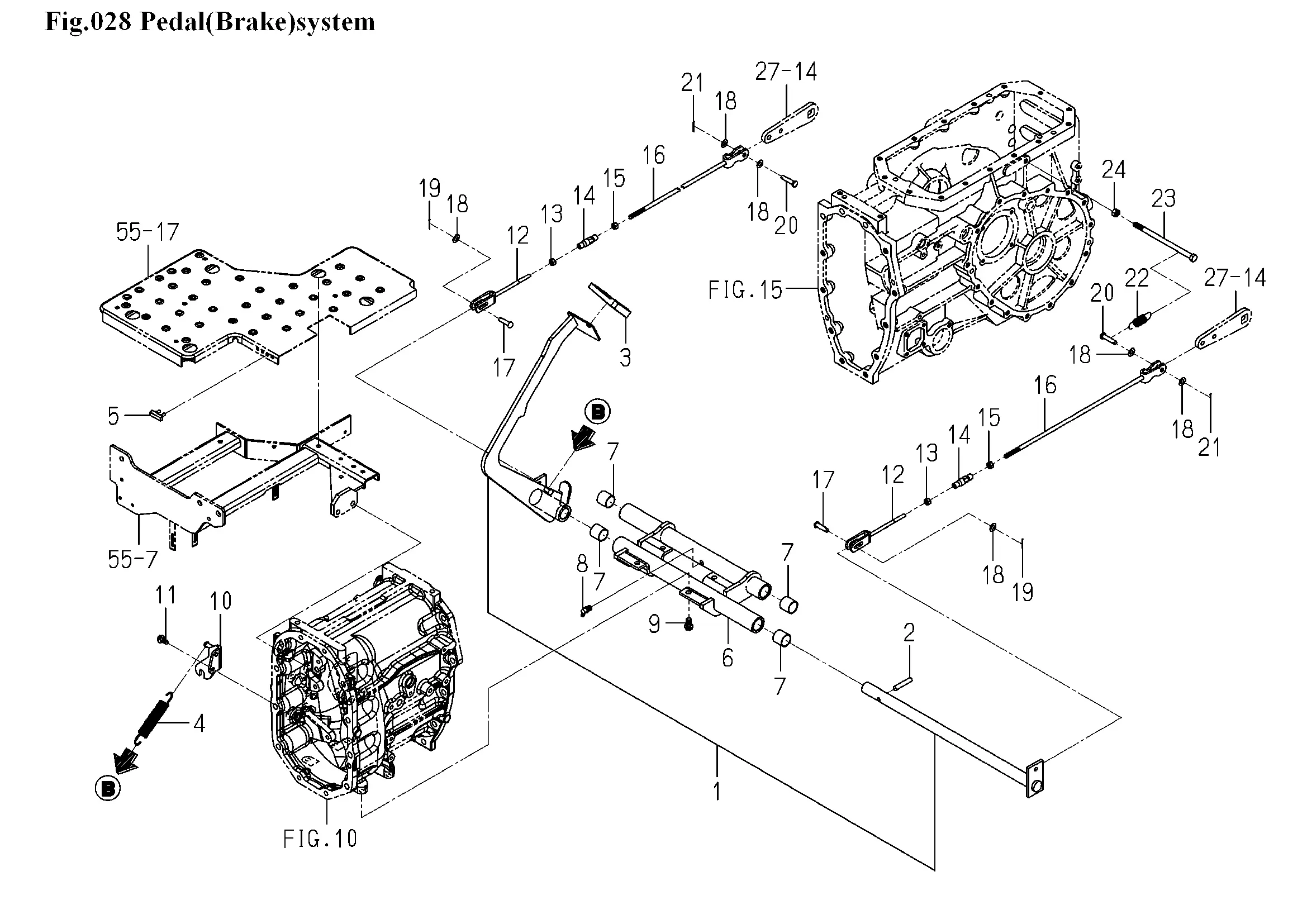

Pedal, Bremse
Ersatzteile (24 Teile)
1
1834-312-560-00
2
PIN,TAPER/8X50
3
PAD
4
SPRING/HE108
5
INSULATOR
6
1834-312-610-10
7
BUSH/25X28X25
8
NIPPLE,GREASE/PT1/8
9
BOLT,S/M10X20/7T
10
1834-312-600-00
11
FLANGEBOLT/M8X16
12
1813-312-600-00
13
NUT/LH/M08
14
TURNBUCKLE/M8
15
NUT/M8
16
1773-312-260-10
17
PIN,YOKE A
18
WASHER,PL/M8
19
PIN,SPLIT/2X20
20
PIN/8X36
21
PIN,SPLIT/2.5X20
22
SPRING/HE066
23
V201-261-017-00
24
NUT/M10
